System Diagram

WARNING: This page is about a different variant/trim than selected.

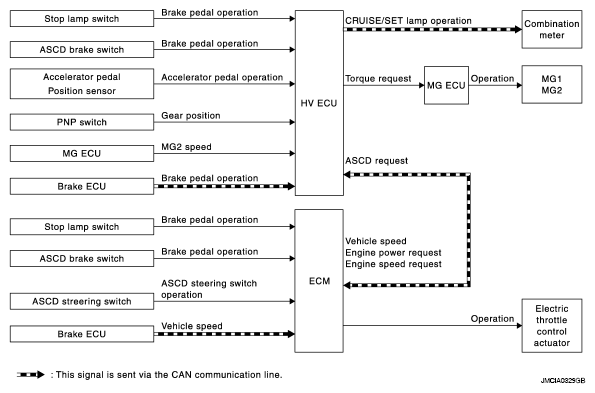

Fig 1: Automatic Speed Control Device (ASCD) - System Diagram
G05912253Courtesy of NISSAN MOTOR CO., U.S.A.
