REMOTE KEYLESS ENTRY FUNCTION : Component Parts Location

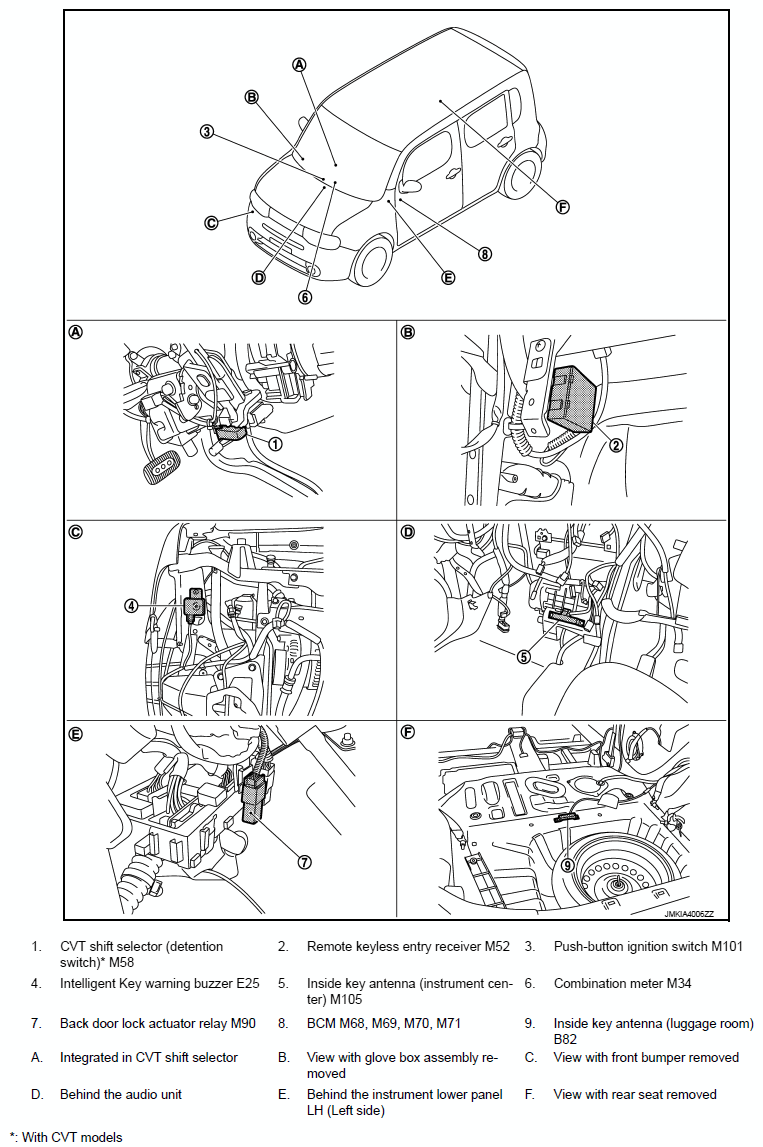

Fig 1: Identifying Door Lock, Intelligent Key System, Key Reminder, Remote Keyless Entry, And Warning Function Component Parts Location (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

For BCM M68, M69, M70, M71, refer to REMOVAL AND INSTALLATION .

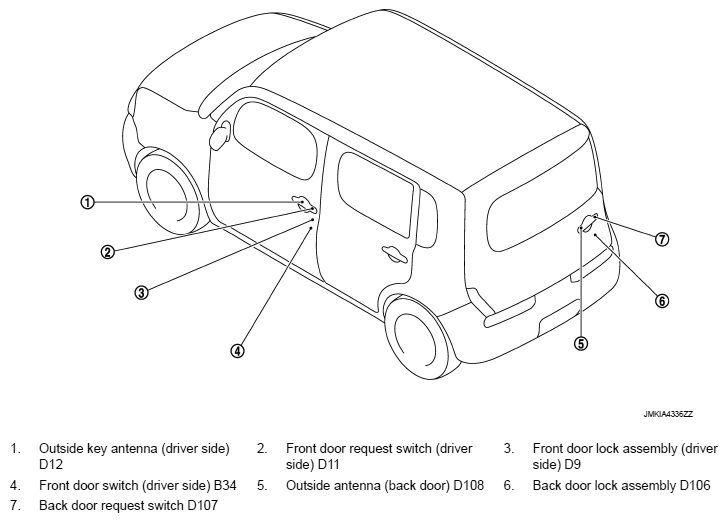

Fig 2: Identifying Door Lock, Intelligent Key System, Key Reminder, Remote Keyless Entry, And Warning Function Component Parts Location (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
