Driver Air Bag Module Connector End View (M350)

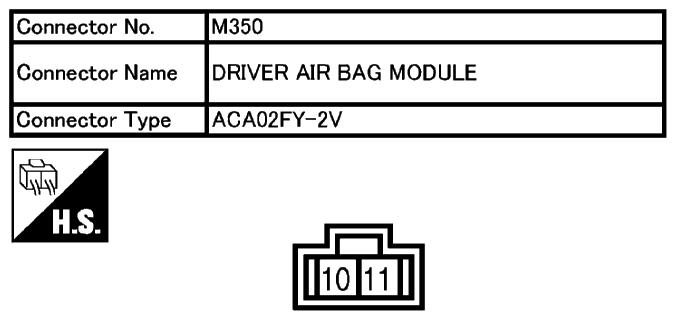

Fig 1: Driver Air Bag Module Connector End View (M350)
G10616978Courtesy of NISSAN NORTH AMERICA, INC.
