Component Parts Location

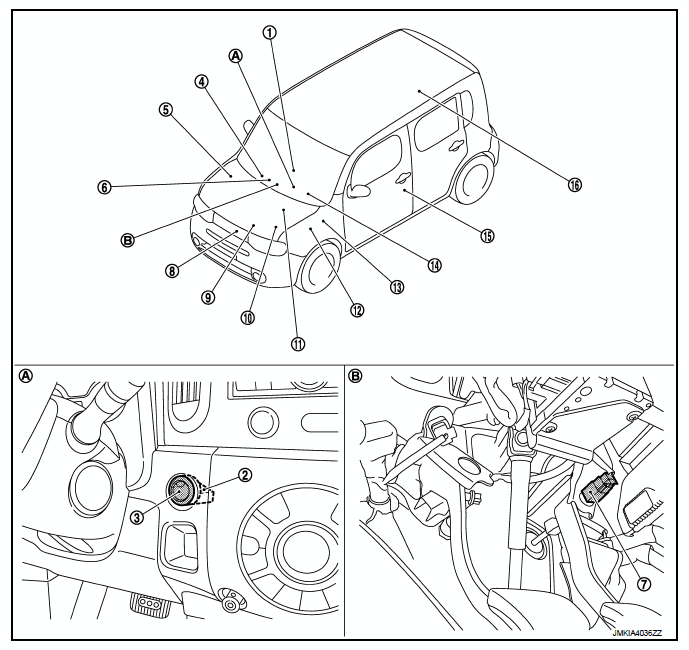

Fig 1: Identifying Key And Engine Start, Nissan Vehicle Immobilizer System, And Vehicle Security System Component Location
KEY AND ENGINE START COMPONENT LOCATION TABLE
| 1. | CVT shift selector (detention switch) M58 | 2. | NATS antenna amp. M26 | 3. | Push-button ignition switch M101 |
| 4. | Remote keyless entry receiver M52 Refer to INTELLIGENT KEY SYSTEM : COMPONENT PARTS LOCATION |
5. | ABS actuator and electric unit (control unit) E36 Refer to COMPONENT PARTS LOCATION |
6. | Inside key antenna (instrument center) M105 |
| 7. | Stop lamp switch E115 | 8. | Horn E50, E51 | 9. | Transmission range switch F21 |
| 10. | IPDM E/R E10, E11, E12, E13, E14, E15, E17 Refer to COMPONENT PARTS LOCATION |
11. | ECM E16 | 12. | TCM E18 |
| 13. | BCM M68, M69, M70, M71 Refer to COMPONENT PARTS LOCATION |
14. | Security indicator lamp (combination meter) M34 | 15. | Front door switch (driver side) B34 |
| 16. | Inside key antenna (luggage room) B82 | ||||
| A. | Behind push-button ignition switch | B. | Behind instrument lower cover LH | ||
