Exploded View

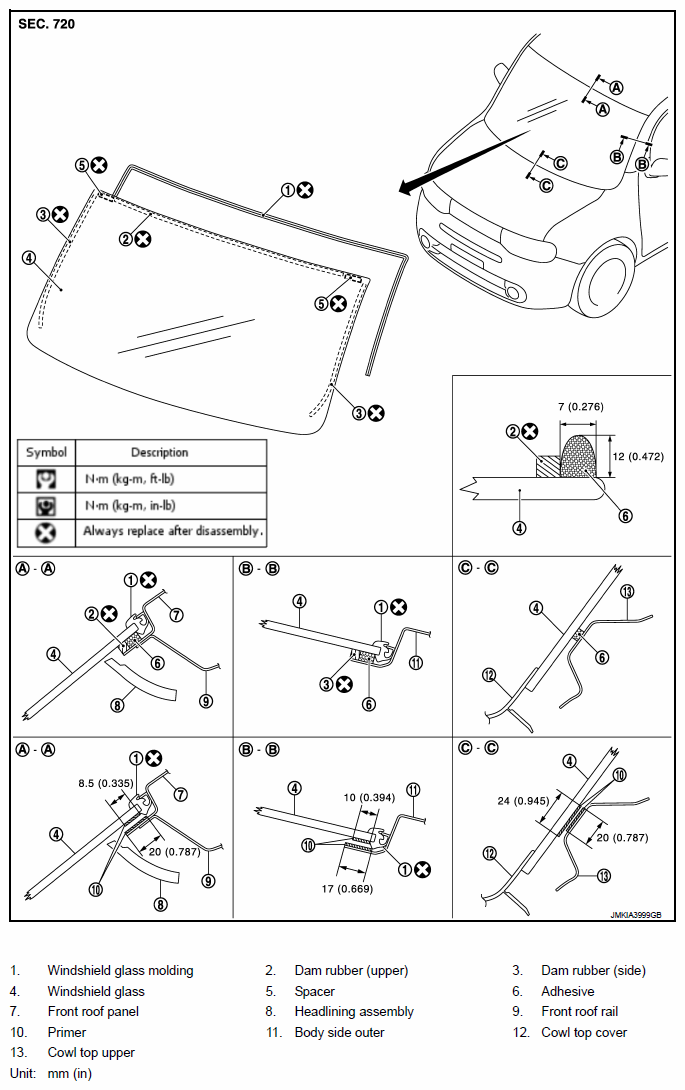

Fig 1: Exploded View Of Windshield Glass
G05916571Courtesy of NISSAN MOTOR CO., U.S.A.

Unit: mm (in)

Refer to "COMPONENTS " for symbols in the figure.
