Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Actuator And Eclectic Unit (E36) | Left rear of engine room. See Figure. |
| BCM (Body Control Module) (M67) | Left side of dash. See Figure. |
| ECM (E16) | Left rear of engine room. See Figure. |
| ESP Control Unit (M37) | Above steering column. See Figure. |
| IPDM E/R (Intelligent Power Distribution Module Engine Room) (E12) | Left side of engine room. See Figure. |
| IPS Control Unit (M38) | Above steering column. See Figure. |

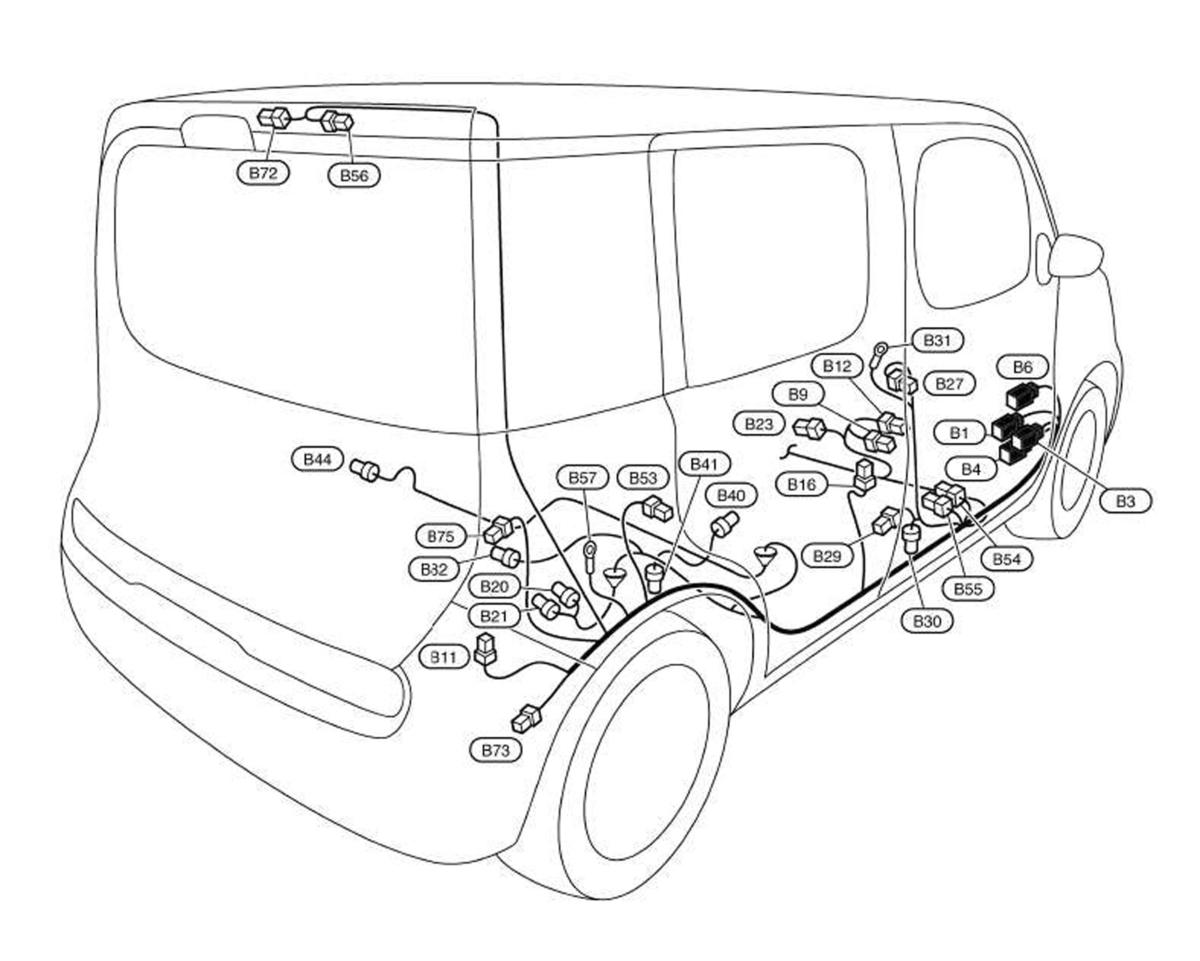

| Occupant Detection System Control Unit (B12) | Right side of body. See Figure. |

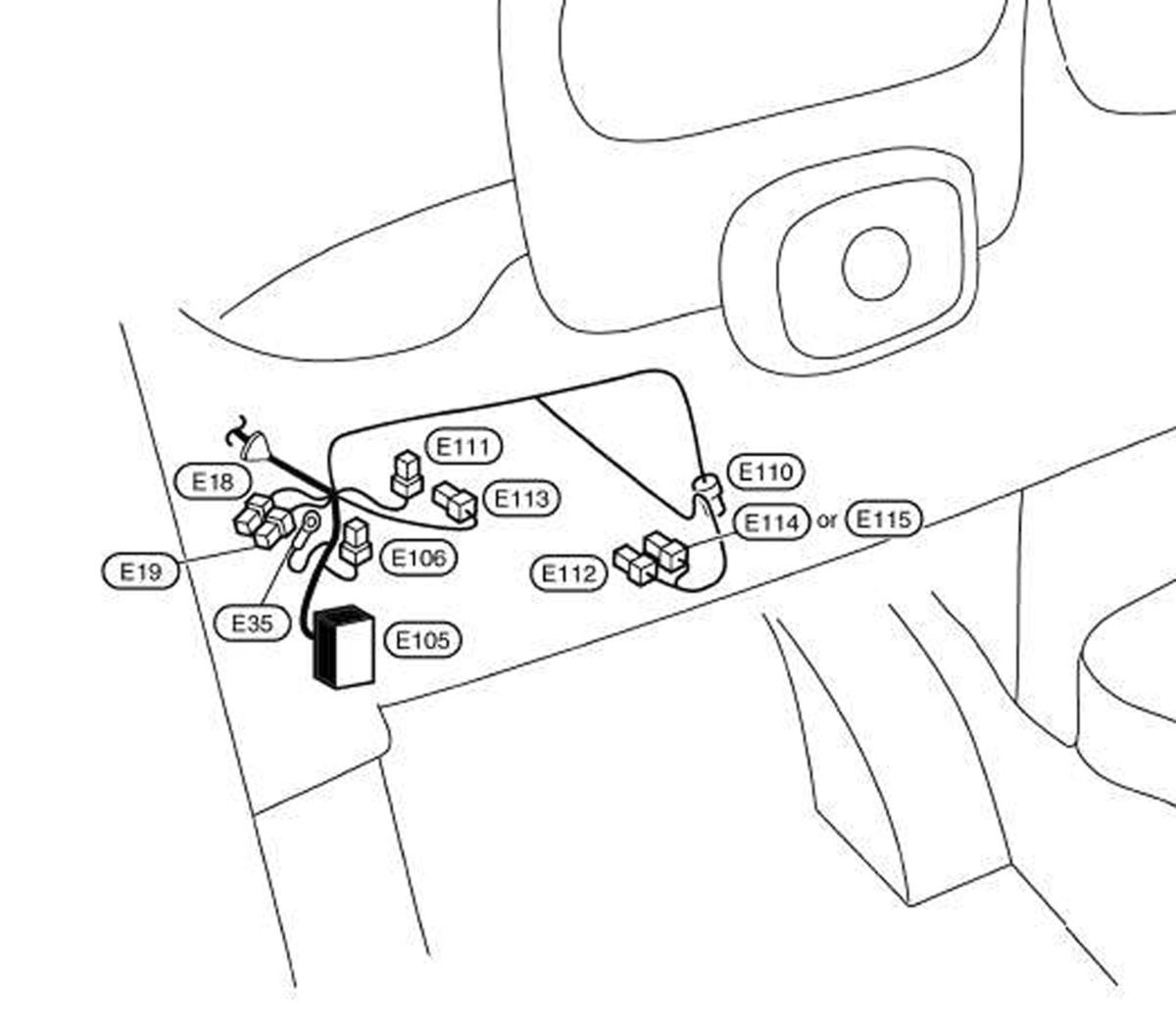

| TCM (Transmission Control Module W/CVT) (E18) | Left side of dash. See Figure. |
