Exploded View

WARNING: This page is about a different variant/trim than selected.

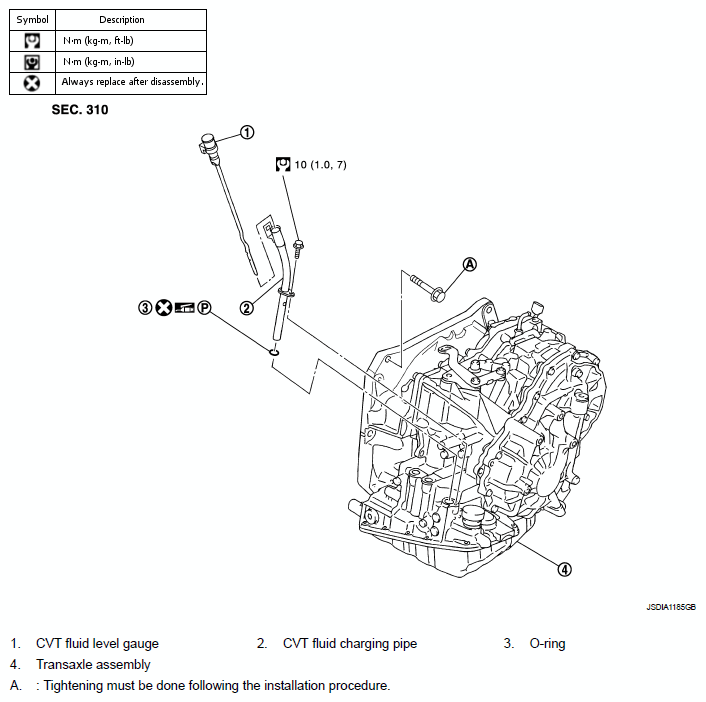

Fig 1: CVT Fluid Level Gauge, CVT Fluid Charging Pipe And O-Ring With Torque Specifications
G05915101Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
