MODELS WITHOUT iPod® CONNECTION FUNCTION

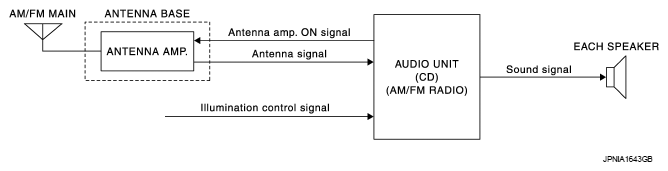

Fig 1: Audio System Diagram - Without iPod® Connection Function And Hands-Free Phone
G05918185Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: An antenna base integrated with radio antenna amp. is adopted.
iPod® is a trademark of Apple inc., registered in the U.S. and other countries.
