Occupant Detection System Control Unit Connector End View (B12)

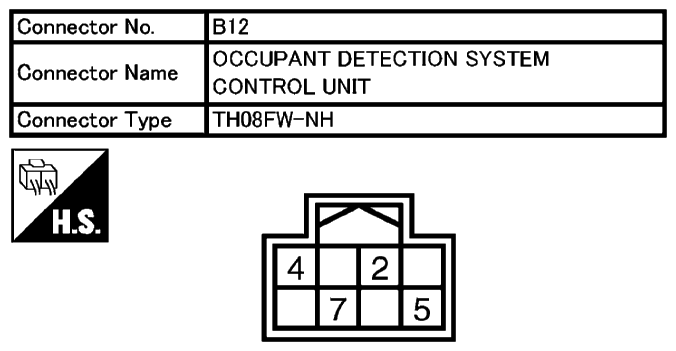

Fig 1: Occupant Detection System Control Unit Connector End View (B12)
G10616773Courtesy of NISSAN NORTH AMERICA, INC.
