Disassembly and Assembly: Notes

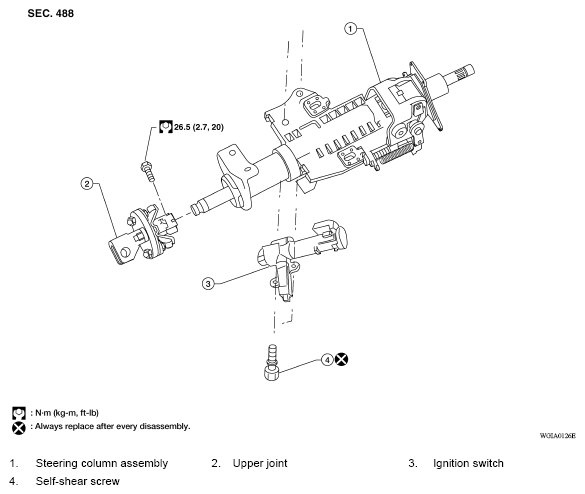

Fig 1: Identifying Steering Column Disassembly And Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
