Relay Locations: Notes
For relay locations refer to the component number or connector identification, refer to illustrations Fig 1 and Fig 7.
IDENTIFYING RELAYS LOCATION
| Component (No.)/(Connector ID.) | Location |
|---|---|

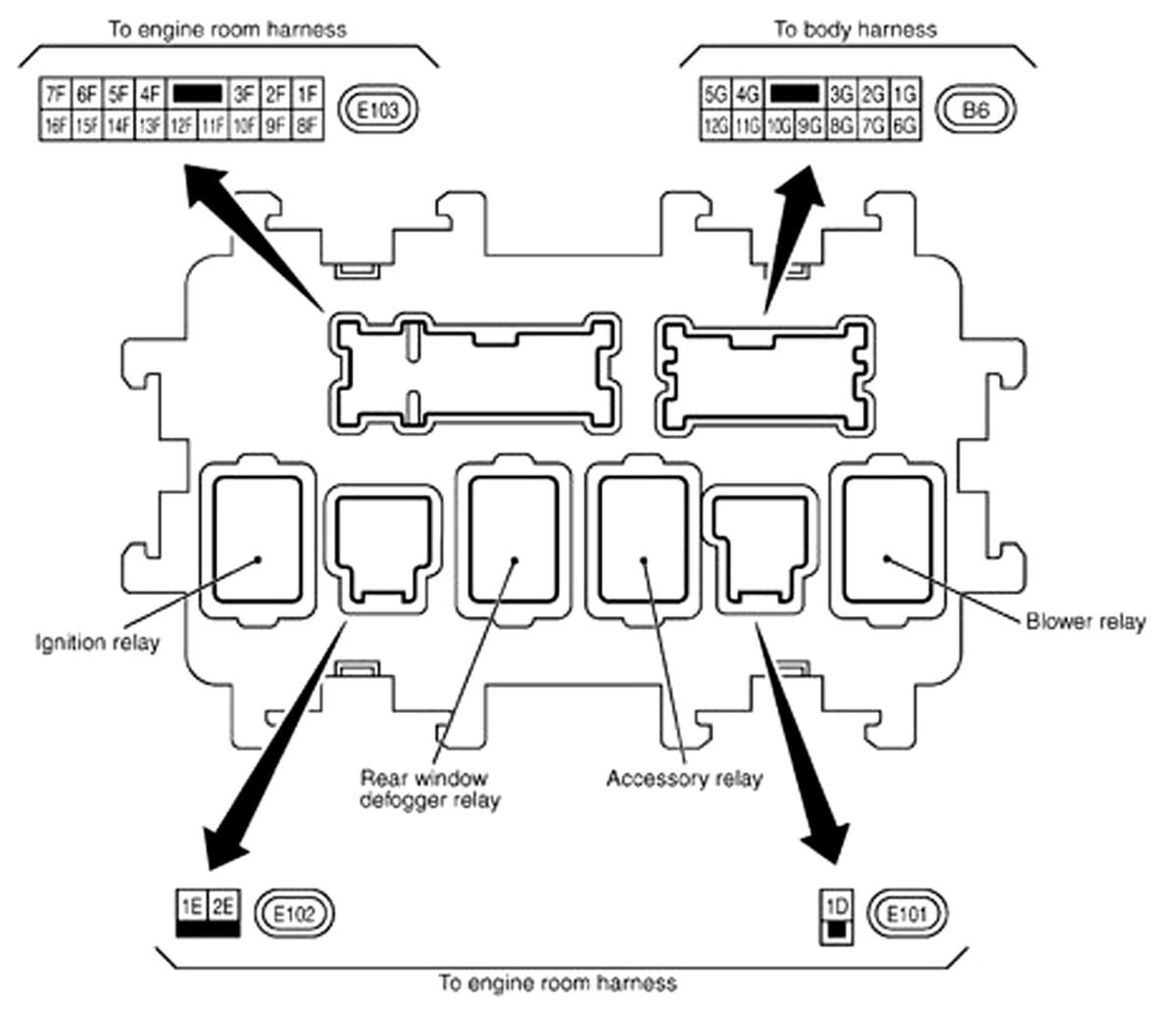

| Accessory Relay | In fuse block (J/B). See Fig 5. |
| Air Cut Solenoid Valve Relay (1) | In fuse & relay box. See Fig 1. |
| Air Pump Relay (37) | In fuse & relay box. See Fig 1. |
| Back-Up Light Relay (B55) | Left side of luggage compartment. See Fig 4. |
| Blower Relay | In fuse block (J/B). See Fig 5. |
| Cooling Fan Relay No. 1 (14) | Left rear of engine compartment. See Fig 1. |
| Cooling Fan Relay No. 2 (15) | Left rear of engine compartment. See Fig 1. |
| Daytime Light Relay (E84) | Right rear of engine compartment. See Fig 3. |
| Heated Seat Relay (M70) | Center of dash. See Fig 2. |
| Horn Relay 1 (E11) | On fuse, fusible link & relay block. See Fig 6. |
| Horn Relay 2 (E18) | Left rear of engine compartment. See Fig 3. |
| Ignition Relay | In fuse block (J/B). See Fig 5. |
| Intelligent Key Warning Buzzer (E/R) (E62) | Right front of engine compartment. See Fig 3. |
| Rear Window Defogger Relay | In fuse block (J/B). See Fig 5. |

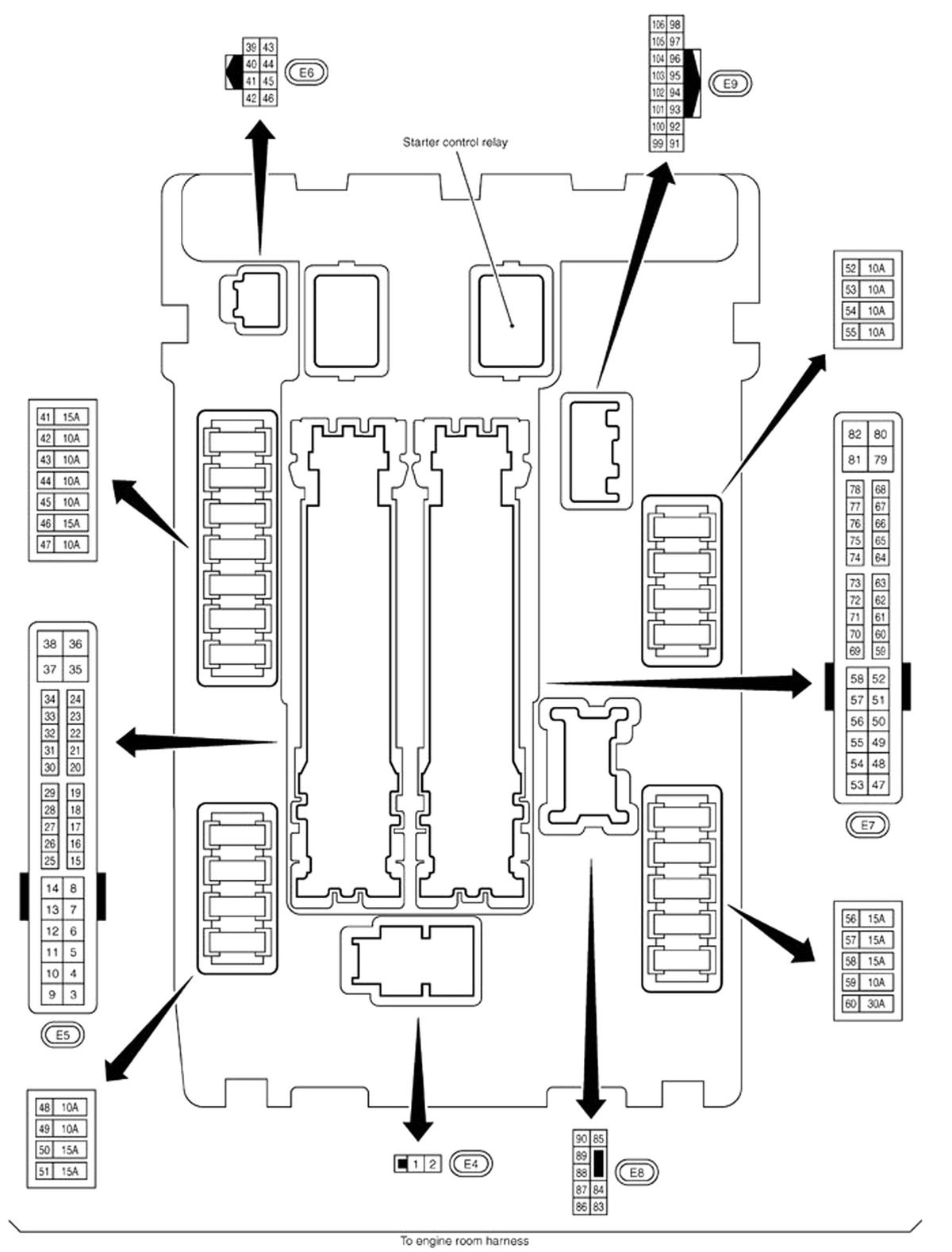

| Starter Control Relay | In IPDM E/R. See Fig 7. |
| TCM Relay (B54) | Left side of luggage compartment. See Fig 4. |
NOTE:
For approximate component location, match connector identification with connector location within the wiring harness illustrations.
