Diagnosis Procedure

1. Turn ignition switch OFF.
2. Remove the intake air duct.
3. Check if foreign matter is caught between the throttle valve (1) and the housing.

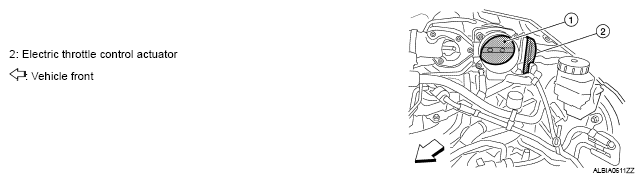

Fig 1: Identifying Throttle Valve And Electric Throttle Control Actuator

Courtesy of NISSAN MOTOR CO., U.S.A.

Is the inspection result normal?

YES: GO TO 2.

NO: Remove the foreign matter and clean the electric throttle control actuator inside.

1. Replace electric throttle control actuator.
2. Go to "SPECIAL REPAIR REQUIREMENT ".

: INSPECTION END
