Component Parts Location

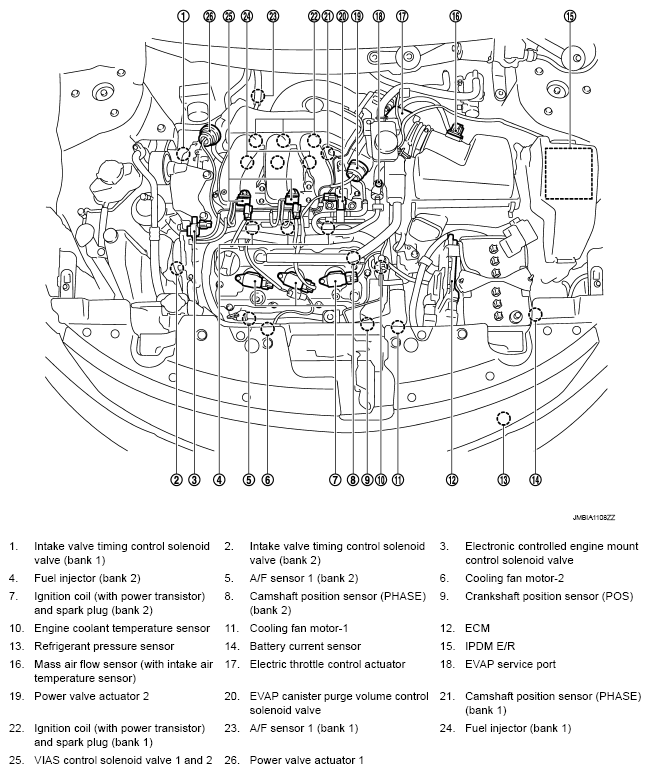

Fig 1: Identifying Automatic Speed Control Device (ASCD) System Components Location (1 Of 15)
G05886810Courtesy of NISSAN MOTOR CO., U.S.A.

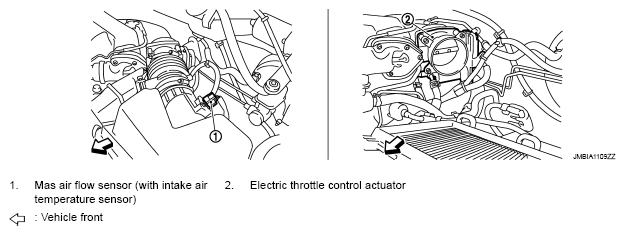

Fig 2: Identifying Automatic Speed Control Device (ASCD) System Components Location (2 Of 15)
G05886811Courtesy of NISSAN MOTOR CO., U.S.A.

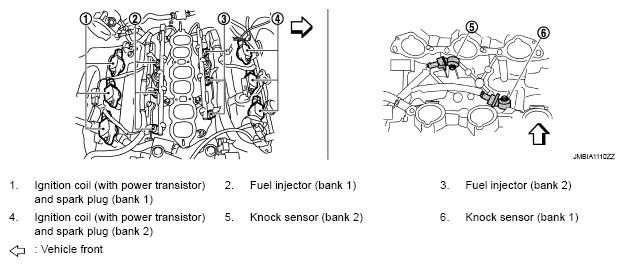

Fig 3: Identifying Automatic Speed Control Device (ASCD) System Components Location (3 Of 15)
G05886812Courtesy of NISSAN MOTOR CO., U.S.A.

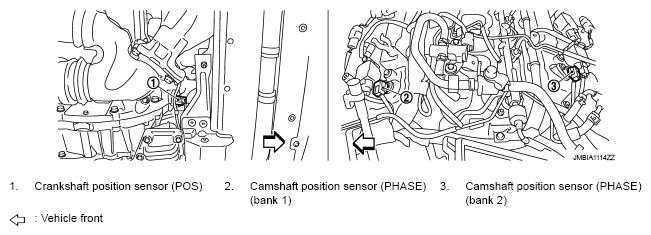

Fig 4: Identifying Automatic Speed Control Device (ASCD) System Components Location (4 Of 15)
G05886813Courtesy of NISSAN MOTOR CO., U.S.A.

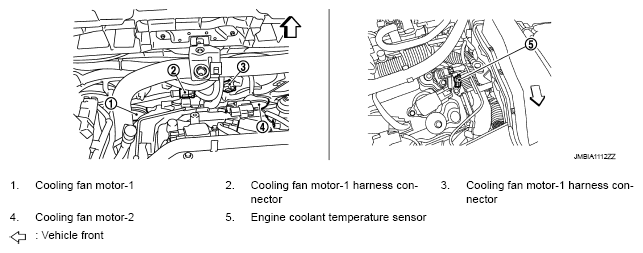

Fig 5: Identifying Automatic Speed Control Device (ASCD) System Components Location (5 Of 15)
G05886814Courtesy of NISSAN MOTOR CO., U.S.A.

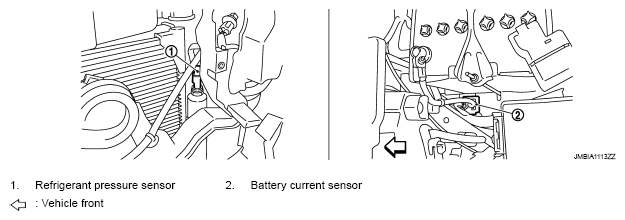

Fig 6: Identifying Automatic Speed Control Device (ASCD) System Components Location (6 Of 15)
G05886815Courtesy of NISSAN MOTOR CO., U.S.A.

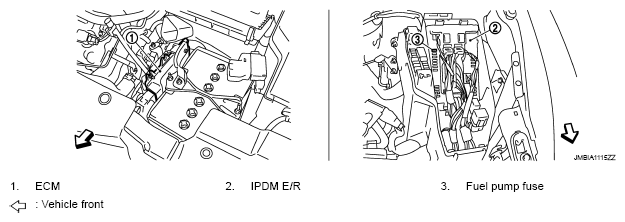

Fig 7: Identifying Automatic Speed Control Device (ASCD) System Components Location (7 Of 15)
G05886816Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 8: Identifying Automatic Speed Control Device (ASCD) System Components Location (8 Of 15)
G04886369Courtesy of NISSAN MOTOR CO., U.S.A.

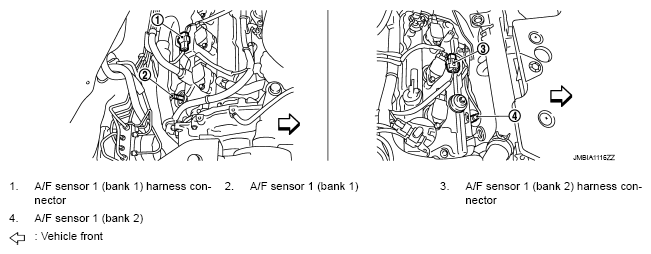

Fig 9: Identifying Automatic Speed Control Device (ASCD) System Components Location (9 Of 15)
G05886818Courtesy of NISSAN MOTOR CO., U.S.A.

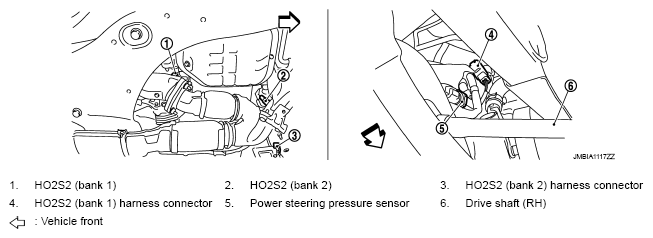

Fig 10: Identifying Automatic Speed Control Device (ASCD) System Components Location (10 Of 15)
G05886819Courtesy of NISSAN MOTOR CO., U.S.A.

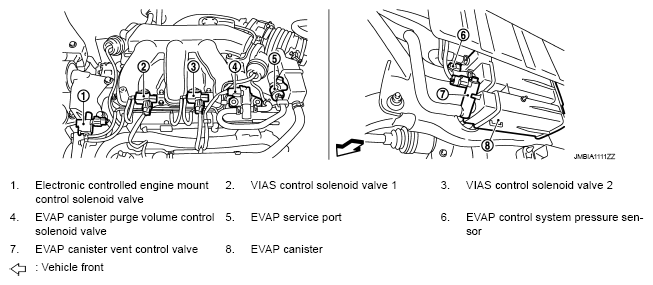

Fig 11: Identifying Automatic Speed Control Device (ASCD) System Components Location (11 Of 15)
G05886820Courtesy of NISSAN MOTOR CO., U.S.A.

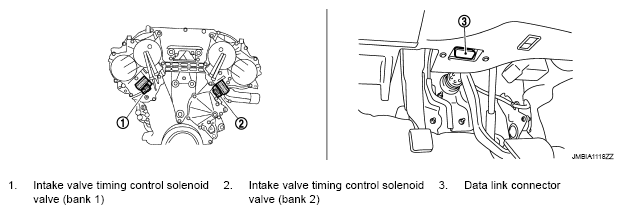

Fig 12: Identifying Automatic Speed Control Device (ASCD) System Components Location (12 Of 15)
G05886821Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 13: Identifying Automatic Speed Control Device (ASCD) System Components Location (13 Of 15)
G05886822Courtesy of NISSAN MOTOR CO., U.S.A.

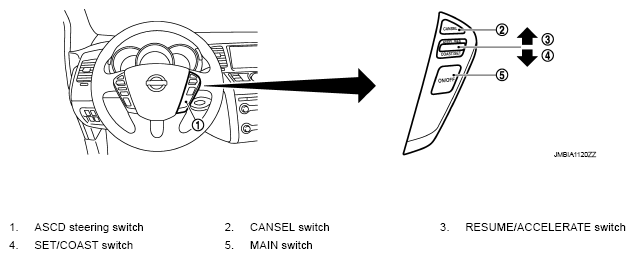

Fig 14: Identifying Automatic Speed Control Device (ASCD) System Components Location (14 Of 15)
G05886823Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 15: Identifying Automatic Speed Control Device (ASCD) System Components Location (15 Of 15)
G05886824Courtesy of NISSAN MOTOR CO., U.S.A.
