Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System - Introduction
>>
Function Diagnosis
>>
Electronic Controlled Engine Mount
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

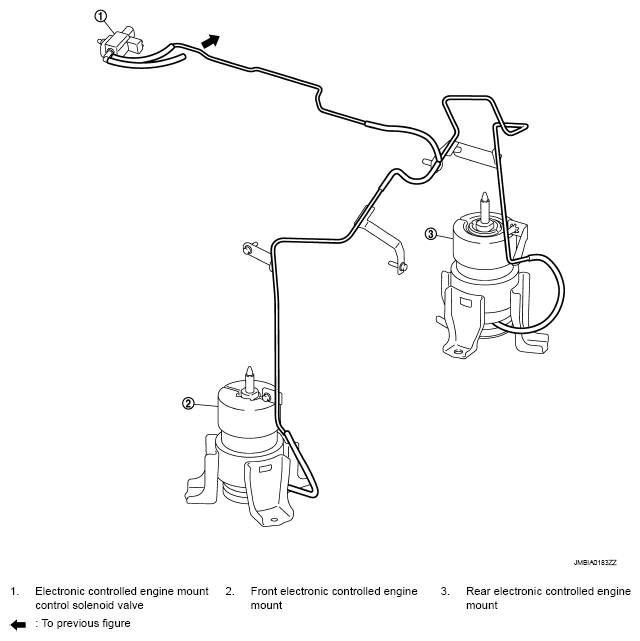

Fig 1: Electronic Controlled Engine Mount System Diagram (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Electronic Controlled Engine Mount System Diagram (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
Do not use soapy water or any type of solvent while installing vacuum hose.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
