Component Parts Location

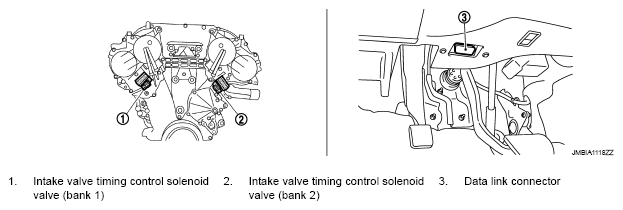

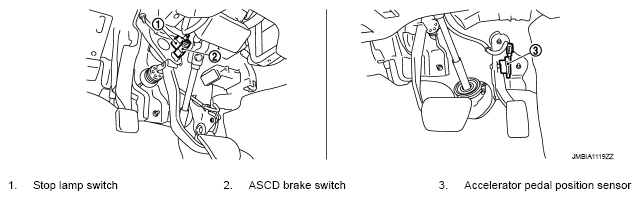

Fig 1: Identifying Engine Control System Components Location (1 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

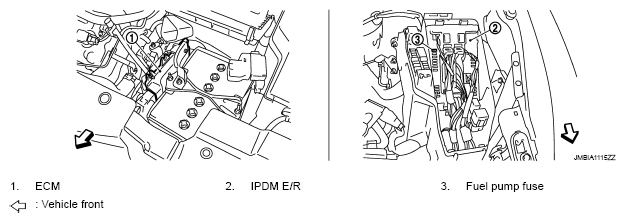

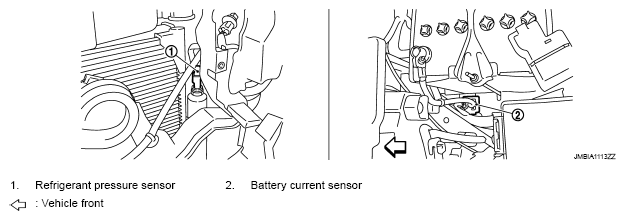

Fig 2: Identifying Engine Control System Components Location (2 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

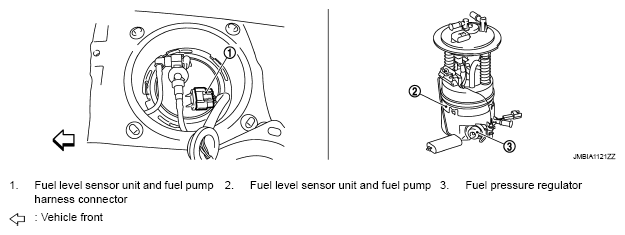

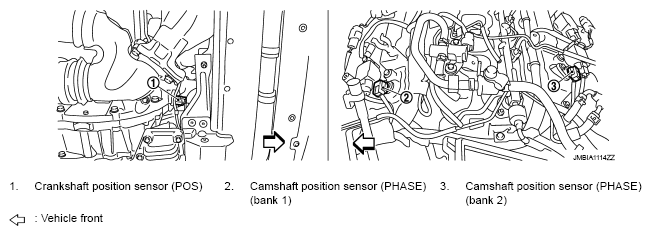

Fig 3: Identifying Engine Control System Components Location (3 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

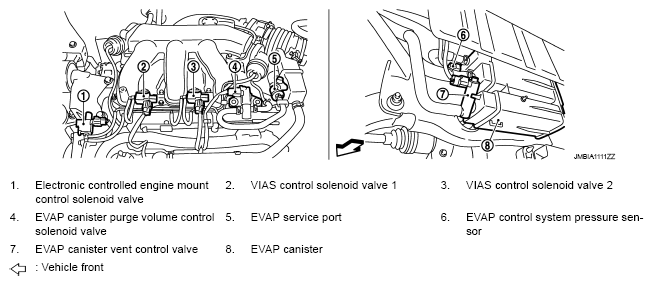

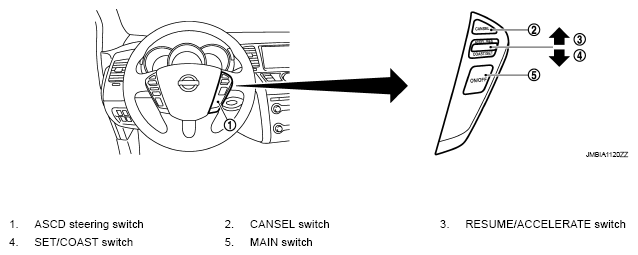

Fig 4: Identifying Engine Control System Components Location (4 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

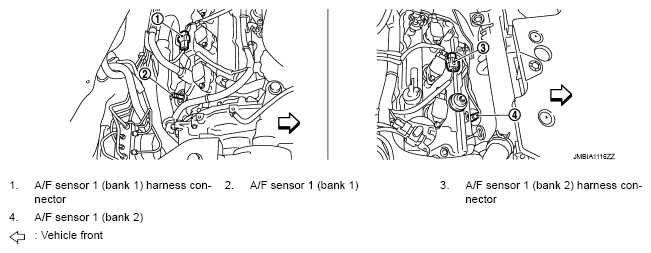

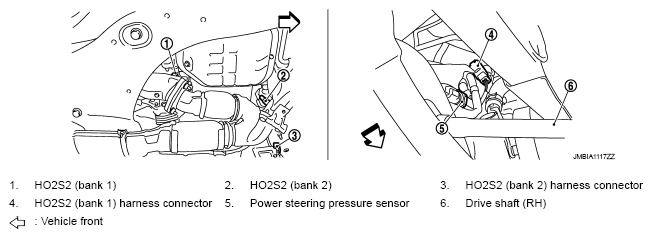

Fig 5: Identifying Engine Control System Components Location (5 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

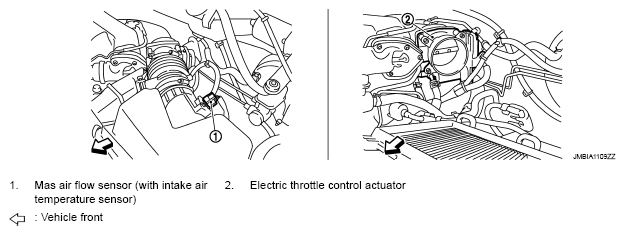

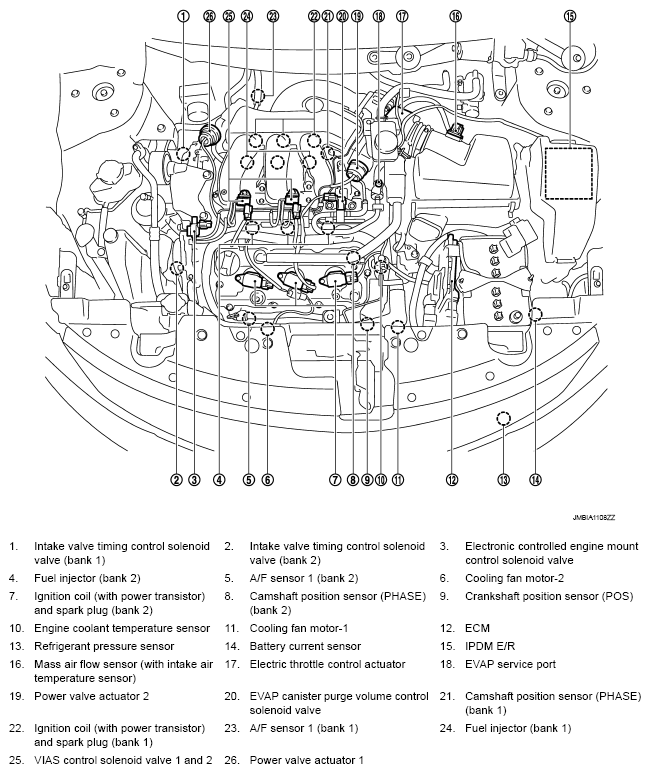

Fig 6: Identifying Engine Control System Components Location (6 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

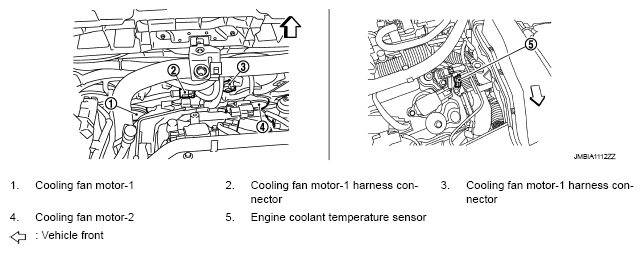

Fig 7: Identifying Engine Control System Components Location (7 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

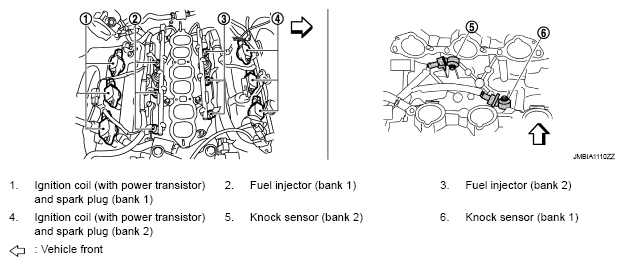

Fig 8: Identifying Engine Control System Components Location (8 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Engine Control System Components Location (9 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Engine Control System Components Location (10 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Engine Control System Components Location (11 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Engine Control System Components Location (12 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Engine Control System Components Location (13 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Engine Control System Components Location (14 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Identifying Engine Control System Components Location (15 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.
