Component Parts Location

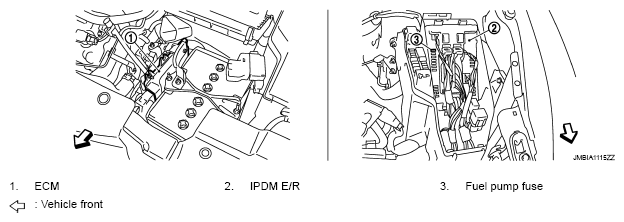

Fig 1: Identifying Intake Valve Timing Control System Components Location (1 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

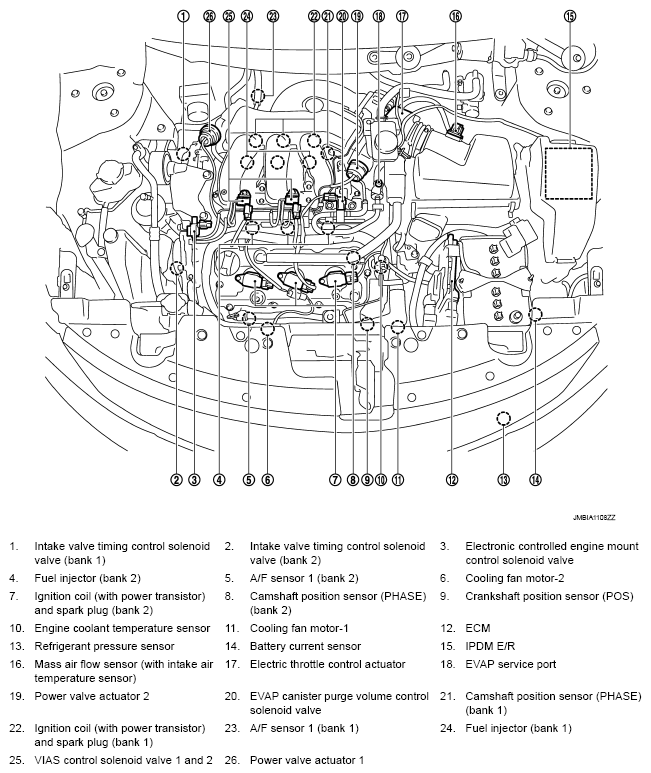

Fig 2: Identifying Intake Valve Timing Control System Components Location (2 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

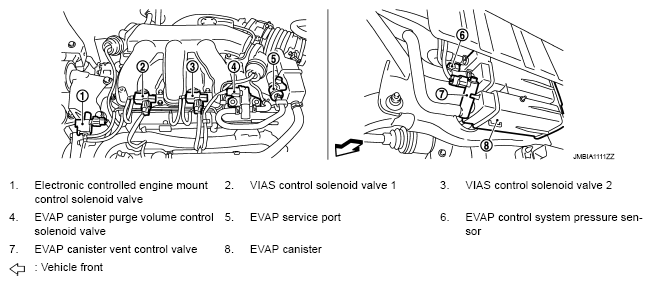

Fig 3: Identifying Intake Valve Timing Control System Components Location (3 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

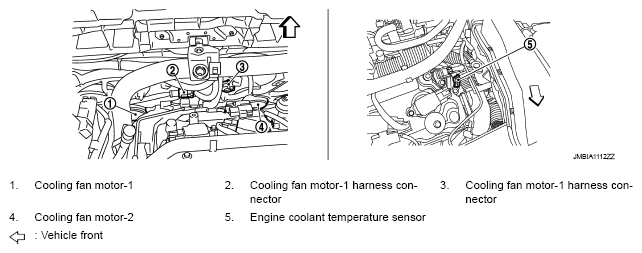

Fig 4: Identifying Intake Valve Timing Control System Components Location (4 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

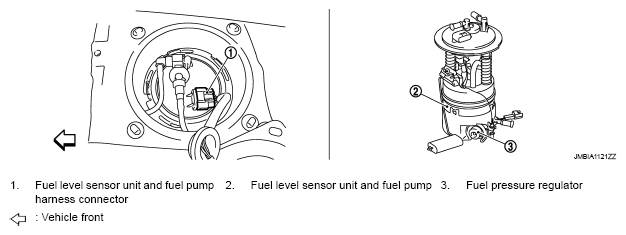

Fig 5: Identifying Intake Valve Timing Control System Components Location (5 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Intake Valve Timing Control System Components Location (6 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

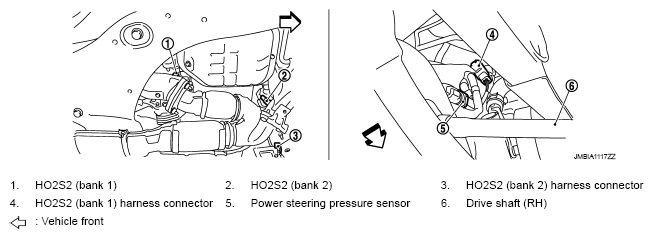

Fig 7: Identifying Intake Valve Timing Control System Components Location (7 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

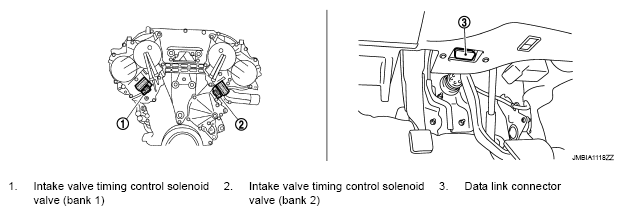

Fig 8: Identifying Intake Valve Timing Control System Components Location (8 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

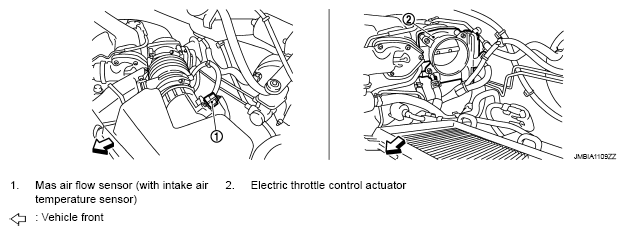

Fig 9: Identifying Intake Valve Timing Control System Components Location (9 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

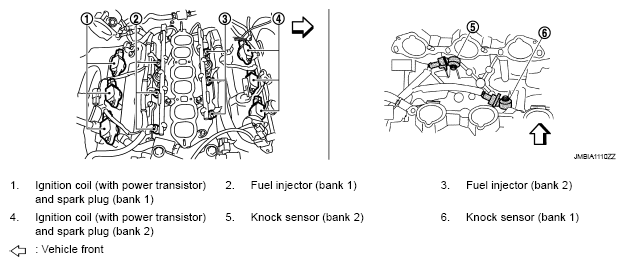

Fig 10: Identifying Intake Valve Timing Control System Components Location (10 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

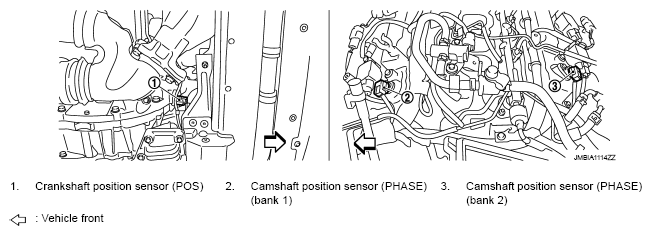

Fig 11: Identifying Intake Valve Timing Control System Components Location (11 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

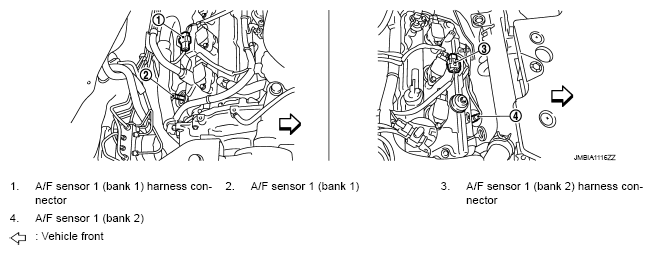

Fig 12: Identifying Intake Valve Timing Control System Components Location (12 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Intake Valve Timing Control System Components Location (13 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Intake Valve Timing Control System Components Location (14 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

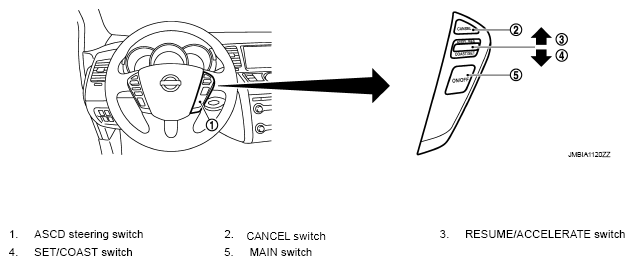

Fig 15: Identifying Intake Valve Timing Control System Components Location (15 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.
