Exploded View

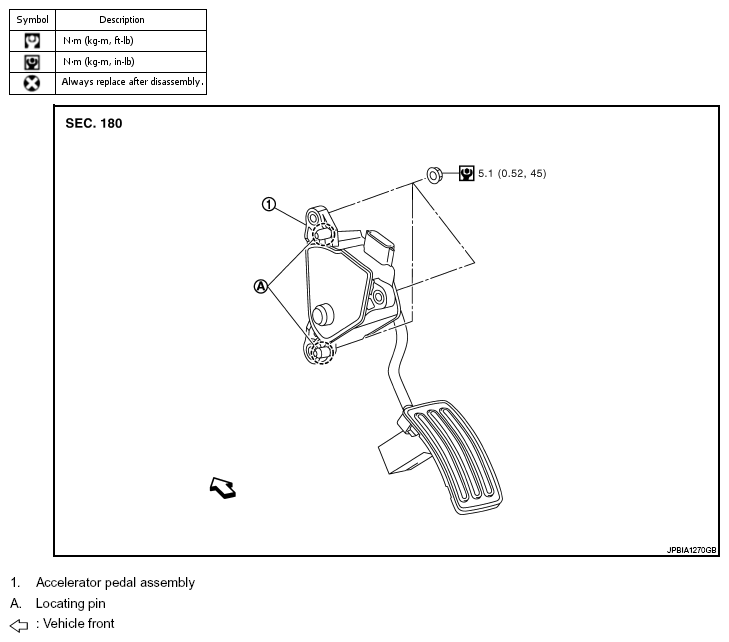

Fig 1: Accelerator Pedal Assembly And Nuts With Torque Specifications
G06057484Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
