System - Basic Engine Control System

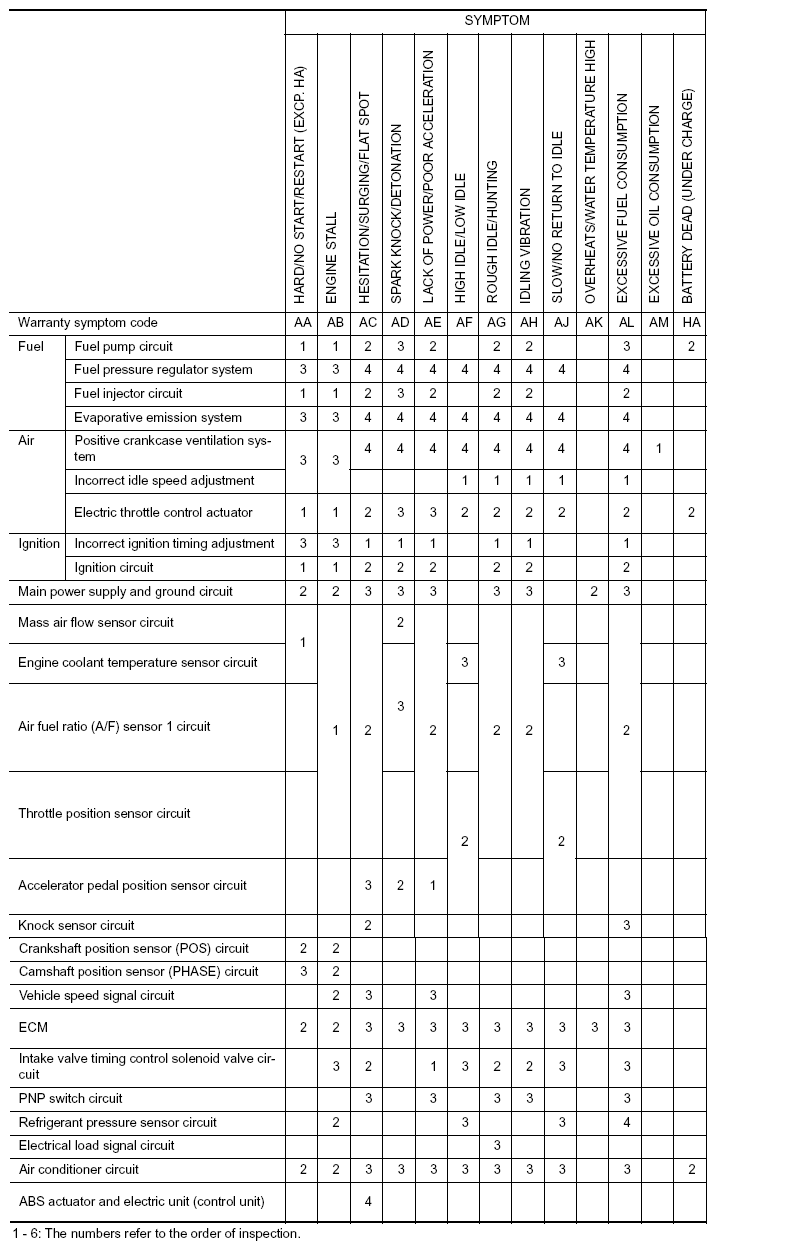

Fig 1: Basic Engine Control System - Symptom Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
