Component Parts Location

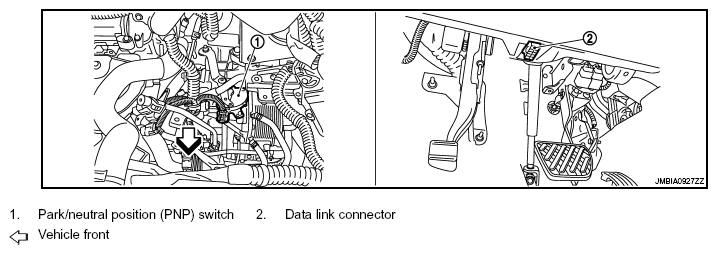

Fig 1: Identifying Cooling Fan Control Component Parts Location (1 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

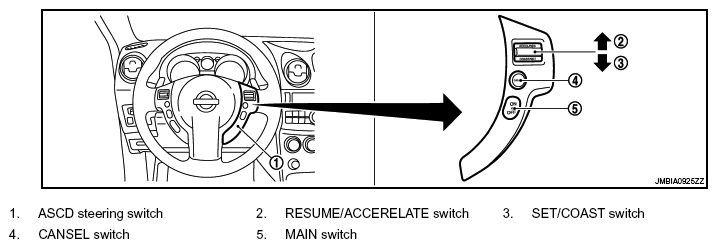

Fig 2: Identifying Cooling Fan Control Component Parts Location (2 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

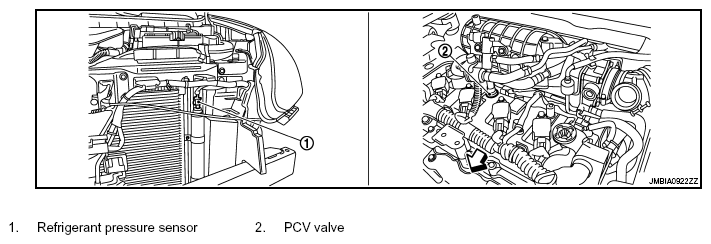

Fig 3: Identifying Cooling Fan Control Component Parts Location (3 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

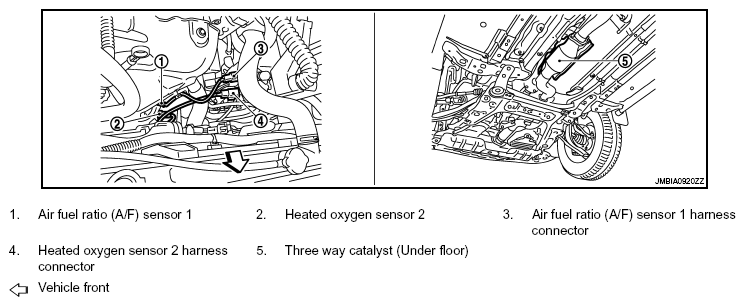

Fig 4: Identifying Cooling Fan Control Component Parts Location (4 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

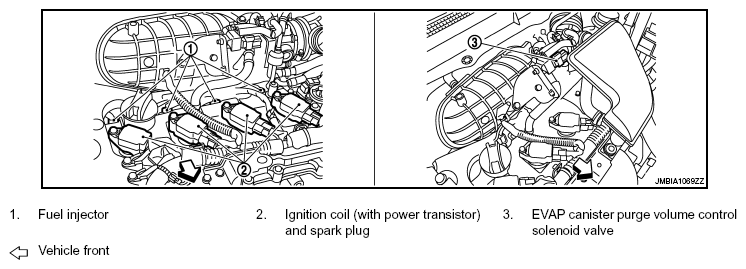

Fig 5: Identifying Cooling Fan Control Component Parts Location (5 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

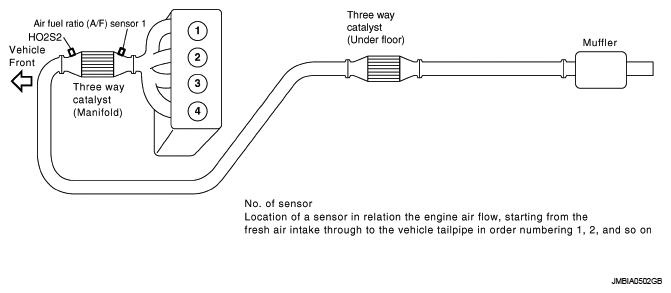

Fig 6: Identifying Cooling Fan Control Component Parts Location (6 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

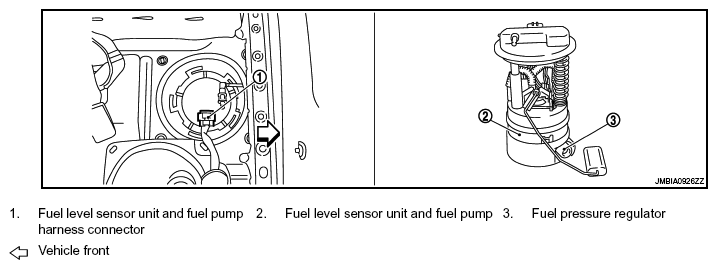

Fig 7: Identifying Cooling Fan Control Component Parts Location (7 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Identifying Cooling Fan Control Component Parts Location (8 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Cooling Fan Control Component Parts Location (9 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Cooling Fan Control Component Parts Location (10 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Cooling Fan Control Component Parts Location (11 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Cooling Fan Control Component Parts Location (12 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.
