Component Parts Location

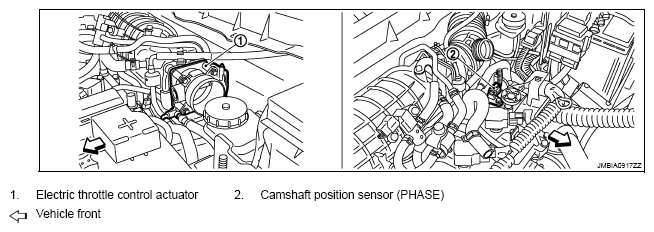

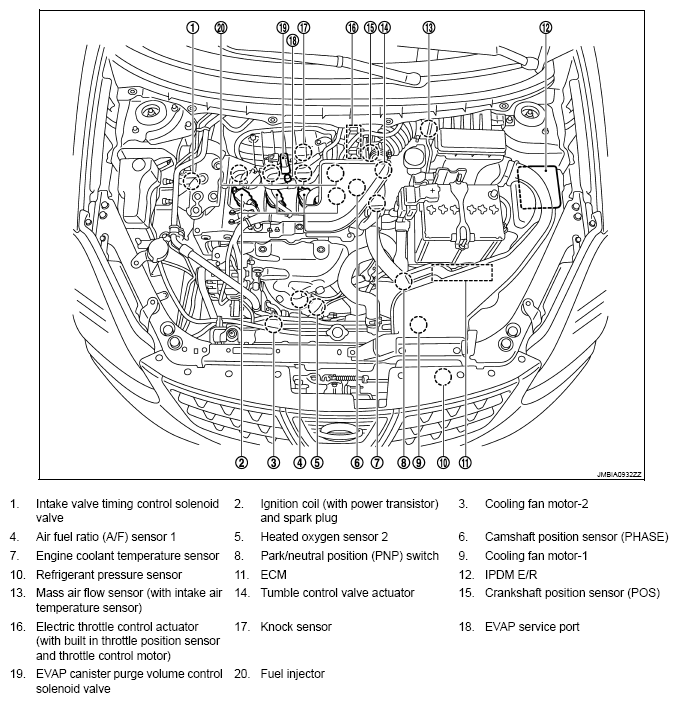

Fig 1: Intake Valve Timing Control System Component Parts Location (1 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

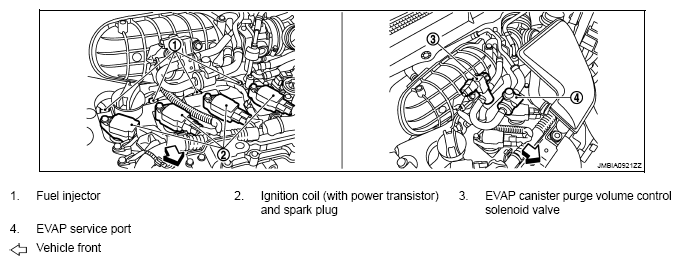

Fig 2: Intake Valve Timing Control System Component Parts Location (2 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

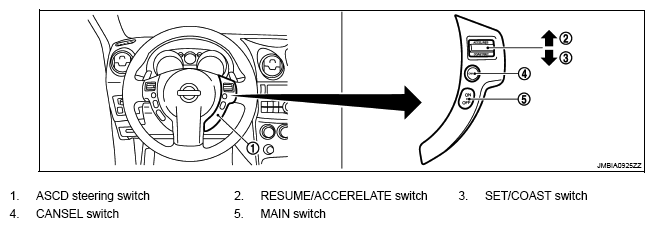

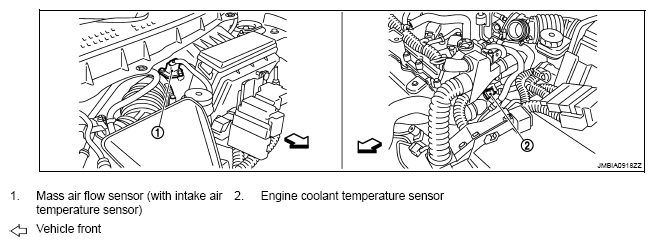

Fig 3: Intake Valve Timing Control System Component Parts Location (3 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

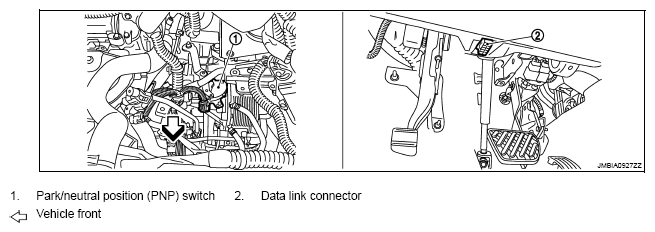

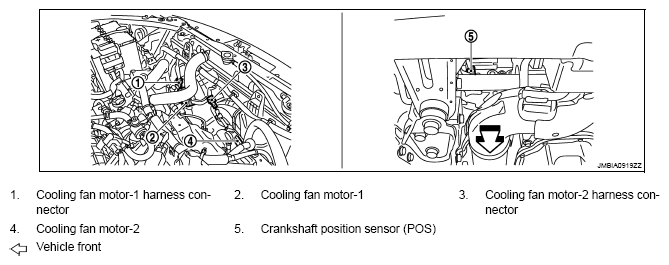

Fig 4: Intake Valve Timing Control System Component Parts Location (4 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

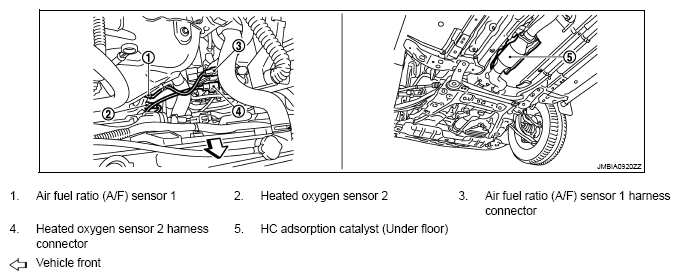

Fig 5: Intake Valve Timing Control System Component Parts Location (5 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

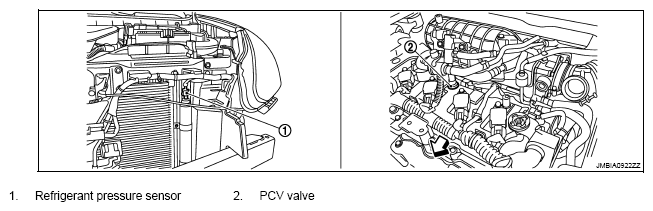

Fig 6: Intake Valve Timing Control System Component Parts Location (6 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Intake Valve Timing Control System Component Parts Location (7 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Intake Valve Timing Control System Component Parts Location (8 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

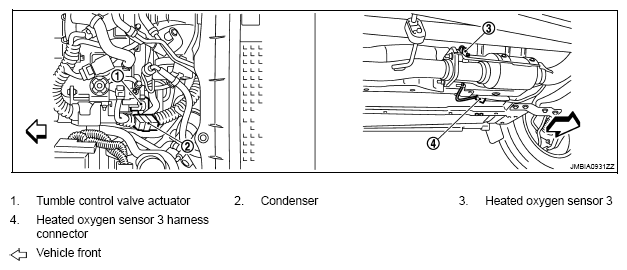

Fig 9: Intake Valve Timing Control System Component Parts Location (9 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

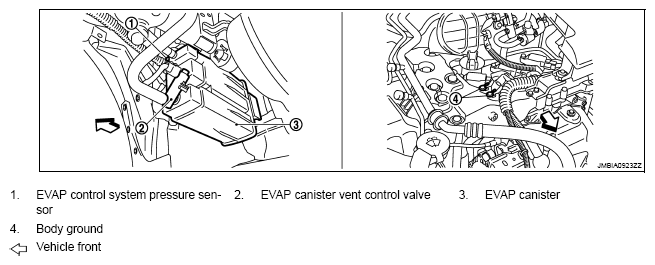

Fig 10: Intake Valve Timing Control System Component Parts Location (10 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Intake Valve Timing Control System Component Parts Location (11 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

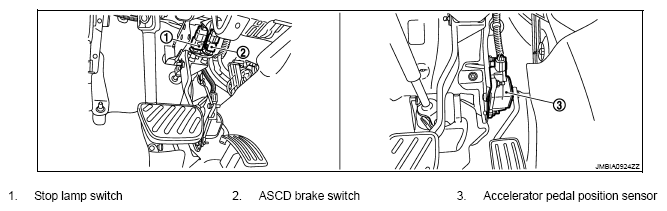

Fig 12: Intake Valve Timing Control System Component Parts Location (12 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Intake Valve Timing Control System Component Parts Location (13 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.

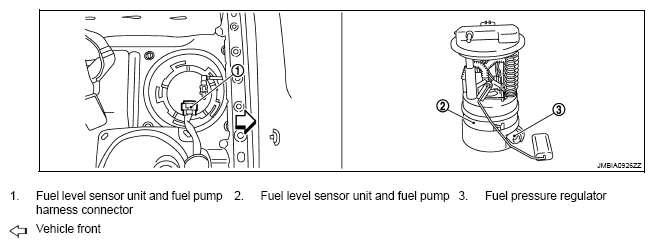

Fig 14: Intake Valve Timing Control System Component Parts Location (14 Of 14)

Courtesy of NISSAN MOTOR CO., U.S.A.
