Rogue SL, AWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Security Control System (With Intelligent Key System)
>>
Ecu Diagnosis
>>
IPDM E/R (Intelligent Power Distribution Module Engine Room)
>>
Reference Value
>>
Terminal Layout
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Terminal Layout

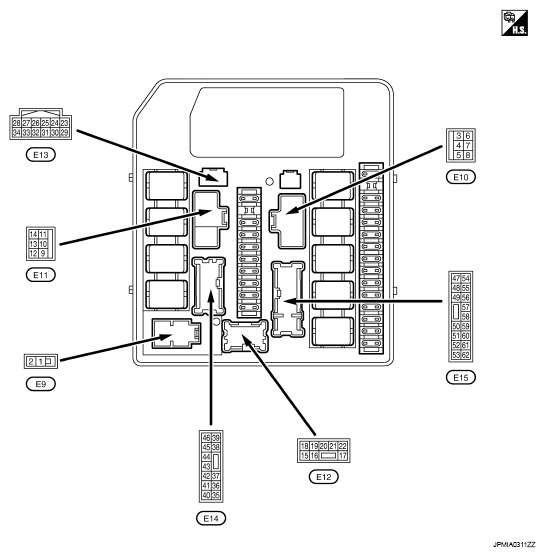

Fig 1: Identifying Intelligent Power Distribution Module Engine Room Terminal Layout
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
