Component Parts Location

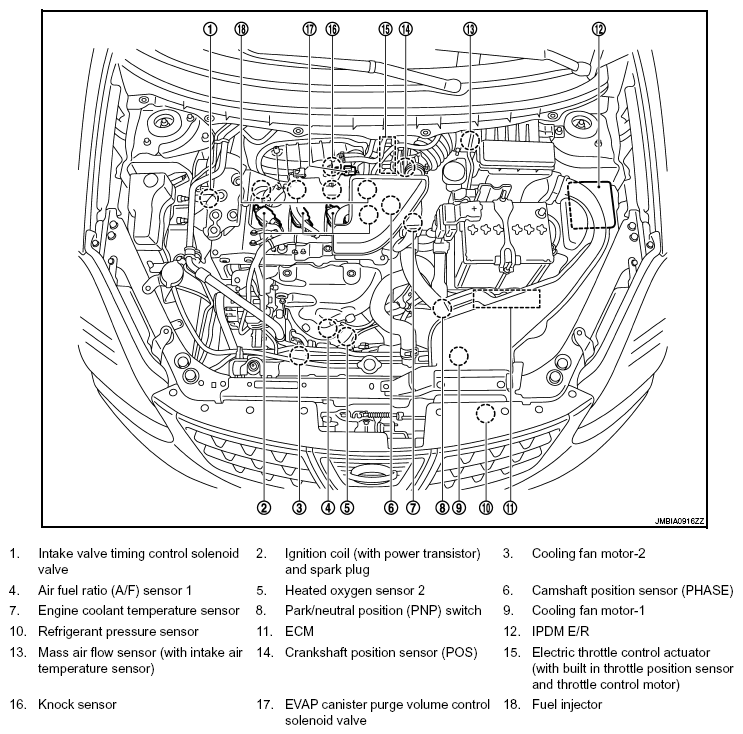

Fig 1: Identifying Air Conditioning Cut Control Component Parts Location (1 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

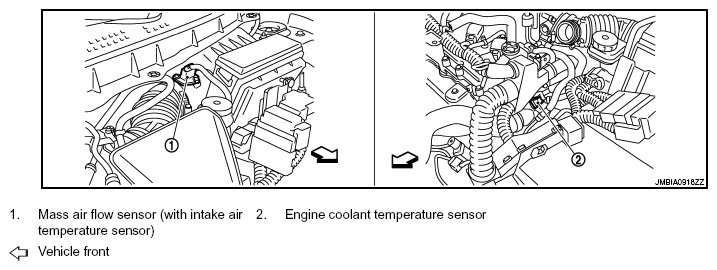

Fig 2: Identifying Air Conditioning Cut Control Component Parts Location (2 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

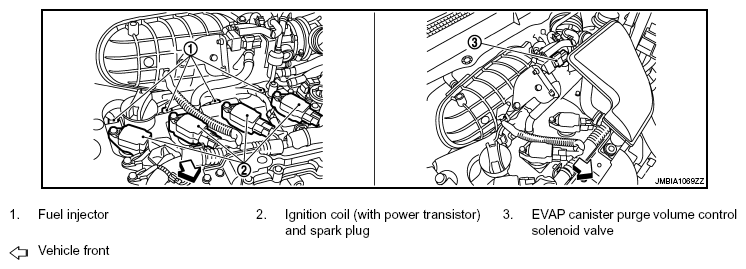

Fig 3: Identifying Air Conditioning Cut Control Component Parts Location (3 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Air Conditioning Cut Control Component Parts Location (4 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Air Conditioning Cut Control Component Parts Location (5 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Air Conditioning Cut Control Component Parts Location (6 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Air Conditioning Cut Control Component Parts Location (7 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Identifying Air Conditioning Cut Control Component Parts Location (8 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Air Conditioning Cut Control Component Parts Location (9 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Air Conditioning Cut Control Component Parts Location (10 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Air Conditioning Cut Control Component Parts Location (11 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Air Conditioning Cut Control Component Parts Location (12 Of 12)

Courtesy of NISSAN MOTOR CO., U.S.A.
