Fitting Adjustment: Notes

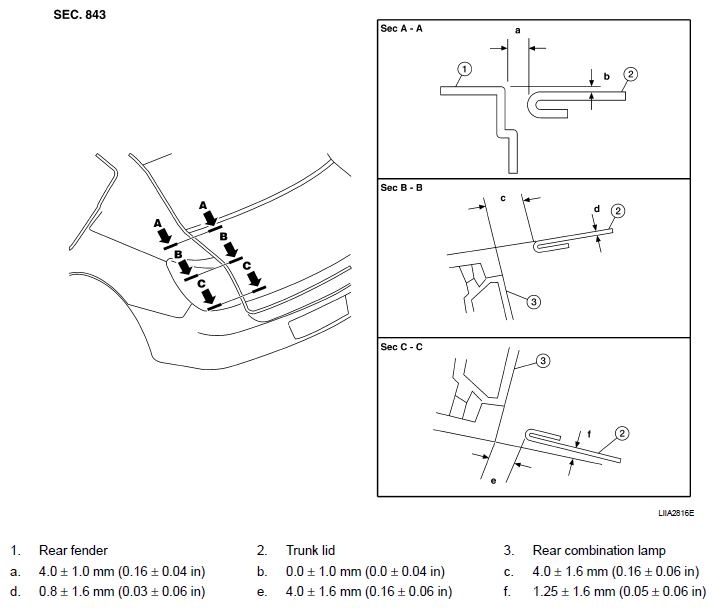

Fig 1: Trunk Lid Fitting Adjustment Gap
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
