Driver Seat

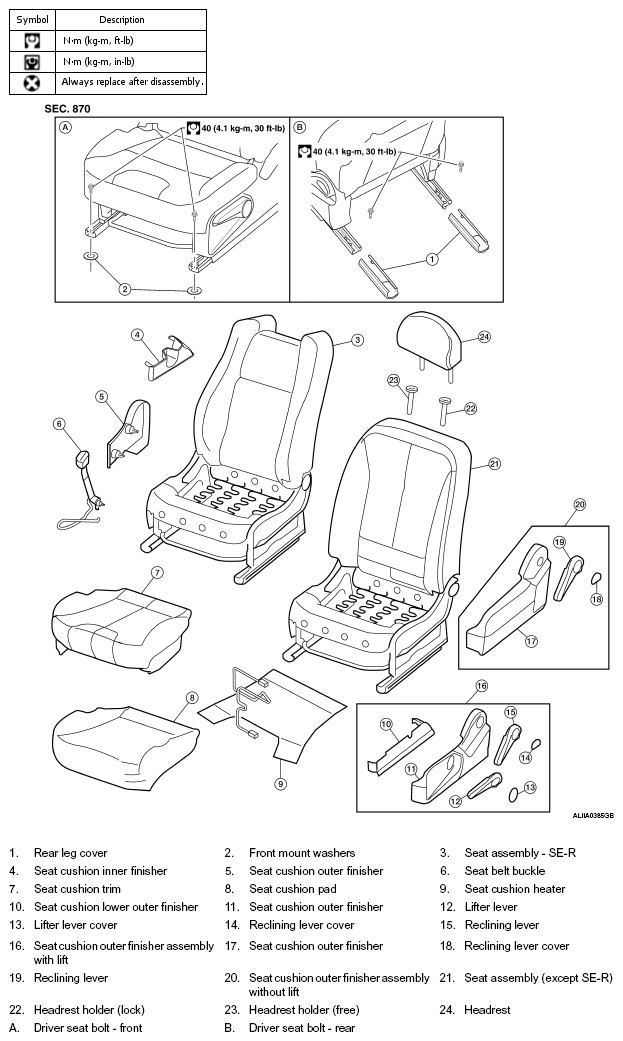

Fig 1: Front Seat Driver Seat Replacement Components With Torque Specifications
G05925955Courtesy of NISSAN MOTOR CO., U.S.A.
