Component Description

WARNING: This page is about a different variant/trim than selected.

Tumble control valve position sensor is built into the tumble control valve actuator (3).

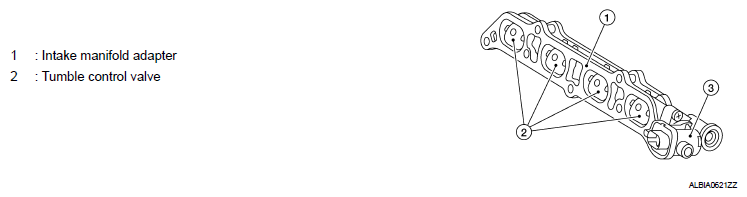

Fig 1: Identifying Tumble Control Valve And Intake Manifold Adapter

Courtesy of NISSAN MOTOR CO., U.S.A.

The sensor consists of a permanent magnet and Hall IC. It senses the valve shaft movement and feeds the voltage signals to the ECM.
