Control Device Components

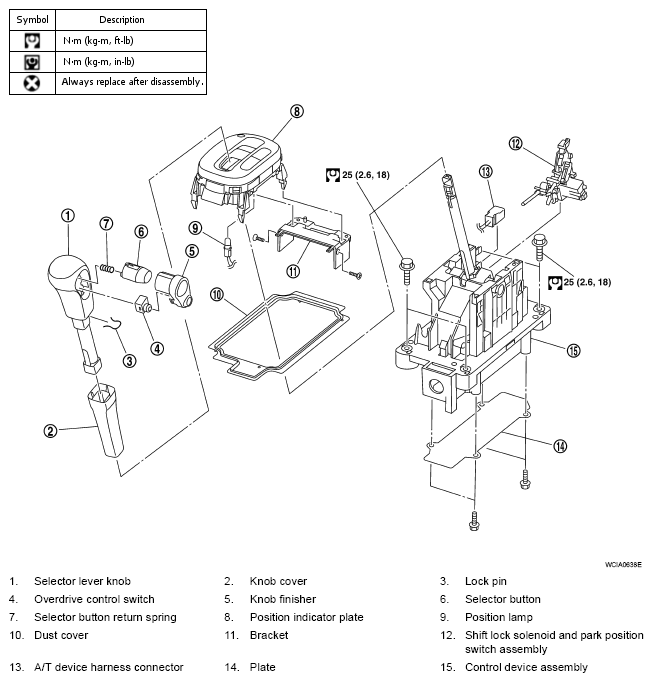

Fig 1: Exploded View Of Shift Control System Components With Torque Specifications
G04813168Courtesy of NISSAN MOTOR CO., U.S.A.
