Diagnosis Procedure

CHECK EXHAUST GAS LEAK
1. Start engine and run it at idle.
2. Listen for an exhaust gas leak before three way catalyst (manifold).

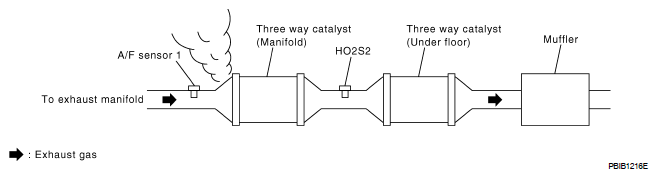

  Fig 1: Checking Exhaust Gas Leak
  Courtesy of NISSAN MOTOR CO., U.S.A.

  OK or NG

  OK : GO TO 2.

  NG : Repair or replace.
CHECK FOR INTAKE AIR LEAK AND PCV HOSE
1. Listen for an intake air leak after the mass air flow sensor.
2. Check PCV hose connection.
  OK or NG

  OK : GO TO 3.

  NG : Repair or replace.

CHECK AIR FUEL RATIO (A/F) SENSOR 1 CIRCUIT FOR OPEN AND SHORT

Turn ignition switch OFF.
Disconnect air fuel ratio (A/F) sensor 1 harness connector (1).
- Air fuel ratio (A/F) sensor 1 (2)
Disconnect ECM harness connector.

Check harness continuity between the following terminals.

Refer to Wiring Diagram.

CONTINUITY REFERENCE CHART

A/F sensor 1 terminal	ECM terminal
1	49
2	53

Fig 2: Identifying A/F Sensor 1 Harness Connector

Courtesy of NISSAN MOTOR CO., U.S.A.

Continuity should exist .

Check harness continuity between ECM terminals 49, 53 or A/F sensor 1 terminals 1, 2 and ground.
Refer to Wiring Diagram.

Continuity should not exist .
Also check harness for short to power.
OK or NG

OK : GO TO 4.

NG : Repair open circuit or short to ground or short to power in harness or connectors.

CHECK FUEL PRESSURE
1. Release fuel pressure to zero. Refer to "FUEL PRESSURE CHECK ".
2. Install fuel pressure gauge and check fuel pressure. Refer to "FUEL PRESSURE CHECK ".
  At idling: Approximately 350 kPa (3.57 kg/cm ² , 51 psi)

  OK or NG

  OK : GO TO 6.

  NG : GO TO 5.
DETECT MALFUNCTIONING PART
Check the following.
- Fuel pump and circuit (Refer to FUEL PUMP ).
- Fuel pressure regulator (Refer to "FUEL PRESSURE CHECK ").
- Fuel lines (Refer to FUEL INJECTOR AND FUEL TUBE ).
- Fuel filter for clogging
  Repair or replace.
CHECK MASS AIR FLOW SENSOR
With CONSULT-III
1. Install all removed parts.
2. Start engine and warm it up to normal operating temperature.
3. Check "MASS AIR FLOW" in "DATA MONITOR" mode with CONSULT-III.
  at idling : 1.0 - 4.0 g.m/sec

  at 2, 500 RPM : 2.0 - 10.0 g.m/sec
With GST
1. Install all removed parts.
2. Start engine and warm it up to normal operating temperature.
3. Check mass air flow sensor signal in Service $01 with GST.
  at idling : 1.0 - 4.0 g.m/sec

  at 2, 500 RPM : 2.0 - 10.0 g.m/sec

  OK or NG

  OK : GO TO 7.

  NG : Check connectors for rusted terminals or loose connections in the mass air flow sensor circuit or ground. Refer to DTC P0101 MAF SENSOR .
CHECK FUNCTION OF FUEL INJECTORS
With CONSULT-III
1. Let engine idle.
2. Perform "POWER BALANCE" in "ACTIVE TEST" mode with CONSULT-III.
3. Make sure that each circuit produces a momentary engine speed drop.
Without CONSULT-III
1. Let engine idle.
2. Listen to each fuel injector operating sound.
  Clicking noise should be heard .

  OK or NG

  OK : GO TO 8.

  NG : Perform trouble diagnosis for FUEL INJECTOR .

  Fig 3: Checking Fuel Injector
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK FUEL INJECTOR
1. Confirm that the engine is cooled down and there are no fire hazards near the vehicle.
2. Turn ignition switch OFF.
3. Reconnect all harness connectors disconnected.
4. Remove fuel tube assembly. Refer to REMOVAL AND INSTALLATION .
  Keep fuel hose and all fuel injector connected to fuel tube.

  The fuel injector harness connectors should remain connected.
5. Disconnect all ignition coil harness connectors.
6. Prepare pans or saucers under each fuel injector.
7. Crank engine for about 3 seconds. Make sure that fuel sprays out from fuel injectors.
  Fuel should be sprayed evenly for each fuel injector .

  OK or NG

  OK : GO TO 9.

  NG : Replace fuel injectors from which fuel does not spray out. Always replace O-ring with new ones.

  Fig 4: Checking Fuel Injector
  Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK INTERMITTENT INCIDENT
Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

INSPECTION END
