Engine Control System: Schematic

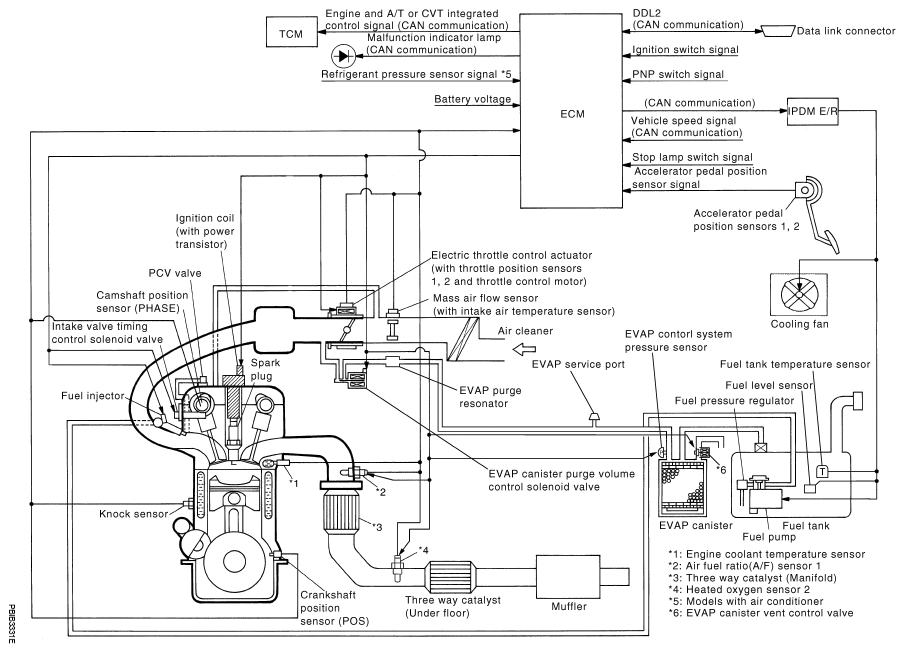

Fig 1: Engine Control System - Schematic Diagram
G05932449Courtesy of NISSAN MOTOR CO., U.S.A.
