Component Inspection

1. Turn ignition switch OFF.
2. Reconnect harness connectors disconnected.
3. Disconnect battery negative cable.
4. Install jumper cable (A) between battery negative terminal and body ground.

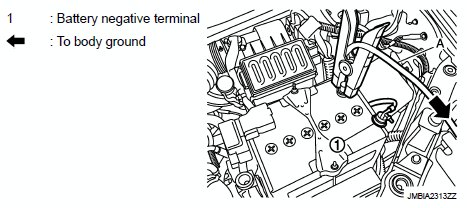

   Fig 1: Identifying Battery Negative Terminal And Jumper Cable

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. Turn ignition switch ON.
6. Check the voltage between ECM harness connector and ground.

Before measuring the terminal voltage, confirm that the battery is fully charged. Refer to "HOW TO HANDLE BATTERY ".

Is the inspection result normal?

YES: INSPECTION END

NO: Replace battery negative cable assembly.
