Front Suspension Assembly: Component

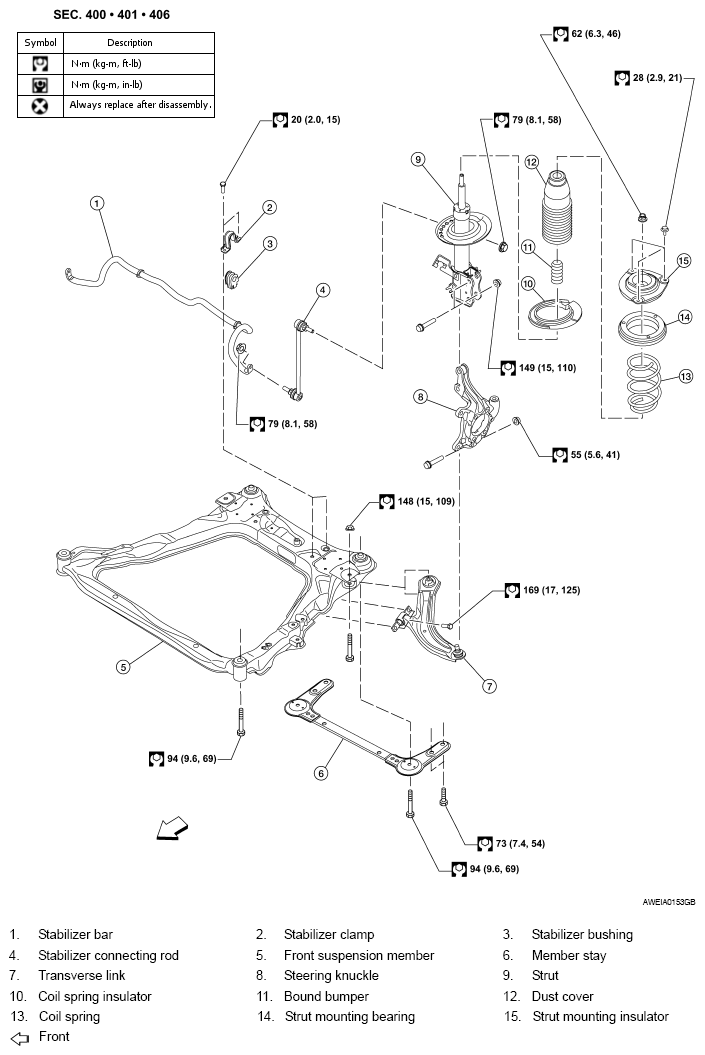

Fig 1: Front Suspension Replacement Components With Torque Specifications
G06552376Courtesy of NISSAN MOTOR CO., U.S.A.
