Transmission Range Switch: Components

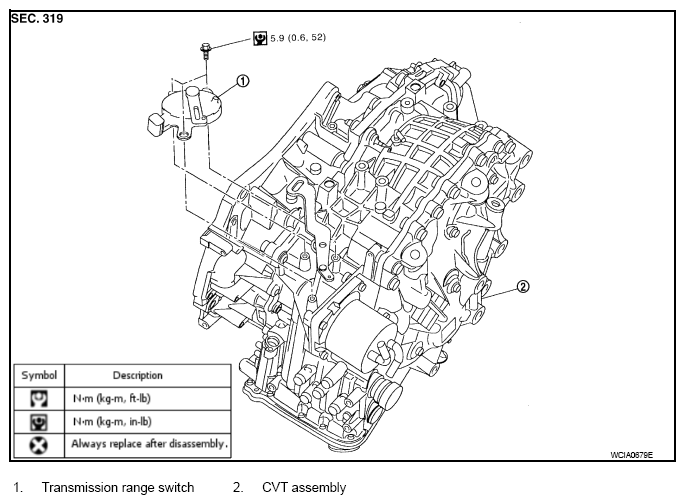

Fig 1: Transmission Range Switch Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

Align transmission range switch position when installing.
After installation of transmission range switch, check the continuity of transmission range switch. Refer to "ADJUSTMENT OF TRANSMISSION RANGE SWITCH ".
After installation is complete, adjust and check CVT position. Refer to "ADJUSTMENT OF CVT POSITION ", "CHECKING OF CVT POSITION ".
