Overall Sequence

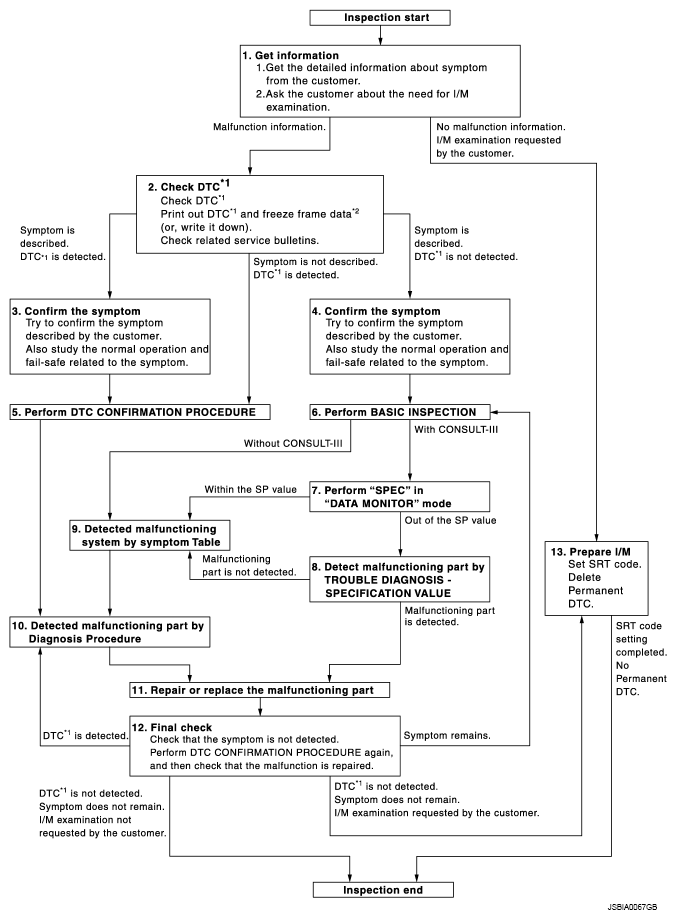

Fig 1: Diagnosis And Repair Work Flow Chart
G07099494Courtesy of NISSAN MOTOR CO., U.S.A.

*1: Include 1st trip DTC.

*2: Include 1st trip freeze frame data.
