Component Parts Location

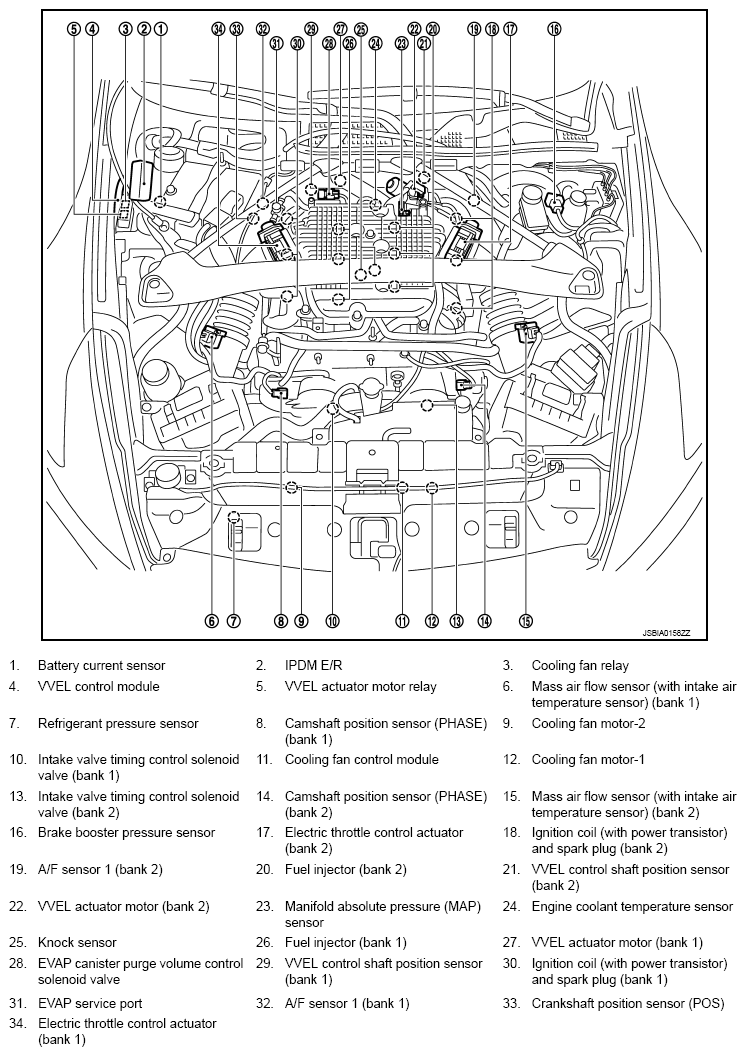

Fig 1: Identifying Air Conditioning Cut Control System Component Parts Location (1 Of 21)

G07099585

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Air Conditioning Cut Control System Component Parts Location (2 Of 21)

G07099586

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Air Conditioning Cut Control System Component Parts Location (3 Of 21)

G07099587

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Air Conditioning Cut Control System Component Parts Location (4 Of 21)

G07099588

Courtesy of NISSAN MOTOR CO., U.S.A.

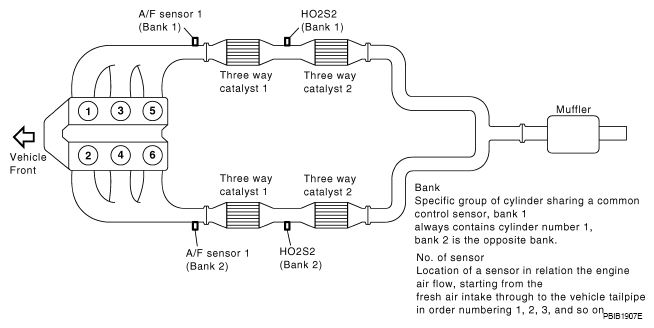

Fig 5: Identifying Air Conditioning Cut Control System Component Parts Location (5 Of 21)

G07099589

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Air Conditioning Cut Control System Component Parts Location (6 Of 21)

G07099590

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Air Conditioning Cut Control System Component Parts Location (7 Of 21)

G07099591

Courtesy of NISSAN MOTOR CO., U.S.A.

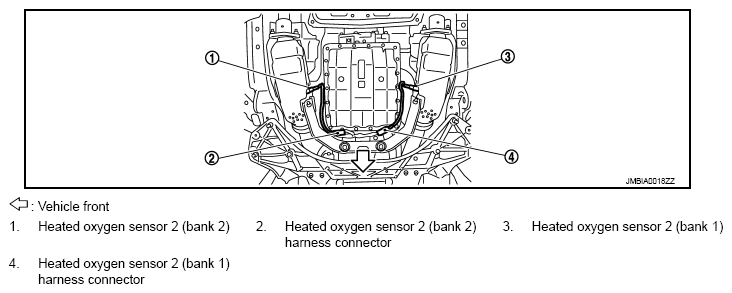

Fig 8: Identifying Air Conditioning Cut Control System Component Parts Location (8 Of 21)

G07099592

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Air Conditioning Cut Control System Component Parts Location (9 Of 21)

G07099593

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Air Conditioning Cut Control System Component Parts Location (10 Of 21)

G07099594

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Air Conditioning Cut Control System Component Parts Location (11 Of 21)

G07099595

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Air Conditioning Cut Control System Component Parts Location (12 Of 21)

G07099596

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Air Conditioning Cut Control System Component Parts Location (13 Of 21)

G07099597

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Air Conditioning Cut Control System Component Parts Location (14 Of 21)

G07099598

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Identifying Air Conditioning Cut Control System Component Parts Location (15 Of 21)

G07099599

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Air Conditioning Cut Control System Component Parts Location (16 Of 21)

G07099600

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Identifying Air Conditioning Cut Control System Component Parts Location (17 Of 21)

G07099601

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 18: Identifying Air Conditioning Cut Control System Component Parts Location (18 Of 21)

G07099602

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying Air Conditioning Cut Control System Component Parts Location (19 Of 21)

G07099603

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Air Conditioning Cut Control System Component Parts Location (20 Of 21)

G07099604

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 21: Identifying Air Conditioning Cut Control System Component Parts Location (21 Of 21)

G07099605

Courtesy of NISSAN MOTOR CO., U.S.A.
