Component Parts Location

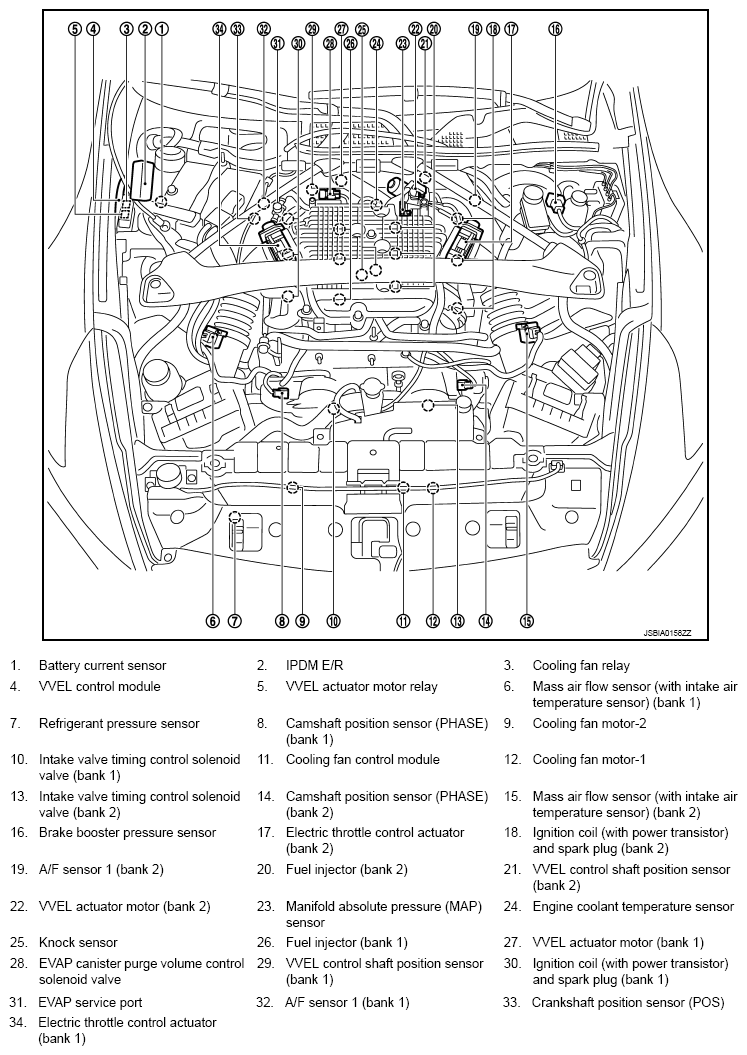

Fig 1: Identifying Automatic Speed Control Device Component Parts Location (1 Of 21)

G07099607

Courtesy of NISSAN MOTOR CO., U.S.A.

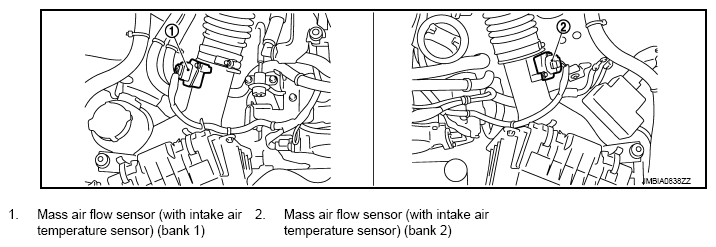

Fig 2: Identifying Automatic Speed Control Device Component Parts Location (2 Of 21)

G07099608

Courtesy of NISSAN MOTOR CO., U.S.A.

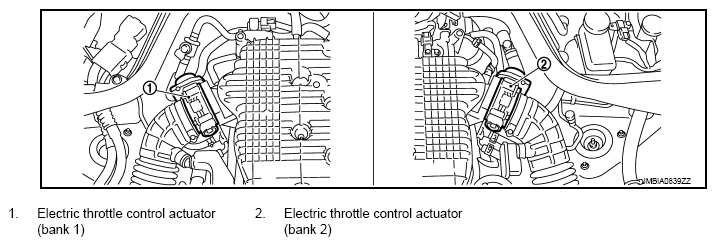

Fig 3: Identifying Automatic Speed Control Device Component Parts Location (3 Of 21)

G07099609

Courtesy of NISSAN MOTOR CO., U.S.A.

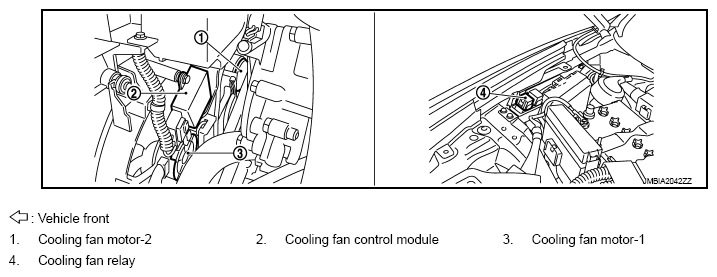

Fig 4: Identifying Automatic Speed Control Device Component Parts Location (4 Of 21)

G07099610

Courtesy of NISSAN MOTOR CO., U.S.A.

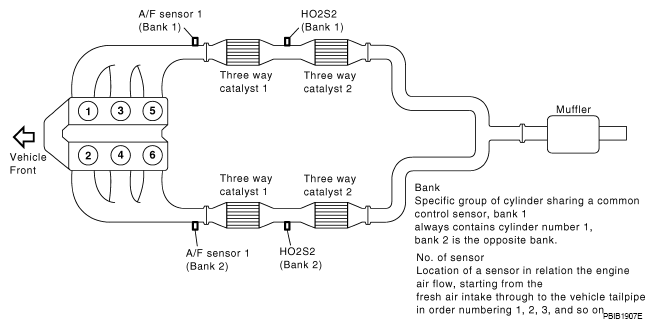

Fig 5: Identifying Automatic Speed Control Device Component Parts Location (5 Of 21)

G07099611

Courtesy of NISSAN MOTOR CO., U.S.A.

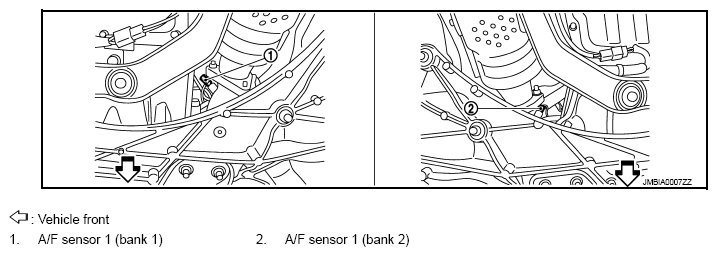

Fig 6: Identifying Automatic Speed Control Device Component Parts Location (6 Of 21)

G07099612

Courtesy of NISSAN MOTOR CO., U.S.A.

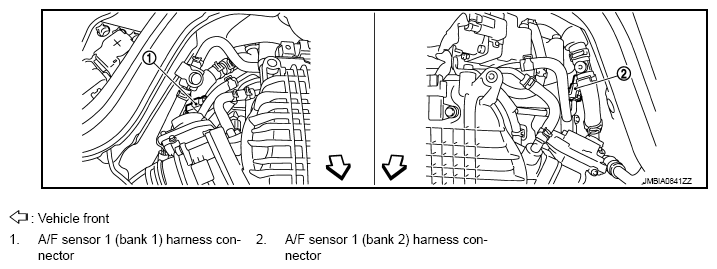

Fig 7: Identifying Automatic Speed Control Device Component Parts Location (7 Of 21)

G07099613

Courtesy of NISSAN MOTOR CO., U.S.A.

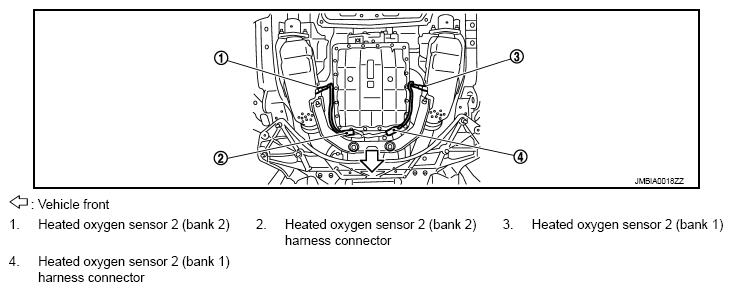

Fig 8: Identifying Automatic Speed Control Device Component Parts Location (8 Of 21)

G07099614

Courtesy of NISSAN MOTOR CO., U.S.A.

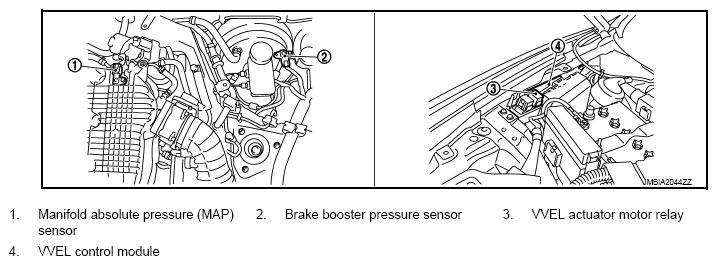

Fig 9: Identifying Automatic Speed Control Device Component Parts Location (9 Of 21)

G07099615

Courtesy of NISSAN MOTOR CO., U.S.A.

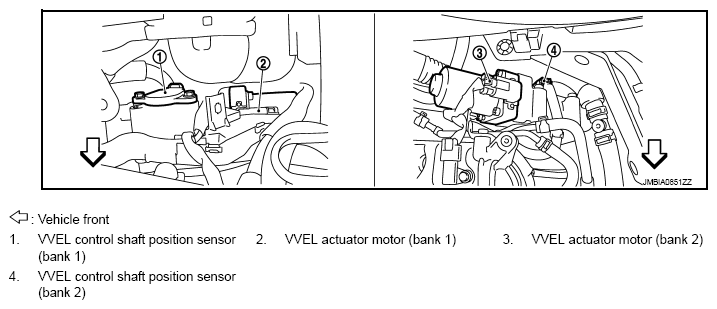

Fig 10: Identifying Automatic Speed Control Device Component Parts Location (10 Of 21)

G07099616

Courtesy of NISSAN MOTOR CO., U.S.A.

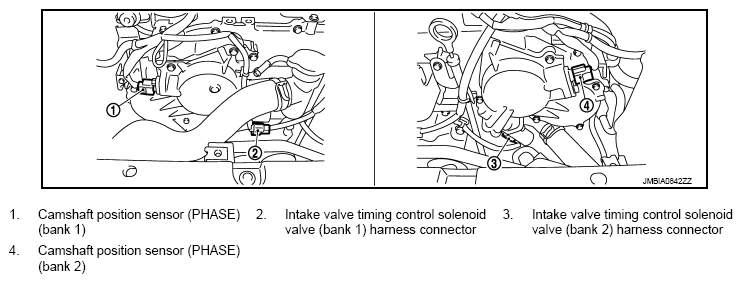

Fig 11: Identifying Automatic Speed Control Device Component Parts Location (11 Of 21)

G07099617

Courtesy of NISSAN MOTOR CO., U.S.A.

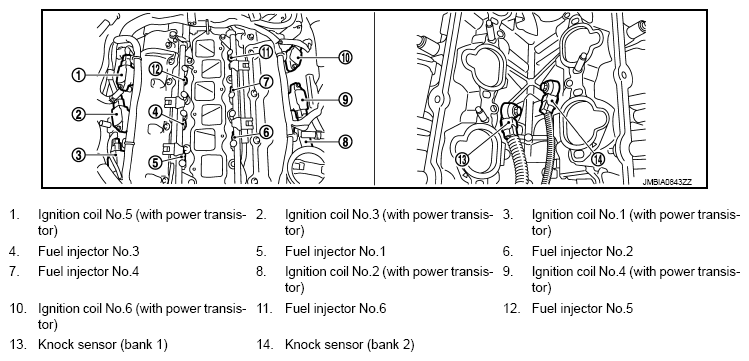

Fig 12: Identifying Automatic Speed Control Device Component Parts Location (12 Of 21)

G07099618

Courtesy of NISSAN MOTOR CO., U.S.A.

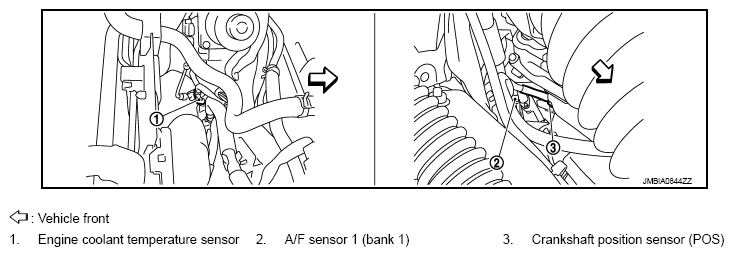

Fig 13: Identifying Automatic Speed Control Device Component Parts Location (13 Of 21)

G07099619

Courtesy of NISSAN MOTOR CO., U.S.A.

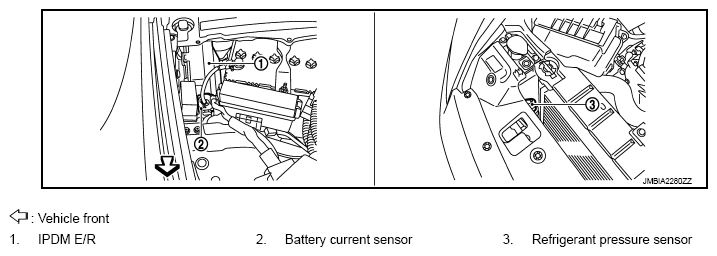

Fig 14: Identifying Automatic Speed Control Device Component Parts Location (14 Of 21)

G07099620

Courtesy of NISSAN MOTOR CO., U.S.A.

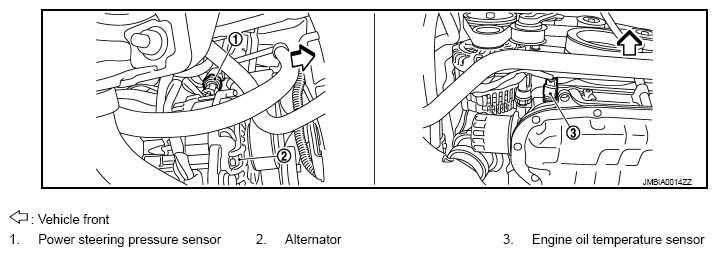

Fig 15: Identifying Automatic Speed Control Device Component Parts Location (15 Of 21)

G07099621

Courtesy of NISSAN MOTOR CO., U.S.A.

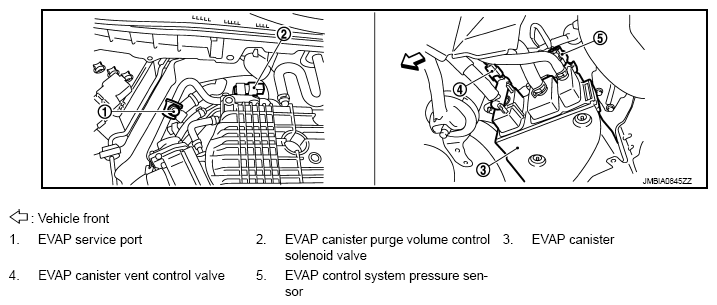

Fig 16: Identifying Automatic Speed Control Device Component Parts Location (16 Of 21)

G07099622

Courtesy of NISSAN MOTOR CO., U.S.A.

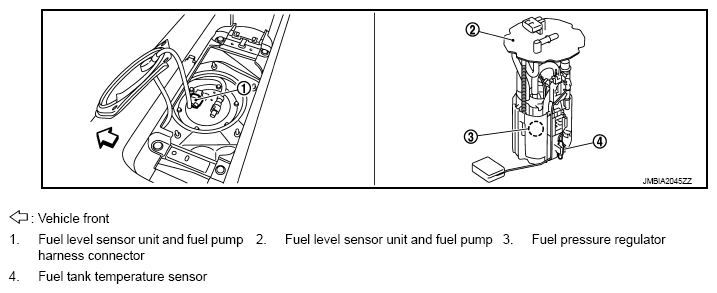

Fig 17: Identifying Automatic Speed Control Device Component Parts Location (17 Of 21)

G07099623

Courtesy of NISSAN MOTOR CO., U.S.A.

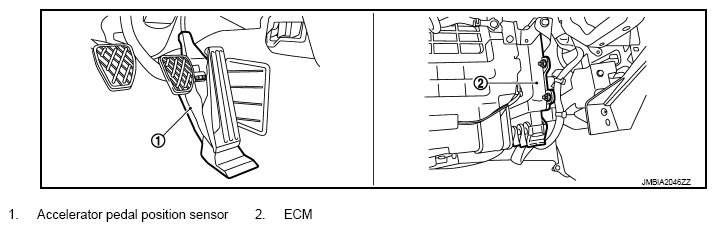

Fig 18: Identifying Automatic Speed Control Device Component Parts Location (18 Of 21)

G07099624

Courtesy of NISSAN MOTOR CO., U.S.A.

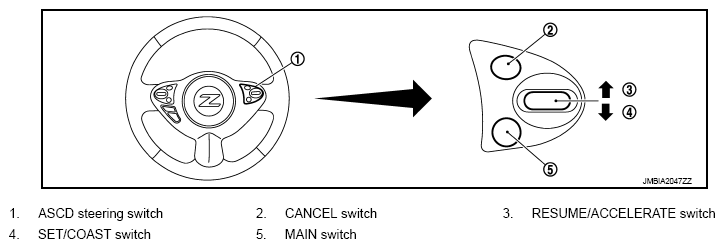

Fig 19: Identifying Automatic Speed Control Device Component Parts Location (19 Of 21)

G07099625

Courtesy of NISSAN MOTOR CO., U.S.A.

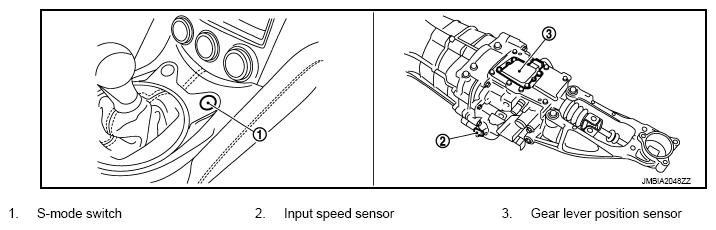

Fig 20: Identifying Automatic Speed Control Device Component Parts Location (20 Of 21)

G07099626

Courtesy of NISSAN MOTOR CO., U.S.A.

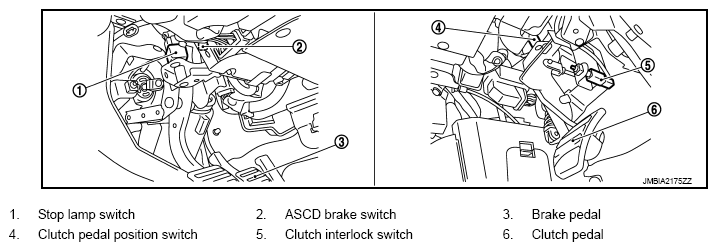

Fig 21: Identifying Automatic Speed Control Device Component Parts Location (21 Of 21)

G07099627

Courtesy of NISSAN MOTOR CO., U.S.A.
