DTC&SRT Confirmation Mode
SRT STATUS Mode
- For items whose SRT codes are set, "CMPLT" is displayed on the CONSULT-III screen; for items whose SRT codes are not set, "INCMP" is displayed.
- "SRT STATUS" provides the presence or absence of permanent DTCs stored in ECM memory.
PERMANENT DTC STATUS Mode
How to Display Permanent DTC Status
- Turn ignition switch OFF and wait at 10 seconds.
- Turn ignition switch ON.
- Turn ignition switch OFF and wait at 10 seconds.
- Turn ignition switch ON.
NOTE:

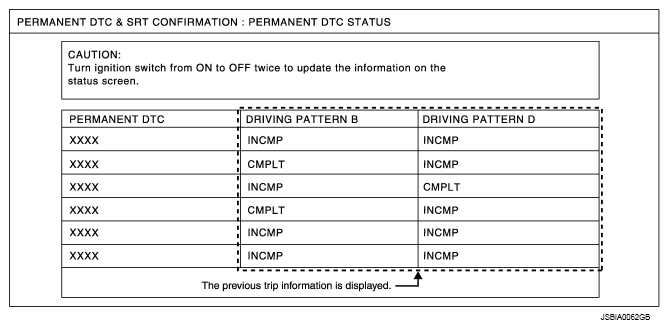

Permanent DTCs stored in ECM memory are displayed on the CONSULT-III screen to show if a driving pattern required for erasing permanent DTCs is complete (CMPLT) or incomplete (INCMP).
CAUTION:
Since the "PERMANENT DTC STATUS" screen displays the previous trip information, repeat the following twice to update the information: "Ignition switch OFF", "Wait for more than 10 seconds" and "Ignition switch ON".
NOTE:
This mode is not used in regions that permanent DTCs are not regulated by law.
SRT WORK SUPPORT Mode
This mode enables a technician to drive a vehicle to set the SRT while monitoring the SRT status.
PERMANENT DTC WORK SUPPORT Mode
This mode enables a technician to drive a vehicle to complete the driving pattern that is required for erasing permanent DTC.
NOTE:
This mode is not used in regions that permanent DTCs are not regulated by law.
DTC WORK SUPPORT Mode
TEST ITEM CONDITION
| Test mode | Test item | Corresponding DTC No. | Reference Information | ||
|---|---|---|---|---|---|
| EVAPORATIVE SYSTEM | EVP SML LEAK P0442(1)/P1442(1) | - | - | ||
| EVP V/S LEAK P0456/P1456(1) | P0456 | P0456 EVAP CONTROL SYSTEM | |||
| PURG VOL CN/V P1444 | P0443 | P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE | |||
| PURG FLOW P0441 | P0441 | P0441 EVAP CONTROL SYSTEM | |||
| A/F SEN1 | A/F SEN1 (B1) P1278/P1279 | P0133 | P0133, P0153 A/F SENSOR 1 | ||
| A/F SEN1 (B1) P1276 | P0130 | P0130, P0150 A/F SENSOR 1 | |||
| A/F SEN1 (B2) P1288/P1289 | P0153 | P0133, P0153 A/F SENSOR 1 | |||
| A/F SEN1 (B2) P1286 | P0150 | P0130, P0150 A/F SENSOR 1 | |||
| HO2S2 | HO2S2 (B1) P1146 | P0138 | P0138, P0158 HO2S2 | ||
| HO2S2 (B1) P1147 | P0137 | P0137, P0157 HO2S2 | |||
| HO2S2 (B1) P0139 | P0139 | P0139, P0159 HO2S2 | |||
| HO2S2 (B2) P1166 | P0158 | P0138, P0158 HO2S2 | |||
| HO2S2 (B2) P1167 | P0157 | P0137, P0157 HO2S2 | |||
| HO2S2 (B2) P0159 | P0159 | P0139, P0159 HO2S2 | |||
|
|||||
