Component Parts Location

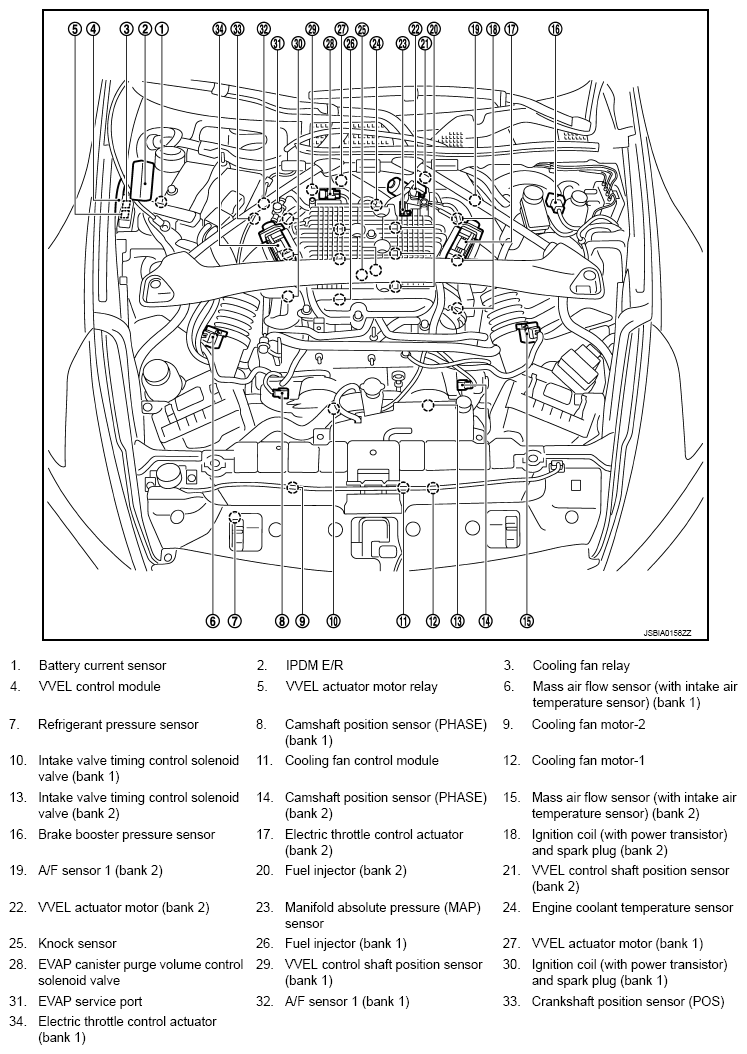

Fig 1: Identifying Engine Control System Component Parts Location (1 Of 21)

G07099517

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Engine Control System Component Parts Location (2 Of 21)

G07099518

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Engine Control System Component Parts Location (3 Of 21)

G07099519

Courtesy of NISSAN MOTOR CO., U.S.A.

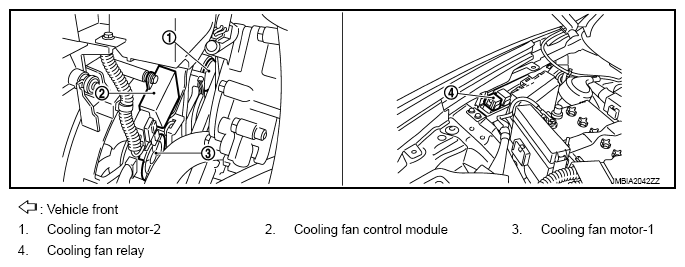

Fig 4: Identifying Engine Control System Component Parts Location (4 Of 21)

G07099520

Courtesy of NISSAN MOTOR CO., U.S.A.

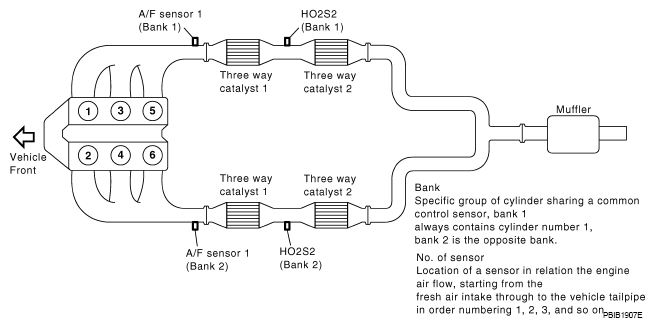

Fig 5: Identifying Engine Control System Component Parts Location (5 Of 21)

G07099521

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Engine Control System Component Parts Location (6 Of 21)

G07099522

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Engine Control System Component Parts Location (7 Of 21)

G07099523

Courtesy of NISSAN MOTOR CO., U.S.A.

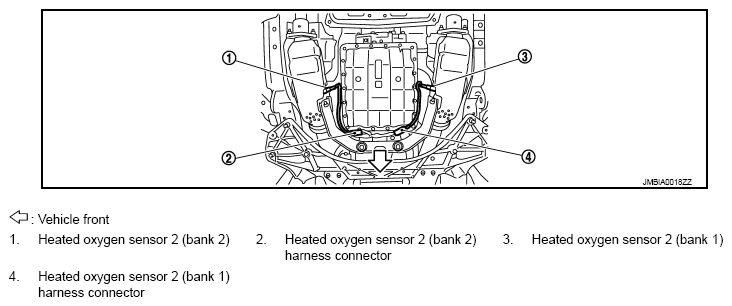

Fig 8: Identifying Engine Control System Component Parts Location (8 Of 21)

G07099524

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Engine Control System Component Parts Location (9 Of 21)

G07099525

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Engine Control System Component Parts Location (10 Of 21)

G07099526

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Engine Control System Component Parts Location (11 Of 21)

G07099527

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Engine Control System Component Parts Location (12 Of 21)

G07099528

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Engine Control System Component Parts Location (13 Of 21)

G07099529

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Engine Control System Component Parts Location (14 Of 21)

G07099530

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Identifying Engine Control System Component Parts Location (15 Of 21)

G07099531

Courtesy of NISSAN MOTOR CO., U.S.A.

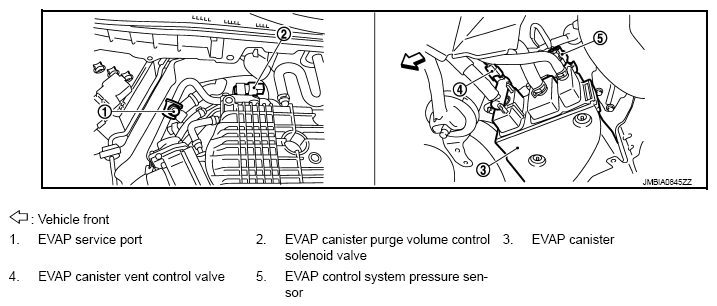

Fig 16: Identifying Engine Control System Component Parts Location (16 Of 21)

G07099532

Courtesy of NISSAN MOTOR CO., U.S.A.

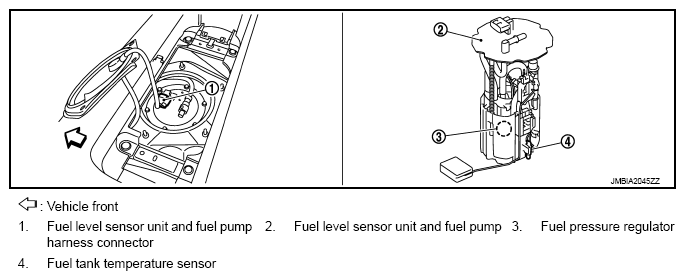

Fig 17: Identifying Engine Control System Component Parts Location (17 Of 21)

G07099533

Courtesy of NISSAN MOTOR CO., U.S.A.

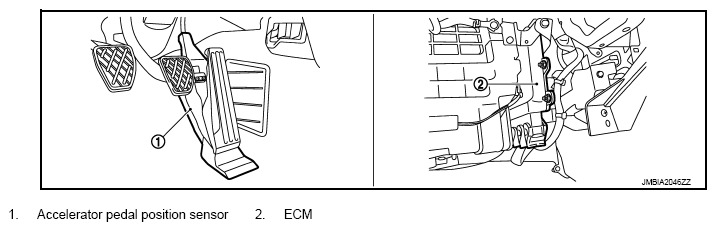

Fig 18: Identifying Engine Control System Component Parts Location (18 Of 21)

G07099534

Courtesy of NISSAN MOTOR CO., U.S.A.

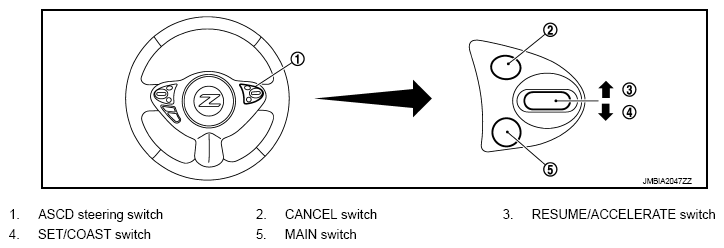

Fig 19: Identifying Engine Control System Component Parts Location (19 Of 21)

G07099535

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Engine Control System Component Parts Location (20 Of 21)

G07099536

Courtesy of NISSAN MOTOR CO., U.S.A.

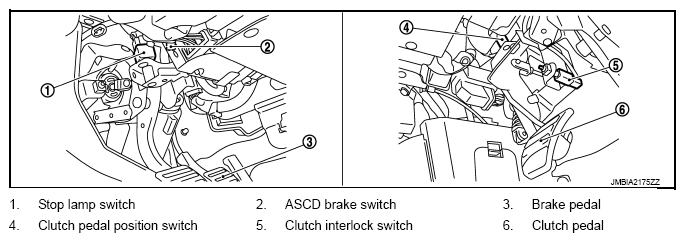

Fig 21: Identifying Engine Control System Component Parts Location (21 Of 21)

G07099537

Courtesy of NISSAN MOTOR CO., U.S.A.
