Component Parts Location

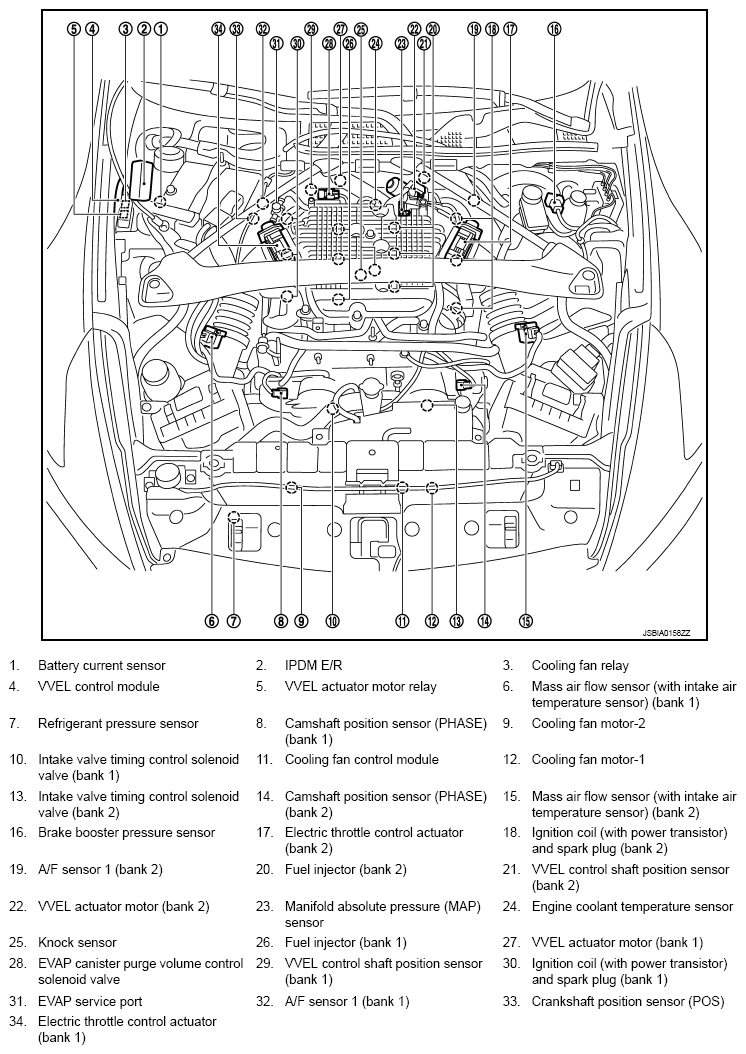

Fig 1: Identifying Intake Valve Timing Control Component Parts Location (1 Of 21)

G07099675

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Identifying Intake Valve Timing Control Component Parts Location (2 Of 21)

G07099676

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Intake Valve Timing Control Component Parts Location (3 Of 21)

G07099677

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying Intake Valve Timing Control Component Parts Location (4 Of 21)

G07099678

Courtesy of NISSAN MOTOR CO., U.S.A.

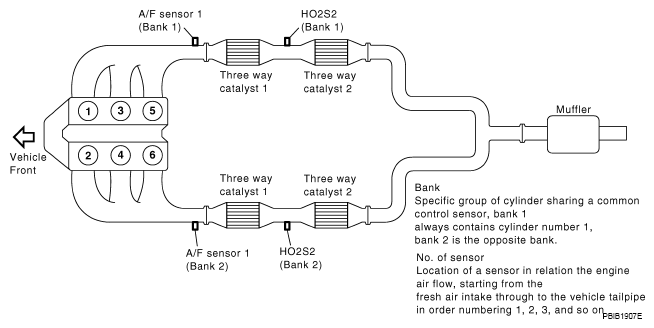

Fig 5: Identifying Intake Valve Timing Control Component Parts Location (5 Of 21)

G07099679

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Intake Valve Timing Control Component Parts Location (6 Of 21)

G07099680

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Intake Valve Timing Control Component Parts Location (7 Of 21)

G07099681

Courtesy of NISSAN MOTOR CO., U.S.A.

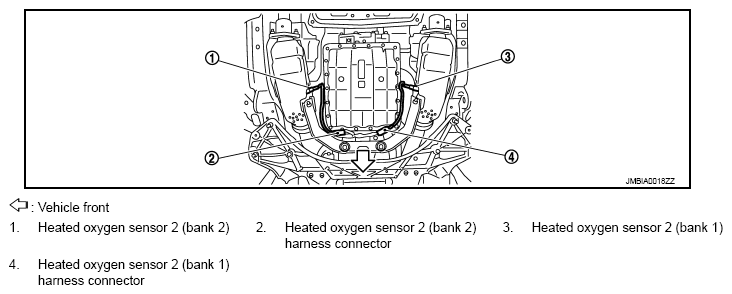

Fig 8: Identifying Intake Valve Timing Control Component Parts Location (8 Of 21)

G07099682

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Intake Valve Timing Control Component Parts Location (9 Of 21)

G07099683

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Intake Valve Timing Control Component Parts Location (10 Of 21)

G07099684

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Intake Valve Timing Control Component Parts Location (11 Of 21)

G07099685

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Identifying Intake Valve Timing Control Component Parts Location (12 Of 21)

G07099686

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Identifying Intake Valve Timing Control Component Parts Location (13 Of 21)

G07099687

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Identifying Intake Valve Timing Control Component Parts Location (14 Of 21)

G07099688

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Identifying Intake Valve Timing Control Component Parts Location (15 Of 21)

G07099689

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Identifying Intake Valve Timing Control Component Parts Location (16 Of 21)

G07099690

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Identifying Intake Valve Timing Control Component Parts Location (17 Of 21)

G07099691

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 18: Identifying Intake Valve Timing Control Component Parts Location (18 Of 21)

G07099692

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Identifying Intake Valve Timing Control Component Parts Location (19 Of 21)

G07099693

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Identifying Intake Valve Timing Control Component Parts Location (20 Of 21)

G07099694

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 21: Identifying Intake Valve Timing Control Component Parts Location (21 Of 21)

G07099695

Courtesy of NISSAN MOTOR CO., U.S.A.
