Component Parts Location

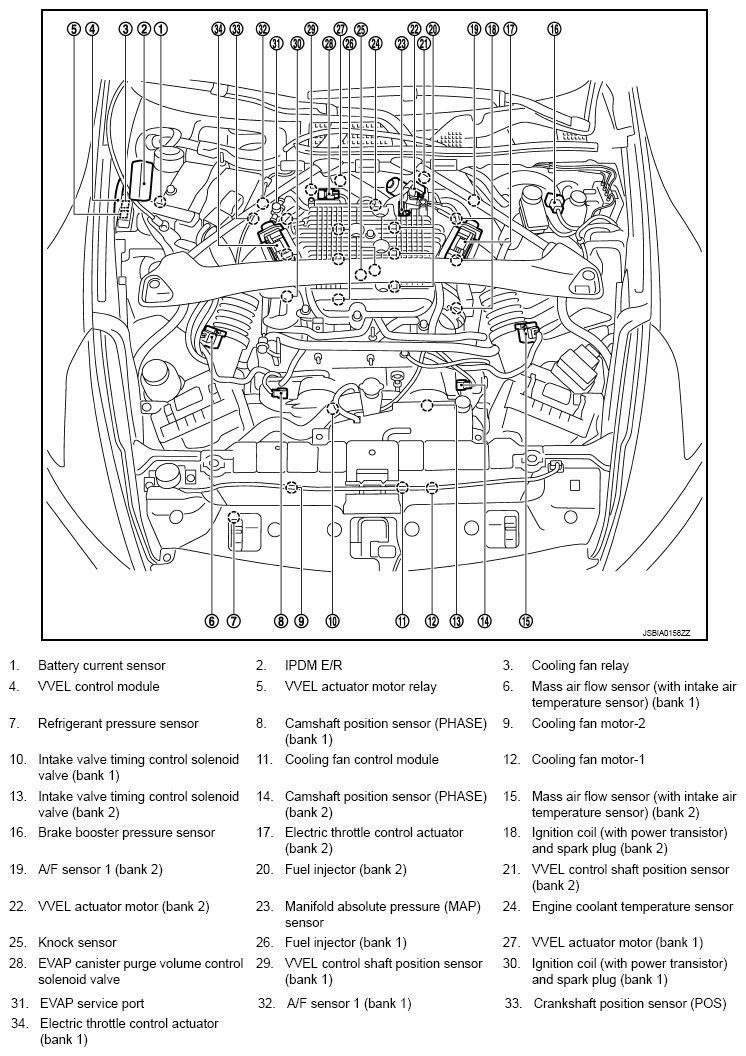

Fig 1: Identifying Synchrorev Match Mode Components Location (1 Of 21)

G07099720

Courtesy of NISSAN MOTOR CO., U.S.A.

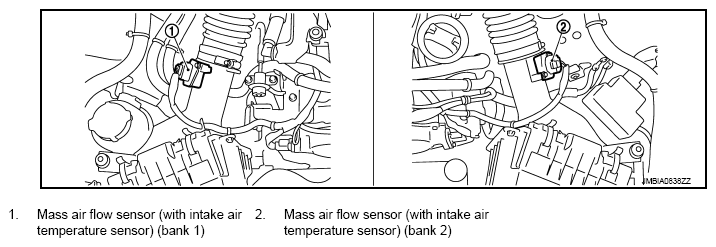

Fig 2: Identifying Synchrorev Match Mode Components Location (2 Of 21)

G07099721

Courtesy of NISSAN MOTOR CO., U.S.A.

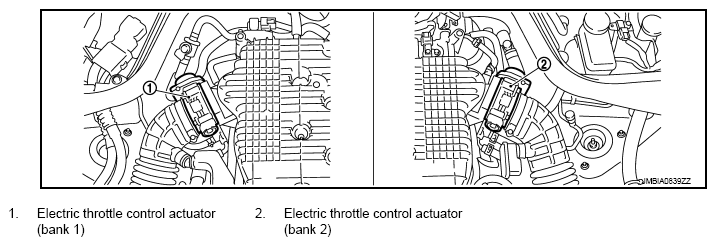

Fig 3: Identifying Synchrorev Match Mode Components Location (3 Of 21)

G07099722

Courtesy of NISSAN MOTOR CO., U.S.A.

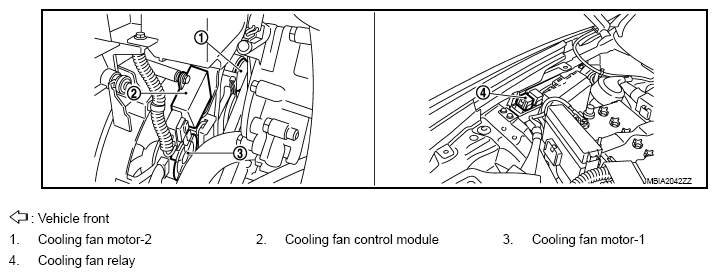

Fig 4: Identifying Synchrorev Match Mode Components Location (4 Of 21)

G07099723

Courtesy of NISSAN MOTOR CO., U.S.A.

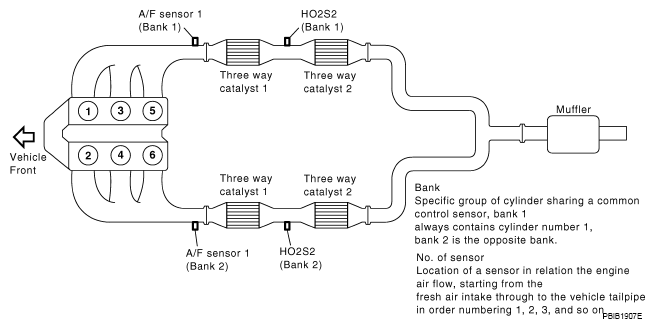

Fig 5: Identifying Synchrorev Match Mode Components Location (5 Of 21)

G07099724

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Synchrorev Match Mode Components Location (6 Of 21)

G07099725

Courtesy of NISSAN MOTOR CO., U.S.A.

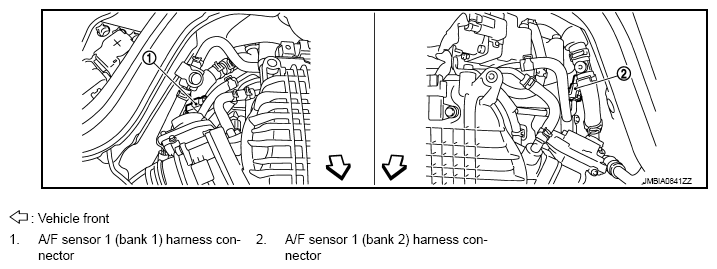

Fig 7: Identifying Synchrorev Match Mode Components Location (7 Of 21)

G07099726

Courtesy of NISSAN MOTOR CO., U.S.A.

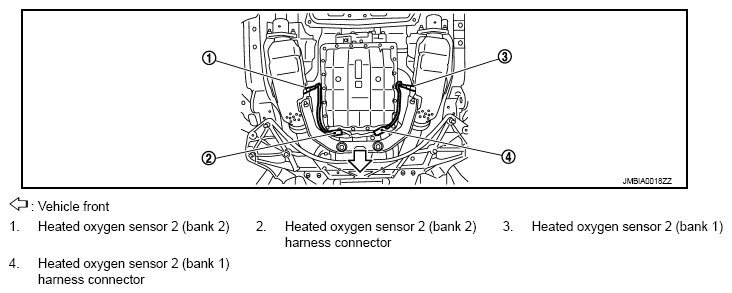

Fig 8: Identifying Synchrorev Match Mode Components Location (8 Of 21)

G07099727

Courtesy of NISSAN MOTOR CO., U.S.A.

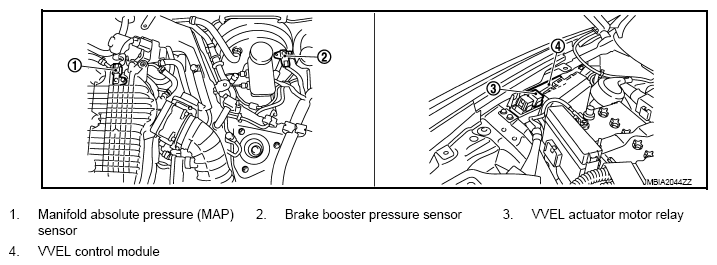

Fig 9: Identifying Synchrorev Match Mode Components Location (9 Of 21)

G07099728

Courtesy of NISSAN MOTOR CO., U.S.A.

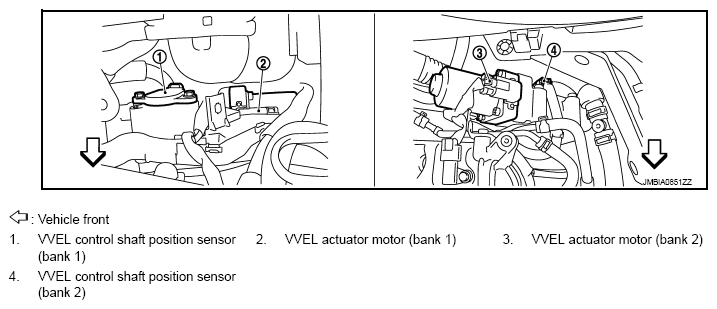

Fig 10: Identifying Synchrorev Match Mode Components Location (10 Of 21)

G07099729

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Synchrorev Match Mode Components Location (11 Of 21)

G07099730

Courtesy of NISSAN MOTOR CO., U.S.A.

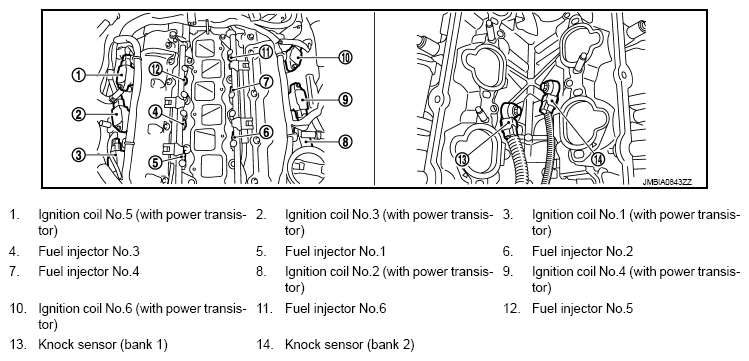

Fig 12: Identifying Synchrorev Match Mode Components Location (12 Of 21)

G07099731

Courtesy of NISSAN MOTOR CO., U.S.A.

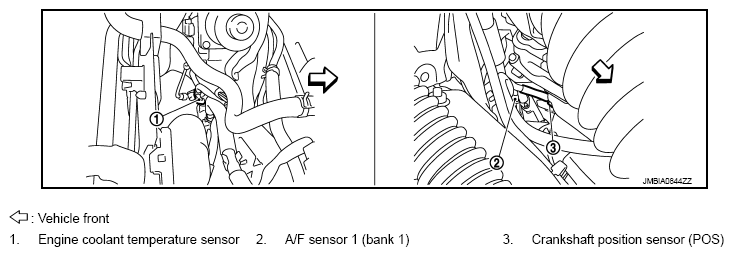

Fig 13: Identifying Synchrorev Match Mode Components Location (13 Of 21)

G07099732

Courtesy of NISSAN MOTOR CO., U.S.A.

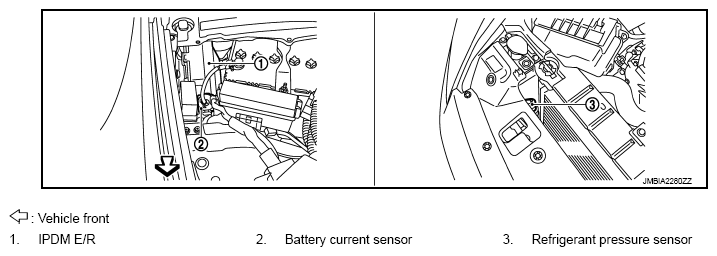

Fig 14: Identifying Synchrorev Match Mode Components Location (14 Of 21)

G07099733

Courtesy of NISSAN MOTOR CO., U.S.A.

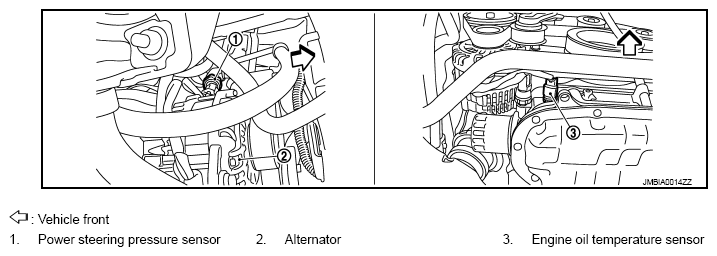

Fig 15: Identifying Synchrorev Match Mode Components Location (15 Of 21)

G07099734

Courtesy of NISSAN MOTOR CO., U.S.A.

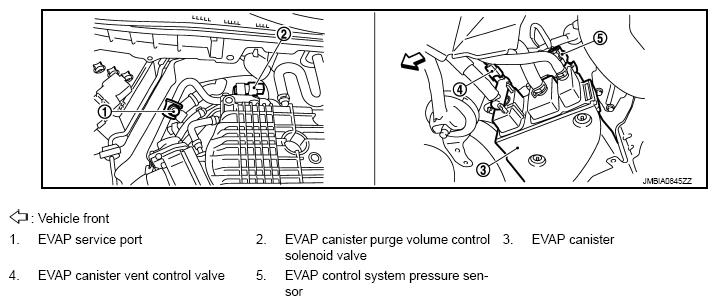

Fig 16: Identifying Synchrorev Match Mode Components Location (16 Of 21)

G07099735

Courtesy of NISSAN MOTOR CO., U.S.A.

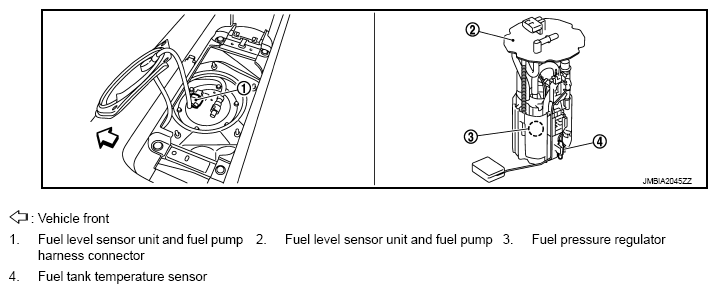

Fig 17: Identifying Synchrorev Match Mode Components Location (17 Of 21)

G07099736

Courtesy of NISSAN MOTOR CO., U.S.A.

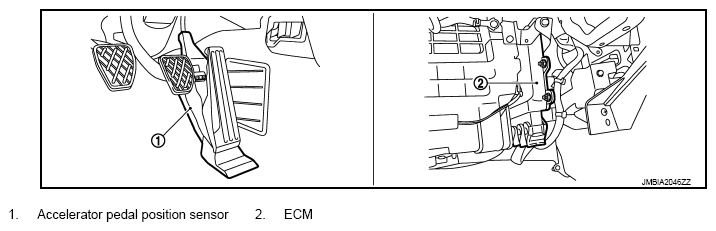

Fig 18: Identifying Synchrorev Match Mode Components Location (18 Of 21)

G07099737

Courtesy of NISSAN MOTOR CO., U.S.A.

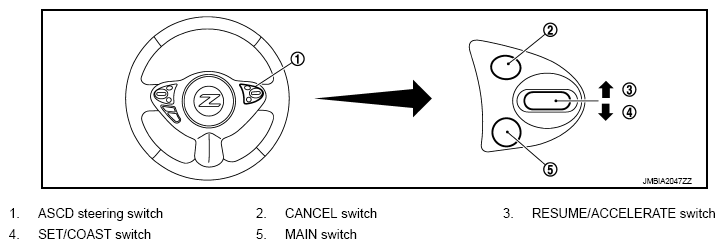

Fig 19: Identifying Synchrorev Match Mode Components Location (19 Of 21)

G07099738

Courtesy of NISSAN MOTOR CO., U.S.A.

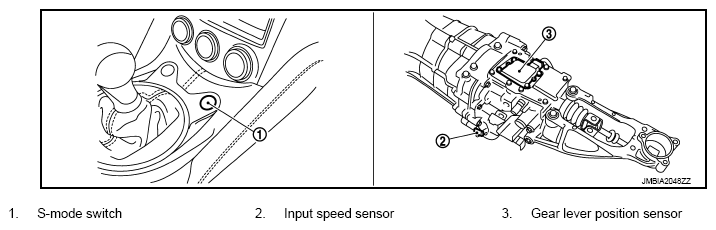

Fig 20: Identifying Synchrorev Match Mode Components Location (20 Of 21)

G07099739

Courtesy of NISSAN MOTOR CO., U.S.A.

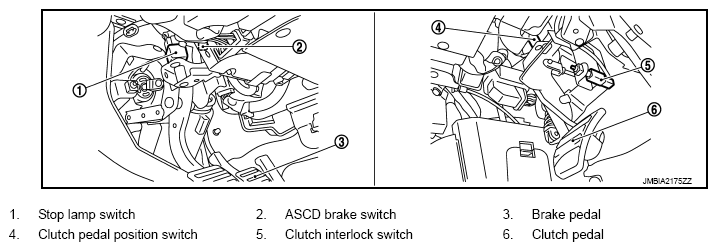

Fig 21: Identifying Synchrorev Match Mode Components Location (21 Of 21)

G07099740

Courtesy of NISSAN MOTOR CO., U.S.A.
