Component Parts Location

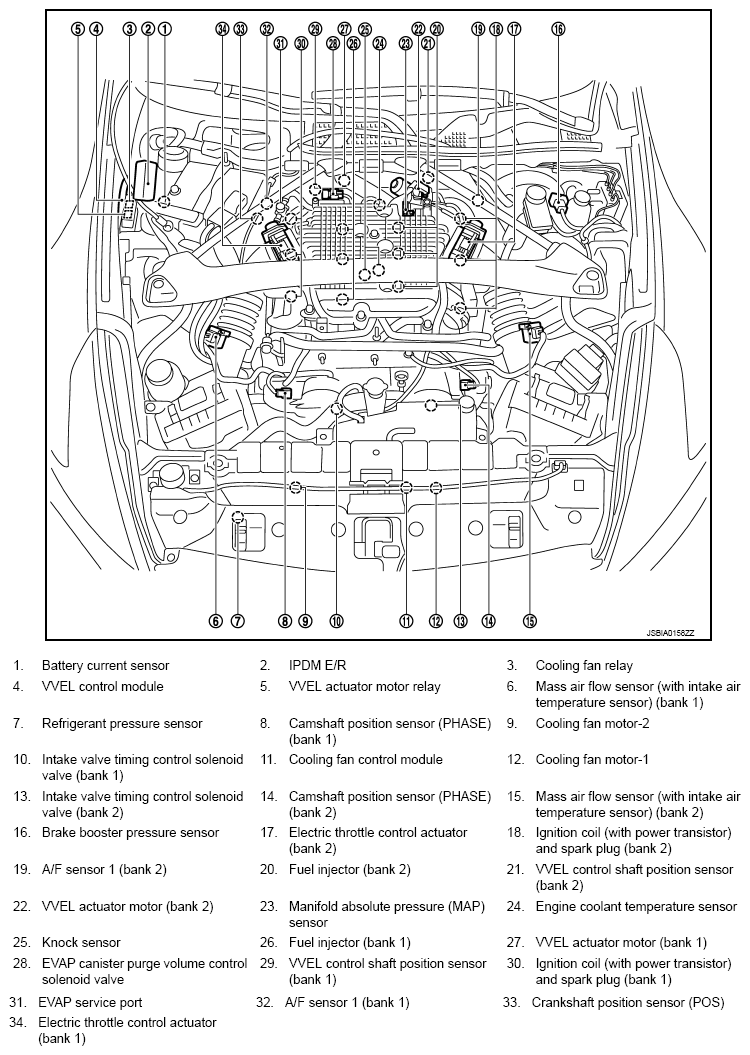

Fig 1: Identifying VVEL System Component Parts Location (1 Of 21)

G07099698

Courtesy of NISSAN MOTOR CO., U.S.A.

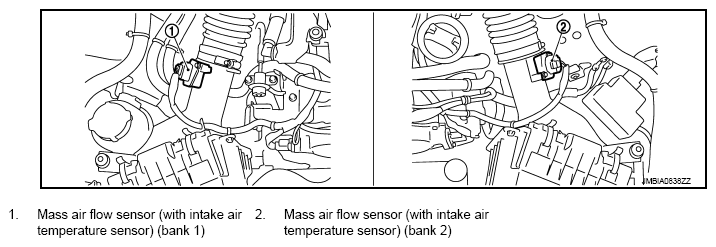

Fig 2: Identifying VVEL System Component Parts Location (2 Of 21)

G07099699

Courtesy of NISSAN MOTOR CO., U.S.A.

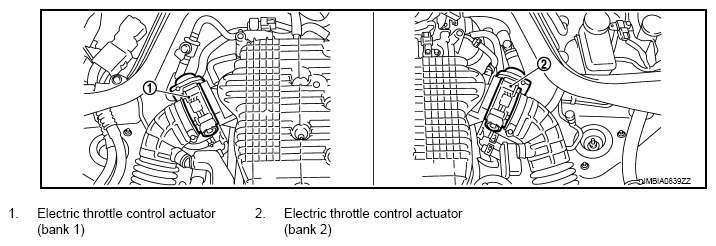

Fig 3: Identifying VVEL System Component Parts Location (3 Of 21)

G07099700

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Identifying VVEL System Component Parts Location (4 Of 21)

G07099701

Courtesy of NISSAN MOTOR CO., U.S.A.

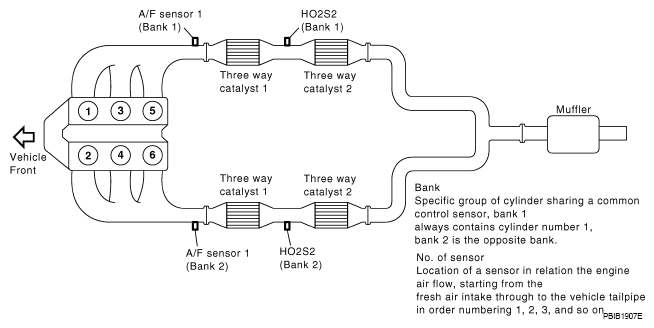

Fig 5: Identifying VVEL System Component Parts Location (5 Of 21)

G07099702

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying VVEL System Component Parts Location (6 Of 21)

G07099703

Courtesy of NISSAN MOTOR CO., U.S.A.

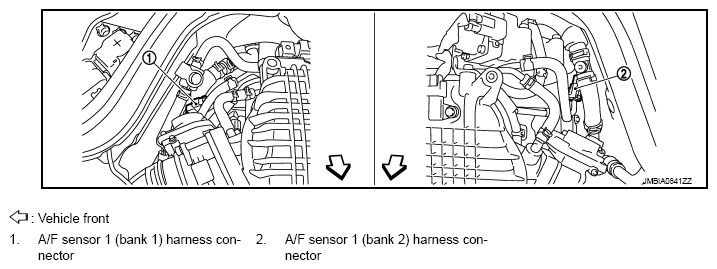

Fig 7: Identifying VVEL System Component Parts Location (7 Of 21)

G07099704

Courtesy of NISSAN MOTOR CO., U.S.A.

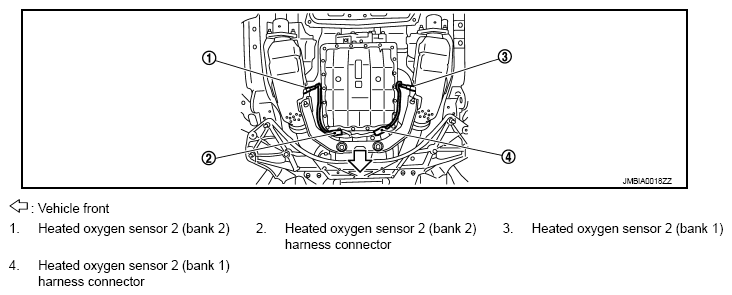

Fig 8: Identifying VVEL System Component Parts Location (8 Of 21)

G07099705

Courtesy of NISSAN MOTOR CO., U.S.A.

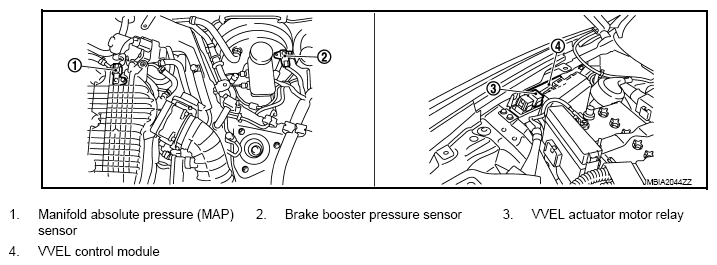

Fig 9: Identifying VVEL System Component Parts Location (9 Of 21)

G07099706

Courtesy of NISSAN MOTOR CO., U.S.A.

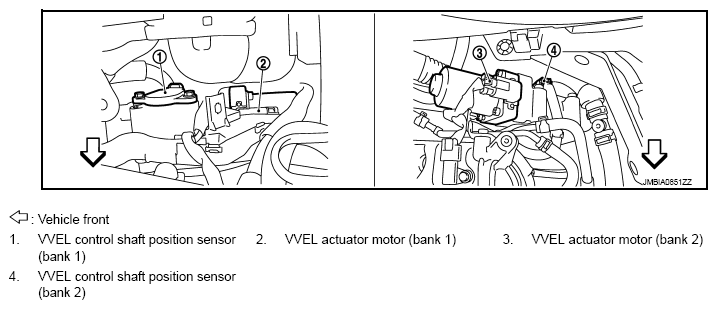

Fig 10: Identifying VVEL System Component Parts Location (10 Of 21)

G07099707

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying VVEL System Component Parts Location (11 Of 21)

G07099708

Courtesy of NISSAN MOTOR CO., U.S.A.

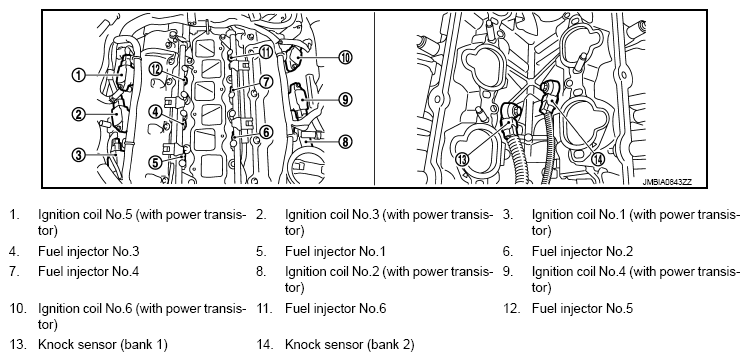

Fig 12: Identifying VVEL System Component Parts Location (12 Of 21)

G07099709

Courtesy of NISSAN MOTOR CO., U.S.A.

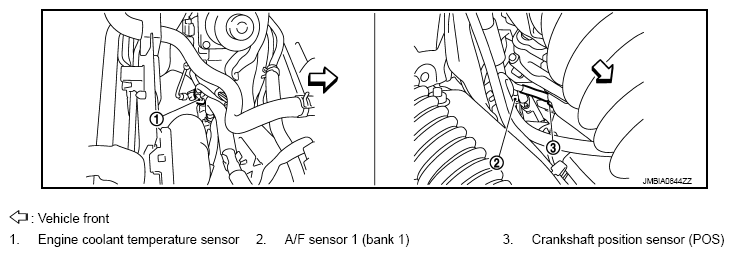

Fig 13: Identifying VVEL System Component Parts Location (13 Of 21)

G07099710

Courtesy of NISSAN MOTOR CO., U.S.A.

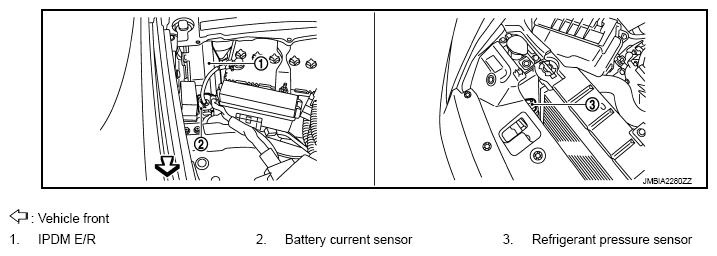

Fig 14: Identifying VVEL System Component Parts Location (14 Of 21)

G07099711

Courtesy of NISSAN MOTOR CO., U.S.A.

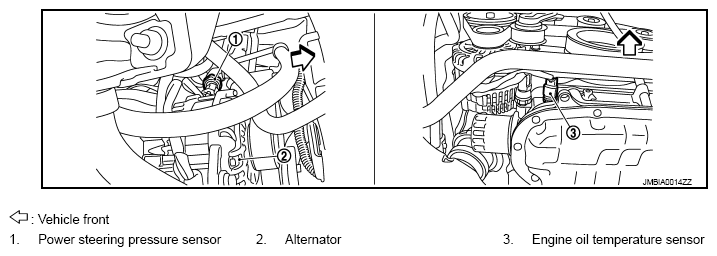

Fig 15: Identifying VVEL System Component Parts Location (15 Of 21)

G07099712

Courtesy of NISSAN MOTOR CO., U.S.A.

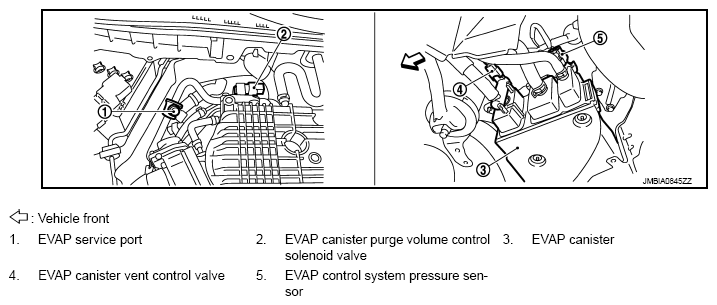

Fig 16: Identifying VVEL System Component Parts Location (16 Of 21)

G07099713

Courtesy of NISSAN MOTOR CO., U.S.A.

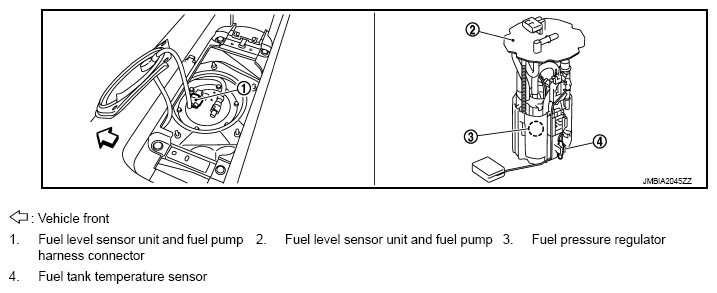

Fig 17: Identifying VVEL System Component Parts Location (17 Of 21)

G07099714

Courtesy of NISSAN MOTOR CO., U.S.A.

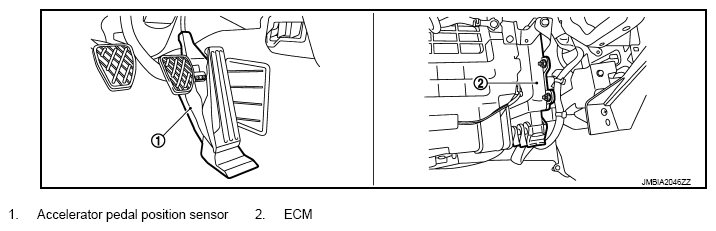

Fig 18: Identifying VVEL System Component Parts Location (18 Of 21)

G07099715

Courtesy of NISSAN MOTOR CO., U.S.A.

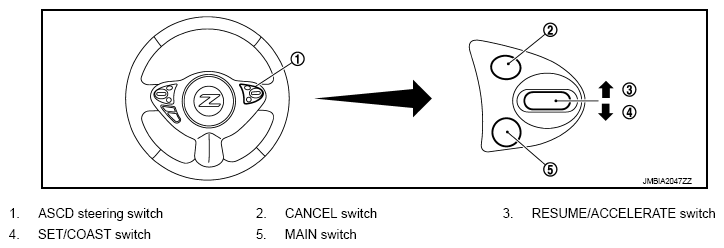

Fig 19: Identifying VVEL System Component Parts Location (19 Of 21)

G07099716

Courtesy of NISSAN MOTOR CO., U.S.A.

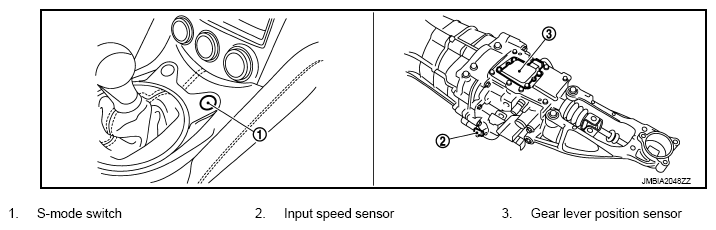

Fig 20: Identifying VVEL System Component Parts Location (20 Of 21)

G07099717

Courtesy of NISSAN MOTOR CO., U.S.A.

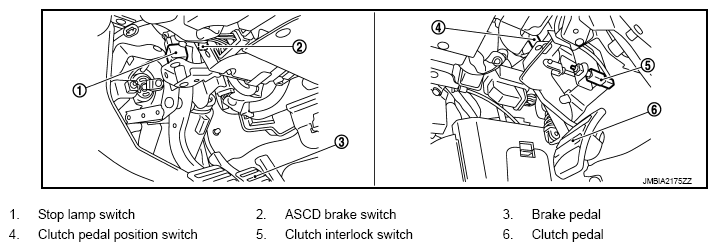

Fig 21: Identifying VVEL System Component Parts Location (21 Of 21)

G07099718

Courtesy of NISSAN MOTOR CO., U.S.A.
