Disassembly and Assembly: Notes

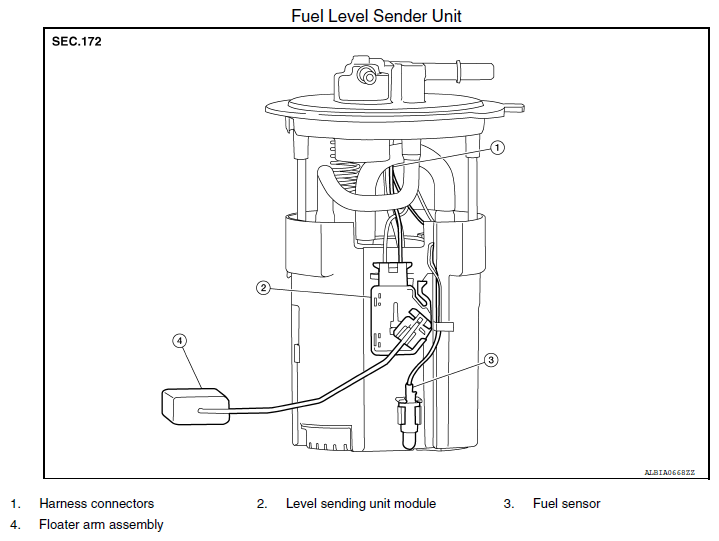

Fig 1: Identifying Fuel Sensor, Harness Connector, Level Sending Unit Module And Floater Arm Assembly
G07000103Courtesy of NISSAN MOTOR CO., U.S.A.
