System - Basic Engine Control System

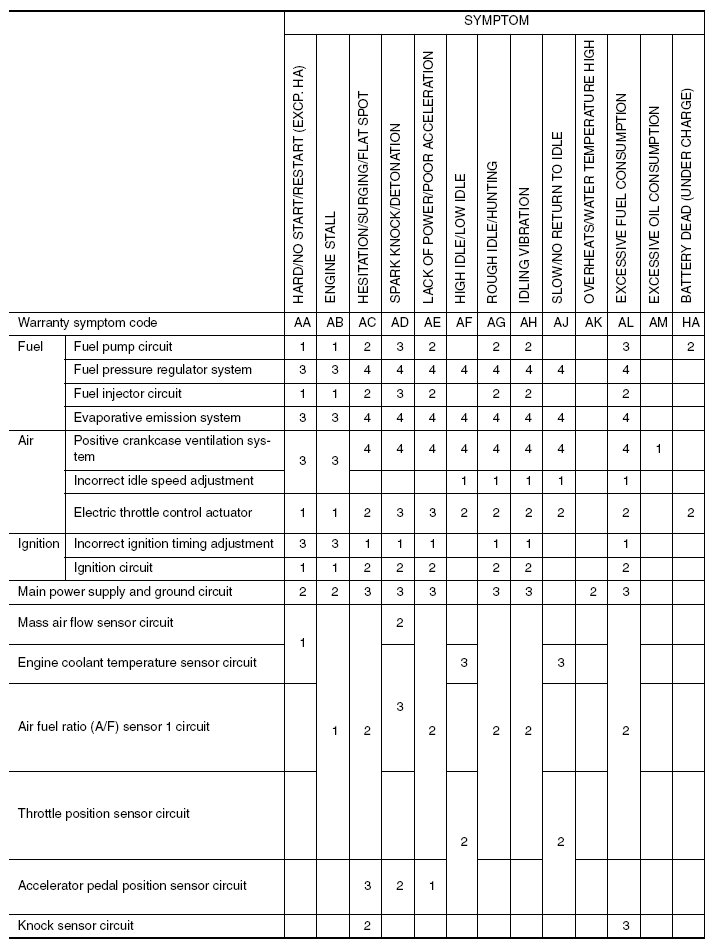

Fig 1: Engine Control System Symptom Table (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

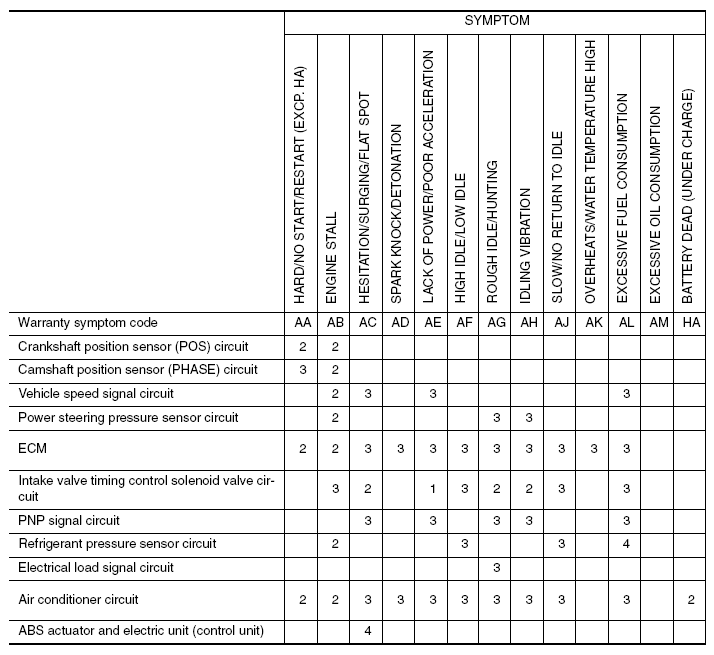

Fig 2: Engine Control System Symptom Table (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
