Exploded View

WARNING: This page is about a different variant/trim than selected.

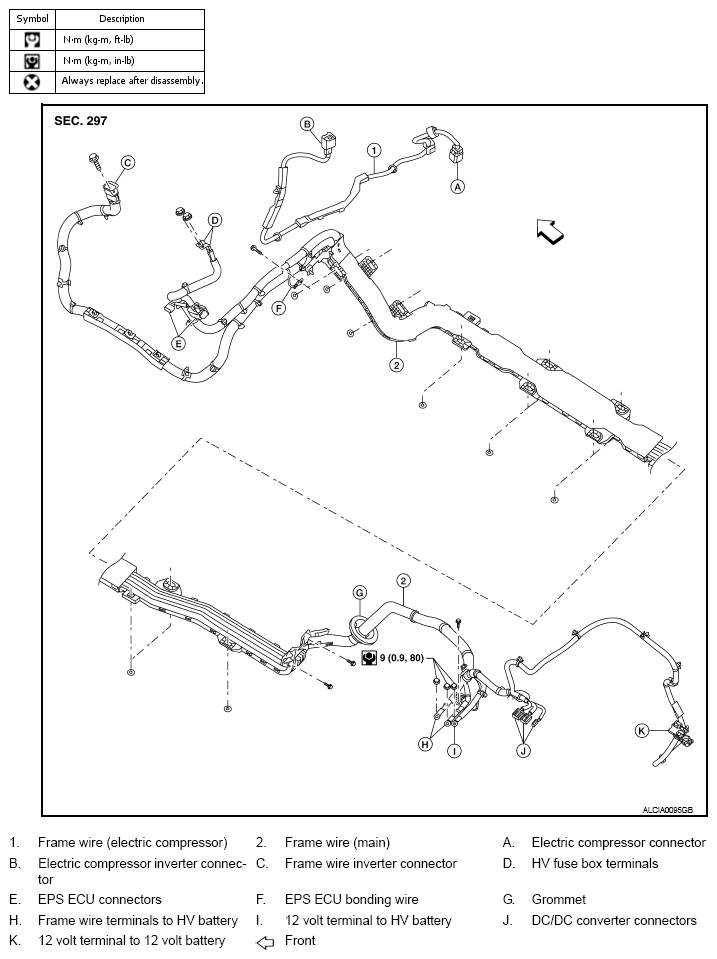

Fig 1: Exploded View Of Frame Wire Components With Torque Specification
G06985234Courtesy of NISSAN MOTOR CO.
