Exploded View

WARNING: This page is about a different variant/trim than selected.

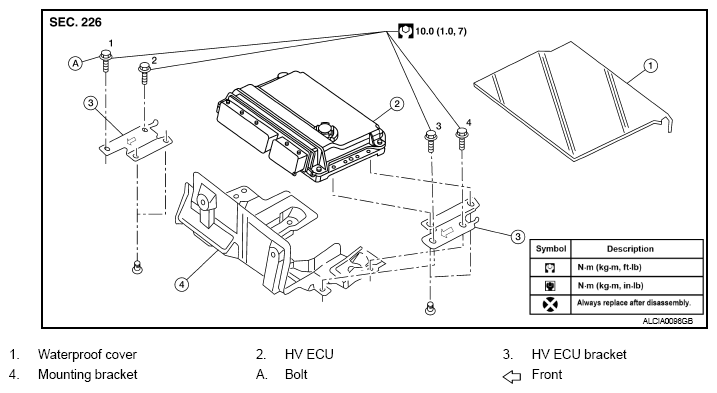

Fig 1: Exploded View Of HV ECU Components With Torque Specifications
G06985226Courtesy of NISSAN MOTOR CO.
