DTC P2014: Tumble Control Valve Position Sensor: Description

Tumble control valve position sensor is built into the tumble control valve actuator (2).

• Intake manifold adapter (1)
• Tumble control valve (2)

The sensor consists of a permanent magnet and Hall IC. It senses the valve shaft movement and feeds the voltage signals to the ECM.

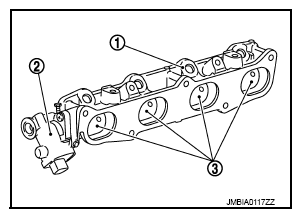

Fig 1: Identifying Intake Manifold Adapter, Tumble Control Valve Actuator And Tumble Control Valve

Courtesy of NISSAN MOTOR CO., U.S.A.
