WARNING FUNCTION: System Description

OPERATION DESCRIPTION

The warning function are as per the following items and are given to the user as warning information and warnings using combinations of Intelligent Key warning buzzer, combination meter buzzer, KEY warning lamp, shift P warning lamp and engine start operation indicator lamp.

Intelligent Key system malfunction
OFF position warning
P position warning
ACC warning
Take away warning
Door lock operation warning
Engine start information
Intelligent Key low battery warning
Key ID warning

OPERATION CONDITION

Once the following condition from below is established, alert or warning is executed.

OPERATION CONDITION CHART

Warning/Information functions

Operation procedure

Intelligent Key system malfunction

When a malfunction is detected on BCM, "KEY" warning lamp illuminates

OFF position warning

For internal

Ignition switch: ACC position
Door switch (driver side): ON (Door is open)

For external⁽¹⁾

OFF position warning (For internal) is in active mode, driver side door is closed

NOTE: OFF position (For external) active only when each of the sequence occurs as below: P position warning → ACC warning → OFF position warning (For internal) → OFF position warning (For internal)

P position warning⁽¹⁾

For internal

Shift position: Except P position
Engine is running to stopped (Ignition switch is ON to OFF)

For external

Warning is activated when driver door is closed from the open position while the P position warning (for inside vehicle) is ON

ACC warning⁽¹⁾

When P position warning is in active mode, shift position changes P position. Ignition switch: ACC position

Take away warning

Door is open to close

Ignition switch: Except LOCK position
Door switch: ON to OFF (Door is open to close)
Intelligent Key cannot be detected inside the vehicle

Door is open

Door switch: ON (Door is open)
Key ID verification every 5 seconds when registered Intelligent Key cannot be detected inside the vehicle

Push button-ignition switch operation

Ignition switch: Except LOCK position
Press push-button ignition switch
Intelligent Key cannot be detected inside the vehicle

Door lock operation warning

When door lock operation is requested while door lock operating condition of door request switch not satisfied

Engine start information

Ignition switch is ON position

Ignition switch: ON position
Shift position: P position⁽¹⁾
Engine is stopped

Ignition switch is except ON position

Ignition switch: Except ON position
Shift position: P position⁽¹⁾
Intelligent Key can be detected inside the vehicle

Intelligent Key low battery warning

When Intelligent Key is low battery, BCM is detected after ignition switch is turned ON

Key ID warning

When registered intelligent Key cannot be detected inside the vehicle after ignition switch is turned ON

⁽¹⁾	M/T models do not apply.

WARNING METHOD

The following table shows the alarm or warning methods with chime.

WARNING METHOD REFERENCE CHART

Warning/Information functions

"KEY" warning lamp

Shift P warning lamp

Warning chime

Engine start operation indicator lamp

Combination meter buzzer

Intelligent Key warning buzzer

Intelligent Key system malfunction

Indicate

OFF position warning

For internal

Activate

For external⁽¹⁾

Activate

P position warning⁽¹⁾

For internal

Blink (yellow)

Indicate

Activate

For external

Active

ACC warning⁽¹⁾

Activate

Take away warning

Door is open to close

Blink (yellow)

Activate

Door is open

Push-ignition switch operation

Activate

Door lock operation warning

Activate

Key ID warning

Blink (yellow)

Engine start information

Indicate

Intelligent Key low battery warning

Blink (green)

⁽¹⁾	M/T models do not apply.

LIST OF OPERATION RELATED PARTS

Parts marked with x are the parts related to operation.

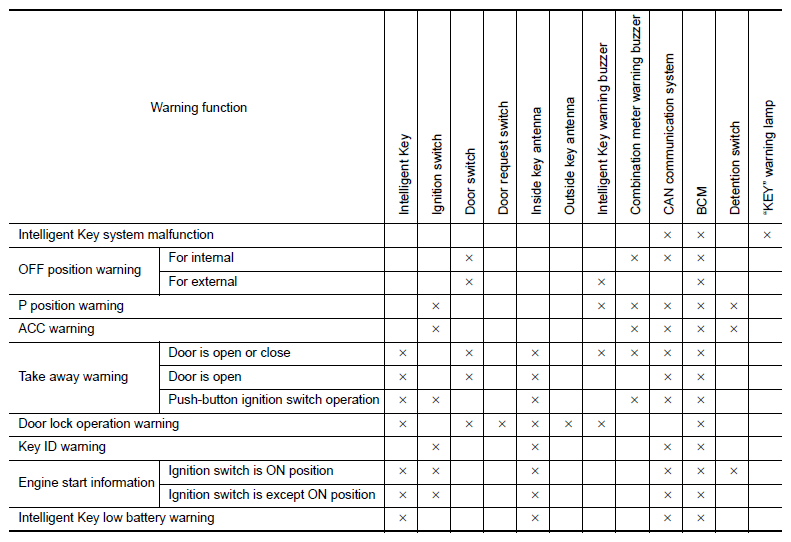

Fig 1: Warning Function Chart
