Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Communication Devices
>>
Body Control System
>>
[With Intelligent Key System]
>>
System Description
>>
Combination Switch Reading System
>>
System Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
System Diagram

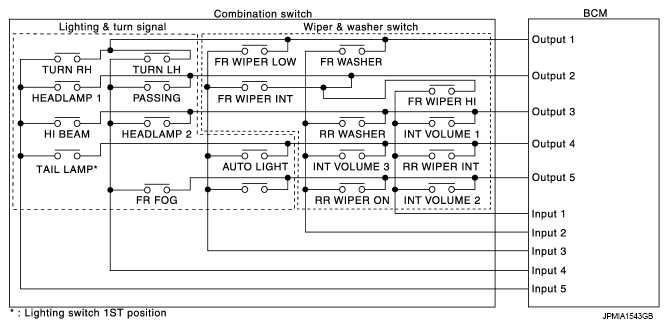

Fig 1: Combination Switch Reading System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
