Component Inspection (Fuel filler cap)

1. Turn ignition switch OFF.
2. Remove fuel filler cap.
3. Wipe clean valve housing.

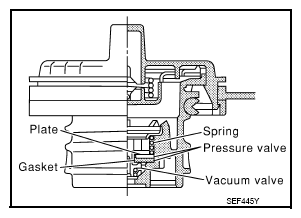

   Fig 1: Identifying Pressure Valve, Vacuum Valve, Spring, Gasket And Plate

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Install fuel filler cap adapter (commercial service tool) to fuel filler cap.
5. Check valve opening pressure and vacuum.

   Pressure: 15.3 - 20.0 kPa (0.156 - 0.204 kg/cm ²  , 2.22 - 2.90 psi)

   Vacuum: -6.0 to -3.3 kPa (-0.061 to -0.034 kg/cm ²  , -0.87 to -0.48 psi)

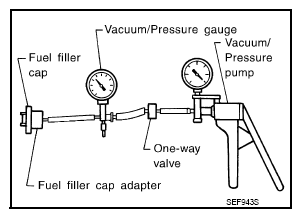

   Fig 2: Checking Valve Opening Pressure And Vacuum

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Is the inspection result normal?

   YES: INSPECTION END

   NO: Go to 2.

Replace fuel filler cap.

INSPECTION END
