Engine Control System: Wiring Diagram

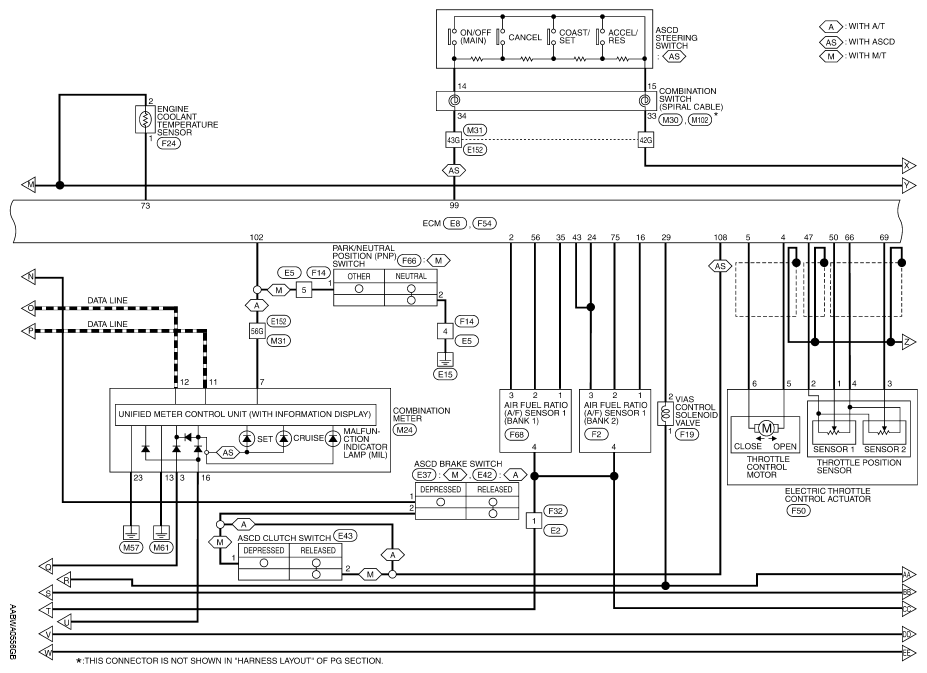

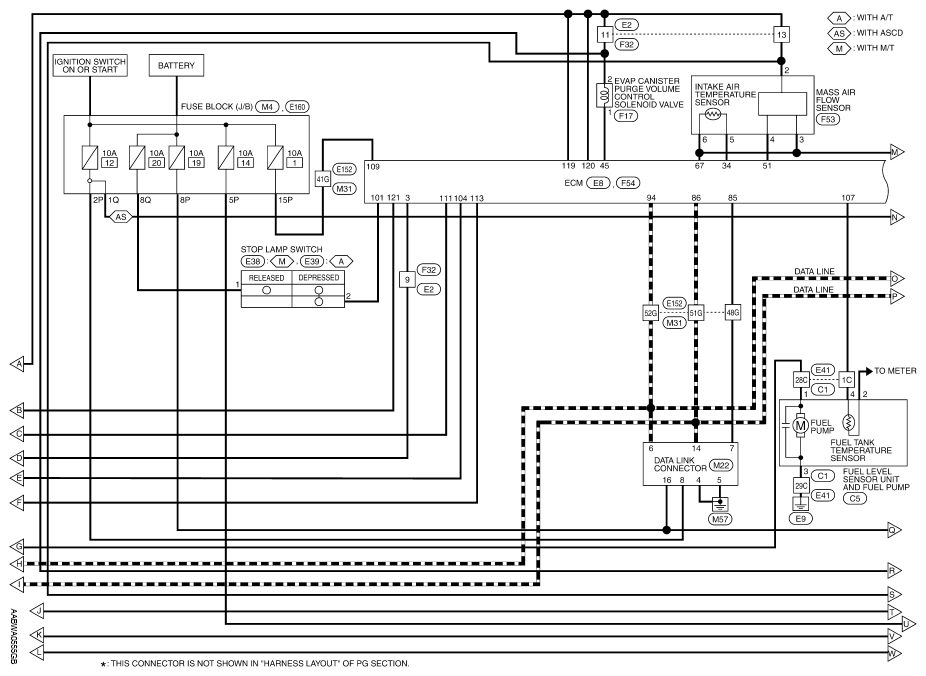

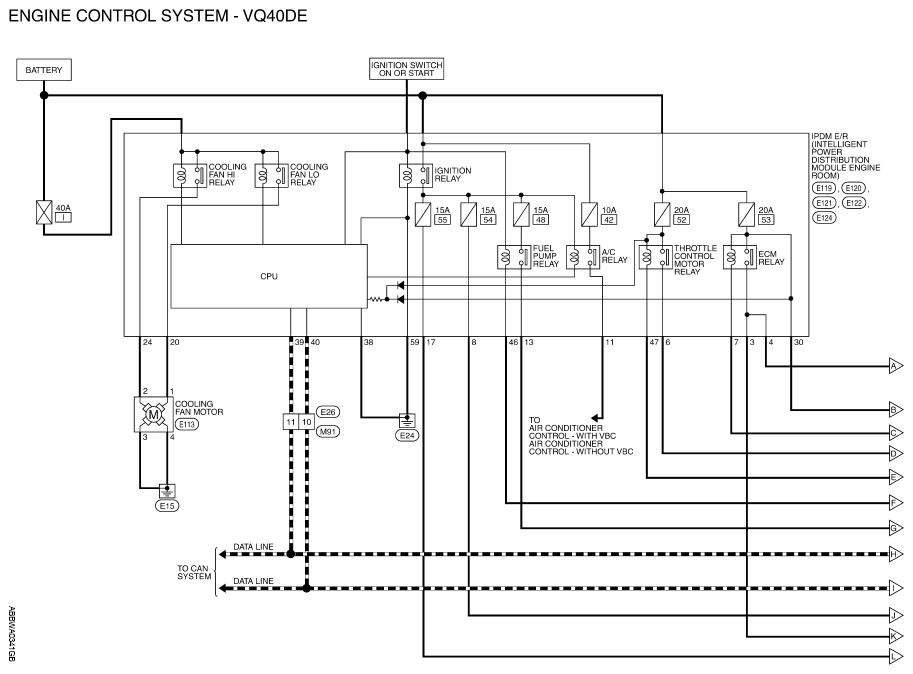

Fig 1: Engine Control System - Wiring Diagram (1 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

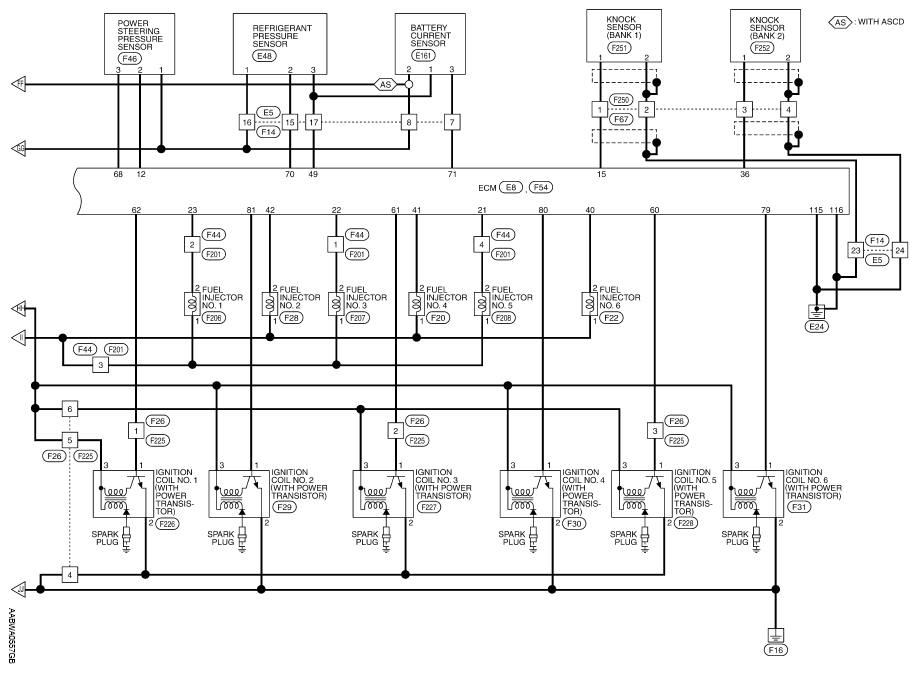

Fig 2: Engine Control System - Wiring Diagram (2 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Engine Control System - Wiring Diagram (3 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

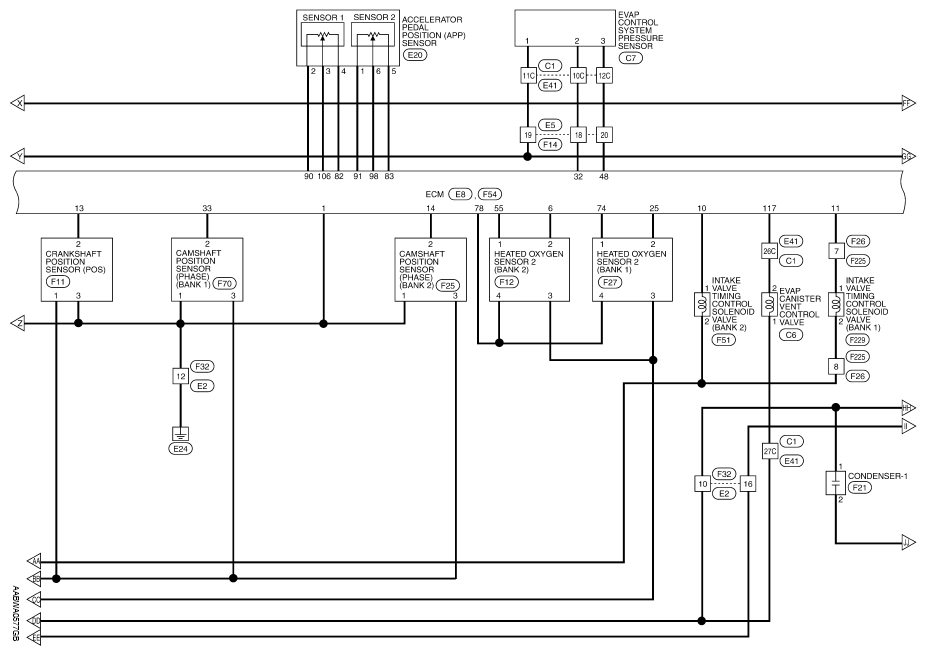

Fig 4: Engine Control System - Wiring Diagram (4 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 5: Engine Control System - Wiring Diagram (5 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

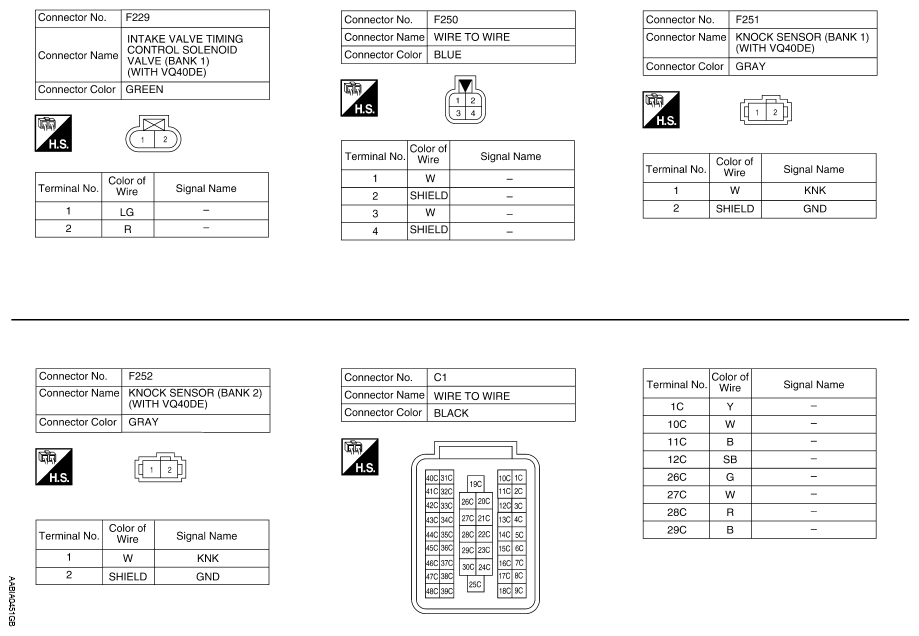

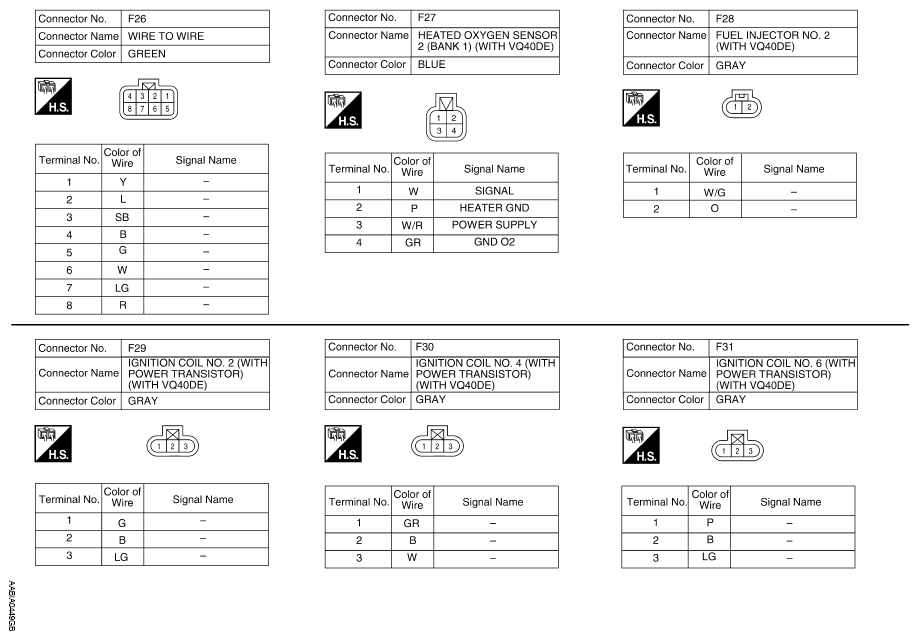

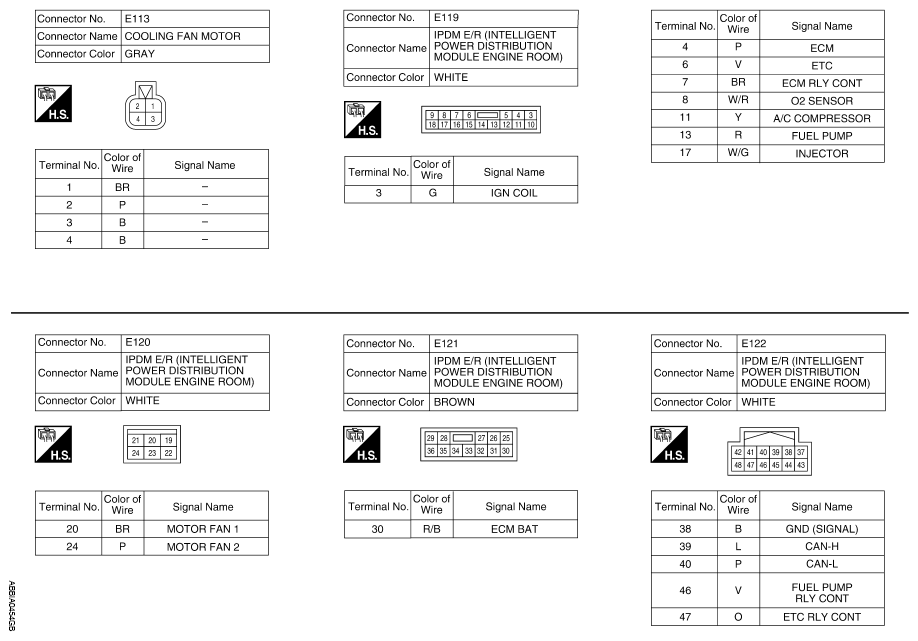

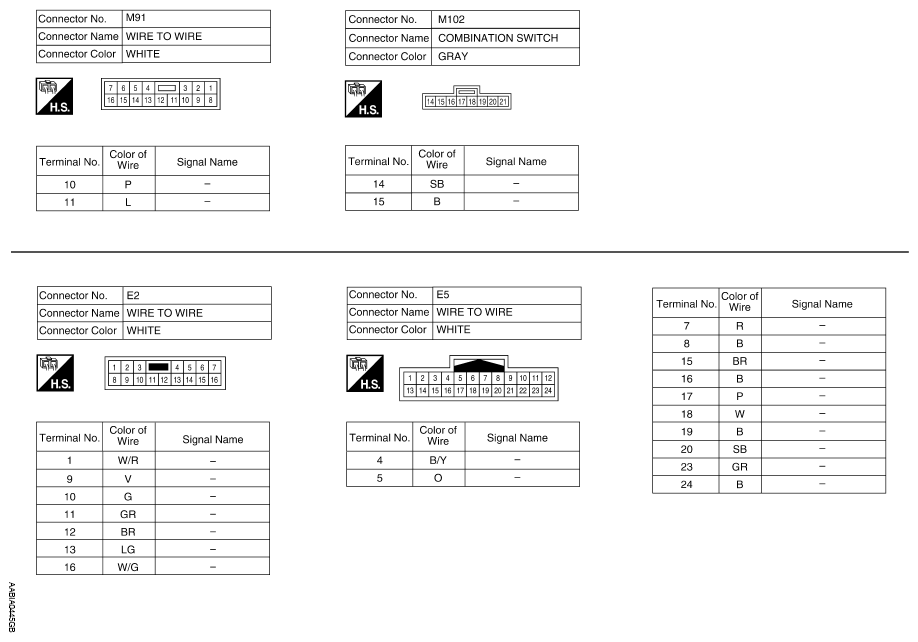

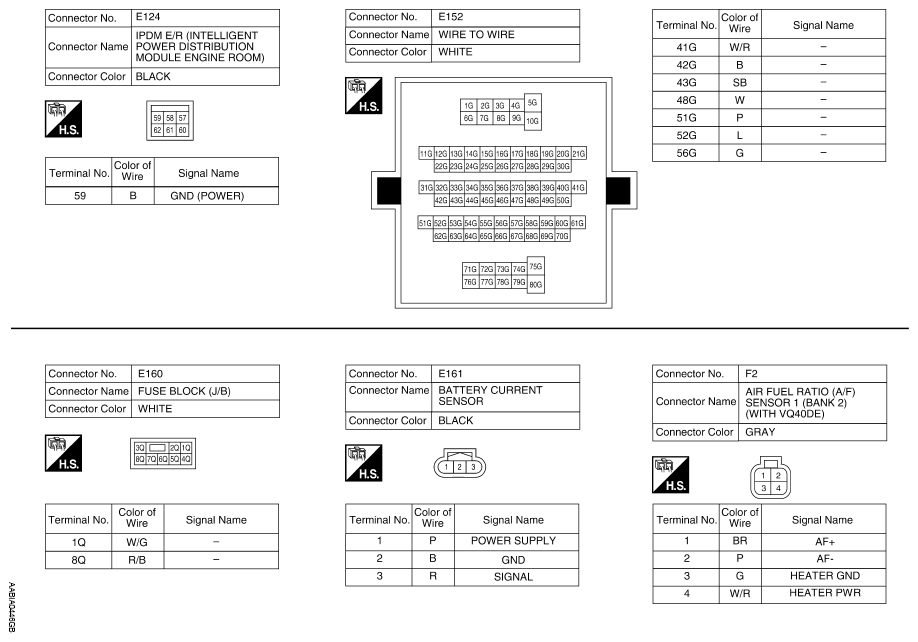

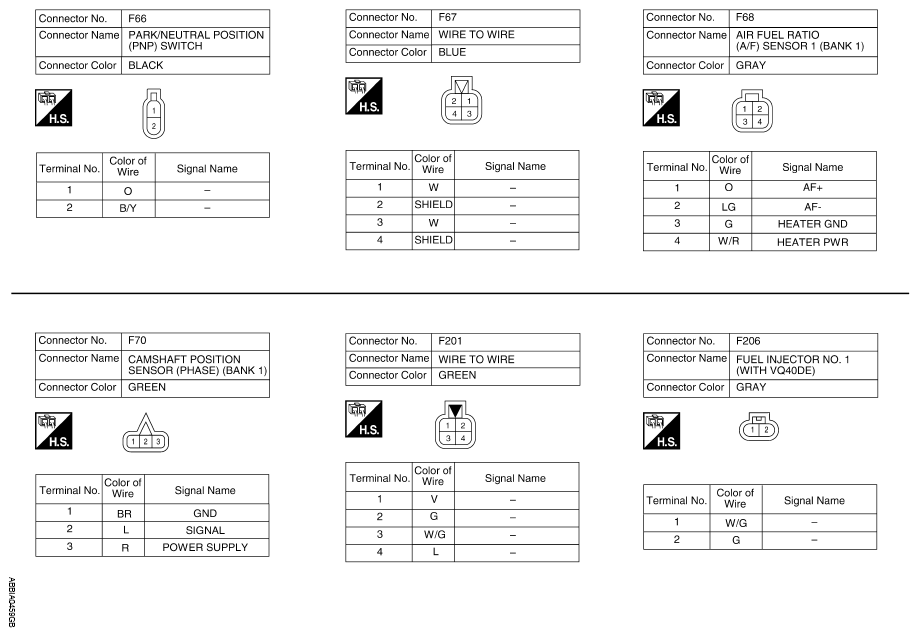

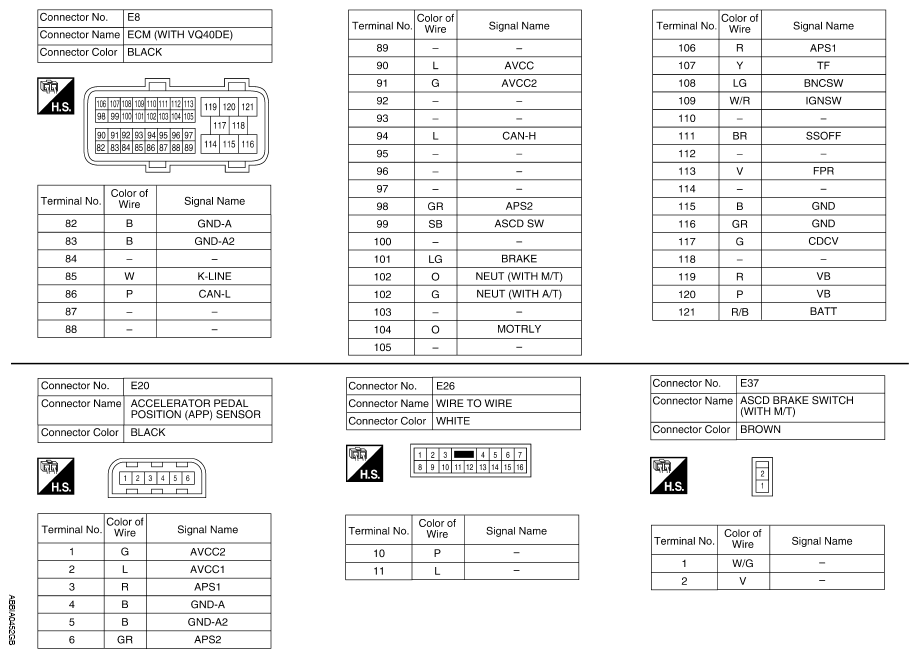

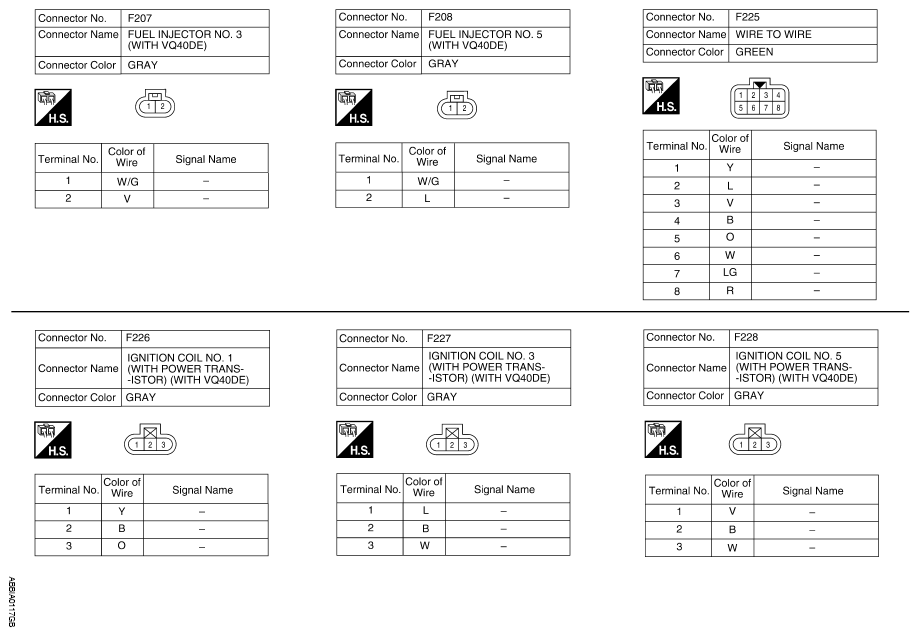

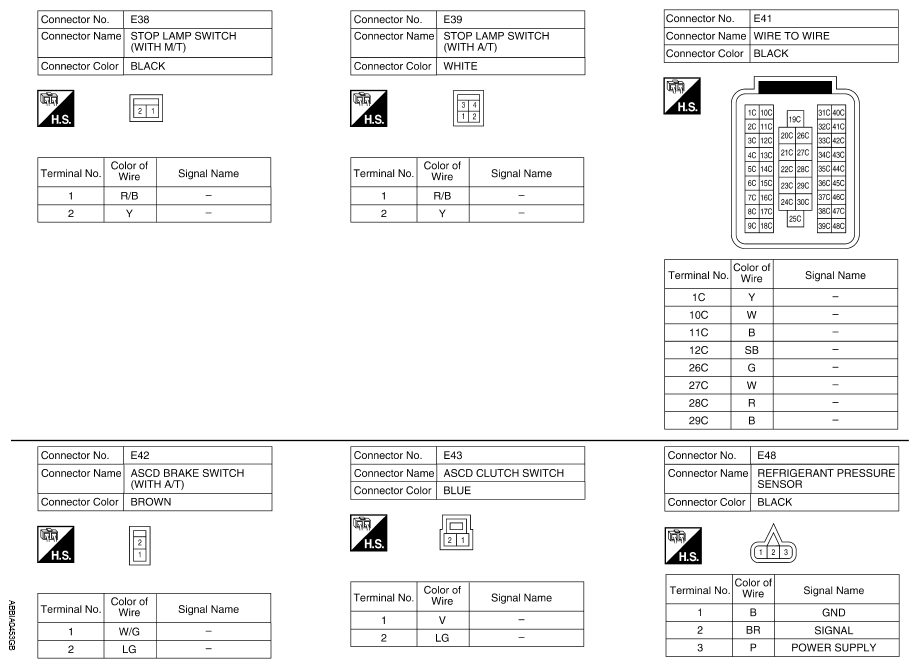

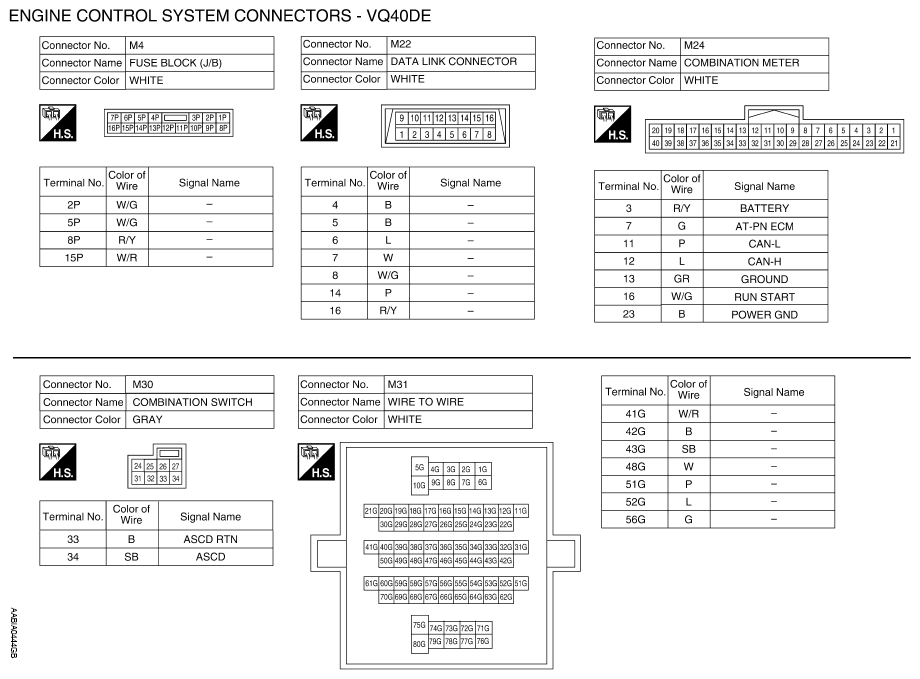

Fig 6: Identifying Engine Control System Connector Terminals (1 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 7: Identifying Engine Control System Connector Terminals (2 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 8: Identifying Engine Control System Connector Terminals (3 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 9: Identifying Engine Control System Connector Terminals (4 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 10: Identifying Engine Control System Connector Terminals (5 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 11: Identifying Engine Control System Connector Terminals (6 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.

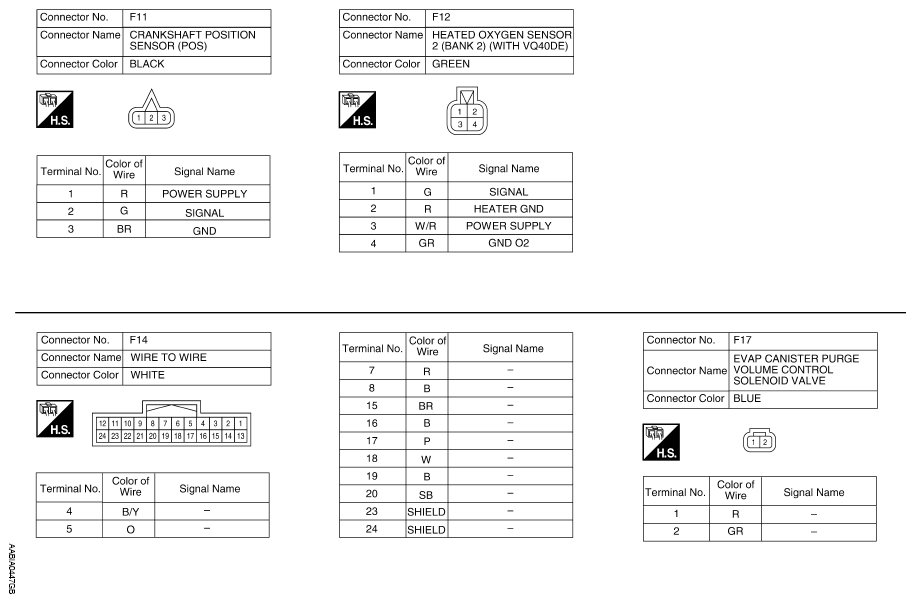

Fig 12: Identifying Engine Control System Connector Terminals (7 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.

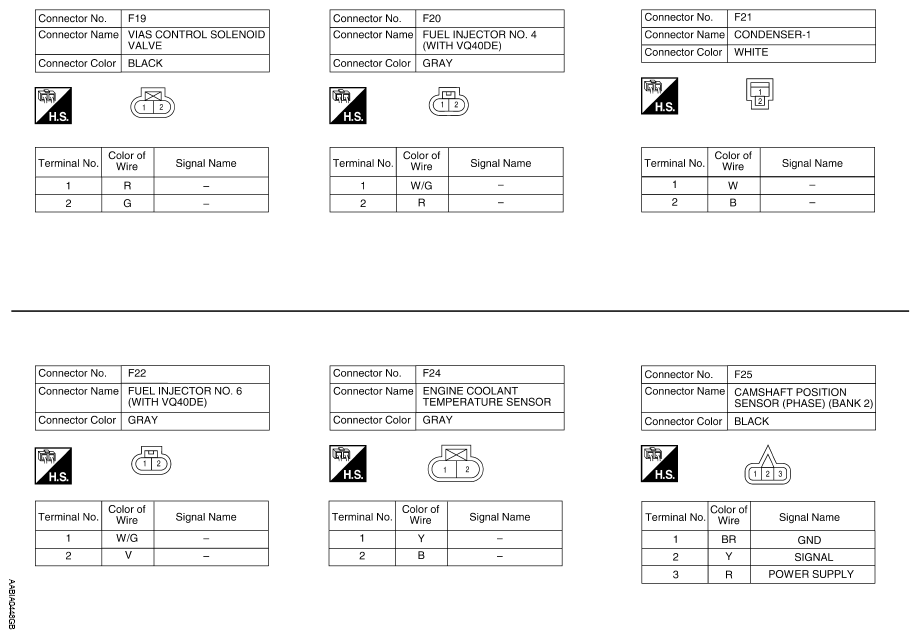

Fig 13: Identifying Engine Control System Connector Terminals (8 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 14: Identifying Engine Control System Connector Terminals (9 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.

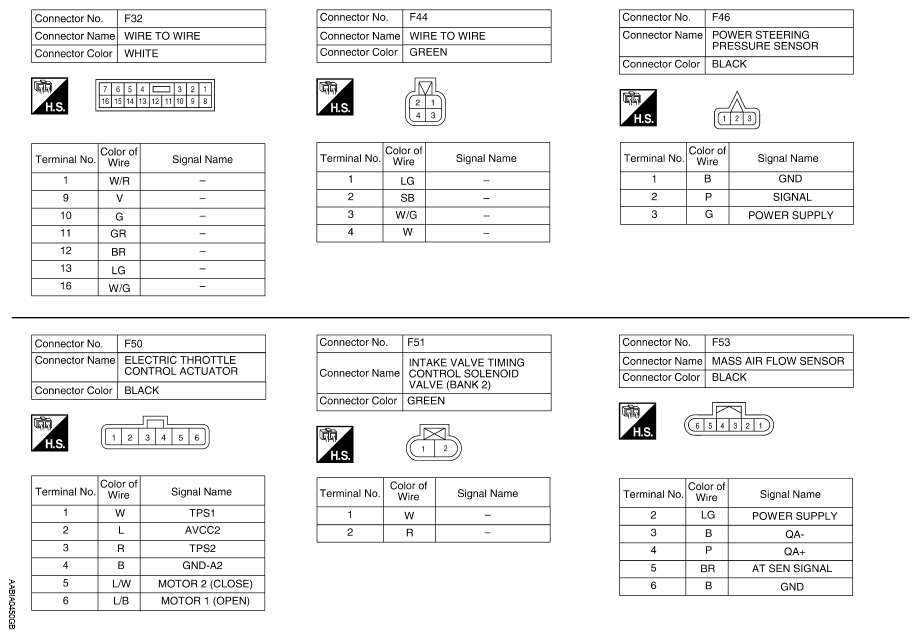

Fig 15: Identifying Engine Control System Connector Terminals (10 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.

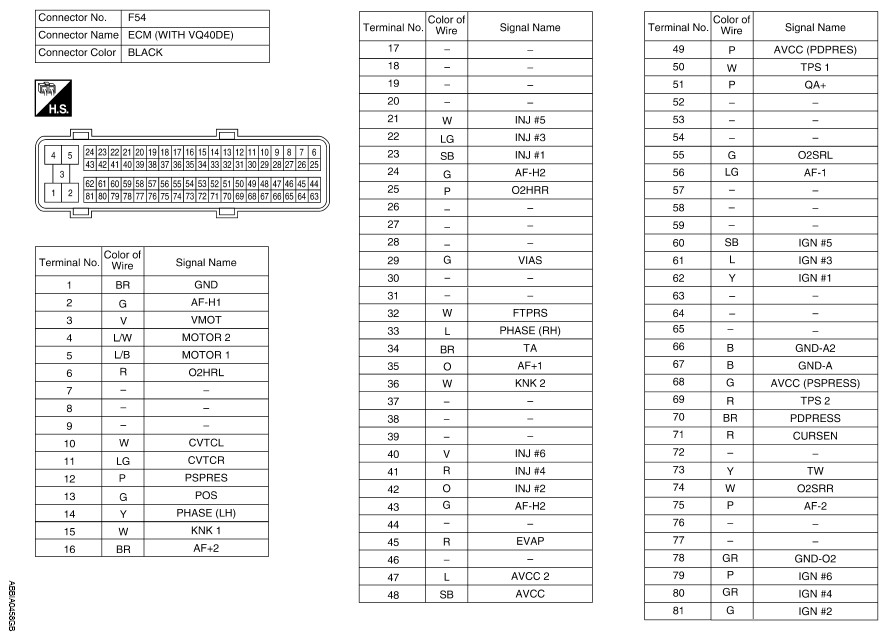

Fig 16: Identifying Engine Control System Connector Terminals (11 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 17: Identifying Engine Control System Connector Terminals (12 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 18: Identifying Engine Control System Connector Terminals (13 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 19: Identifying Engine Control System Connector Terminals (14 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.

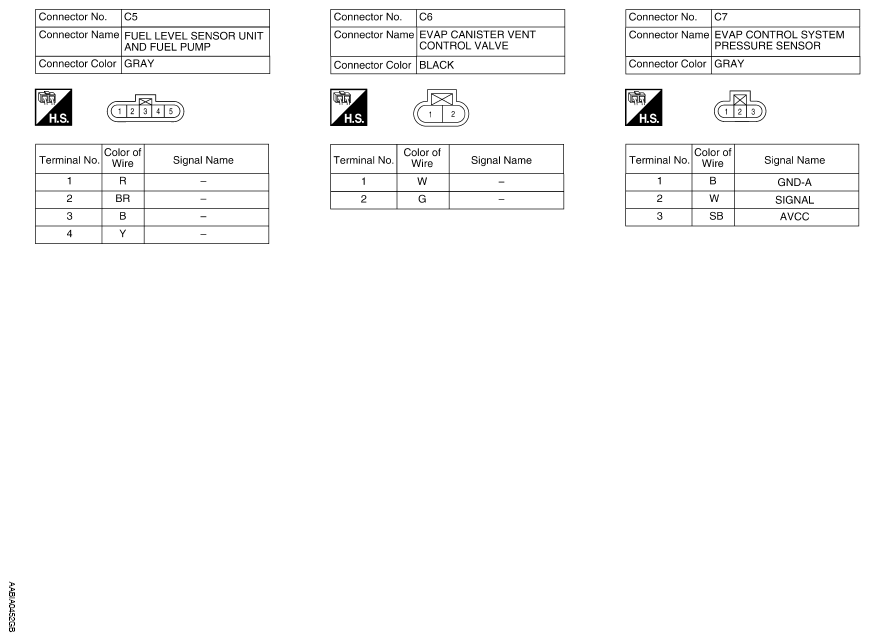

Fig 20: Identifying Engine Control System Connector Terminals (15 Of 15)
Courtesy of NISSAN MOTOR CO., U.S.A.
