Component Inspection: Condenser-1

  1. Turn ignition switch OFF.
  2. Disconnect condenser-1 harness connector.
  3. Check resistance between condenser-1 terminals 1 and 2.
    RESISTANCE REFERENCE CHART

    Resistance Above 1 MΩ at 25°C (77°F)

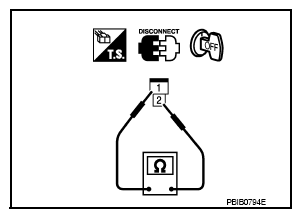

    Fig 1: Checking Resistance Between Condenser-1 Terminals 1 And 2
    G07121486Courtesy of NISSAN MOTOR CO., U.S.A.
