Vacuum Tank

  1. Disconnect vacuum hose connected to vacuum tank.
  2. Connect a vacuum pump to the port (A) of vacuum tank.
  3. Apply vacuum and make sure that vacuum exists at the port (B).

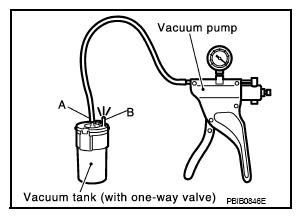

    Fig 1: Identifying Connection Of Vacuum Pump To Vacuum Tank Port
    G07121512Courtesy of NISSAN MOTOR CO., U.S.A.
